You are here : Home > Manfrotto 190CXPRO4 Carbon Fibre Tripod

McAfee Secure sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams

Manfrotto 190CXPRO4 Carbon Fibre TripodBookmark and Share

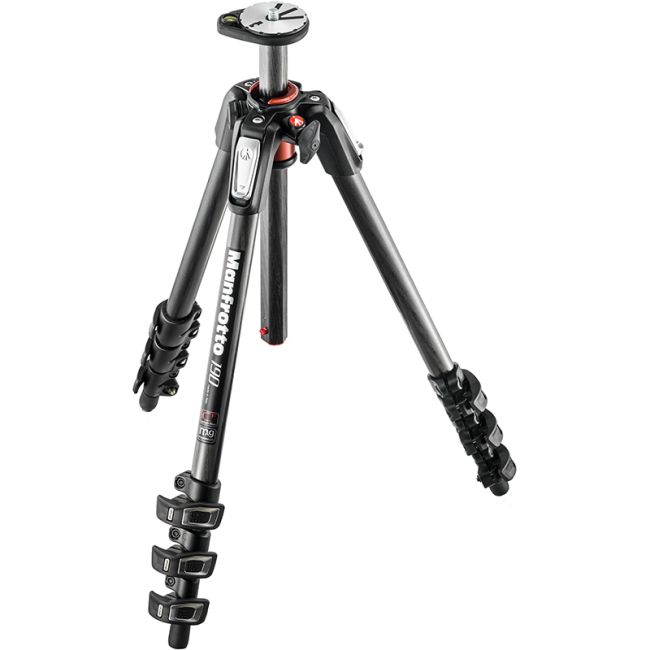

Manfrotto 190CXPRO4 Carbon Fibre Tripod
Click for larger view
Click for rear view

This product is temporarily unavailable, sorry

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Payload capacity of 5 kg
  • 146 cm maximum height
  • 8 cm minimum height
  • patented Q90° system
  • folded length of 50 cm
  • Weight: 1.34 kg
  • 4 leg sections
  • carbon fiber tubing + magnesium castings

Whether you’re just looking for leg replacements or a full tripod, the 190CXPRO4 Carbon Fibre Tripod’s design promotes compactness, rigidity, and function. This is tripod achieves its lightweight design by using materials like carbon fibre, aluminum, and magnesium. This 1.34 kg tripod features the patented Q90° system which allows for quick and stable horizontal-vertical movements even with a payload of up to 5 kg. It has a maximum height of 122 cm, a minimum height of 8 cm and can be folded to a length of 50 cm. Capture things in hard to reach places, this tripod has a 4 leg section that gives you the flexibility to adapt to any terrain. Never miss the opportunity to capture perfection with the help of the 190CXPRO4 Carbon Fibre Tripod. This tripod comes in the color bronze and black.

Product Features in Detail

Q90° column
Q90° quick centre column system. This model include the patented Q90° system. This ingenious system allows the user to move the central column from vertical to horizontal position in just seconds without having to disassemble the column.

ergonomic leg angle selector
This tripod features a newly designed ergonomic leg angle selector. This new angle selector improves the comfort and the precision in use.

bubble integrated on the magnesium top plate
A leveling bubble is integrated on the magnesium top plate. Top plate designed to maximize lightness and resistance.

tubes: 100% Carbon Fibre
Manfrotto tubes are made of 100% carbon fibre in order to reach high quality standards and high levels of performance, rigidity and lightness. Carbon fibre tubes can be very different in quality, depending on the production process and the percent of carbon fibre material present in the tubes. Manfrotto chose to reach the maximum quality using 100% carbon fibre and the pull winding technology (a special production process able to maximise performance, resistance and reliability).

Included in the Box

     Manfrotto 190CXPRO4 Carbon Fibre Tripod
     2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on

Warranty Information

     This Manfrotto 190CXPRO4 Carbon Fibre Tripod comes with 2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty once the product is registered on
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

attachment number 3/8'' screw attachment type
bubble spirit level (no.) 1 number
centre column rapid
Color black color
column tube diameter 25mm
leg angles 25°.46°.66°.89°
legs tube diameter 24.8 . 20.4 . 16 . 11.6 mm
material carbon fiber tubing + magnesium castings
patent patented
suggested dolly 127. 127VS
closed length 50 cm
leg sections 4 number
maximum height 146 cm
maximum height (with centre column down) 122 cm
minimum height 8 cm
safety payload 5 kg
weight 1.34 kg



Be the first to review this product. Write a Review


Related News

Bonus 804RC2 head with Manfrotto 190CX Pro 4 tripod
3/09/2009 10:10:00 AM by paul

Whilst stocks last, we're offering a free Manfrotto 804RC2 head with the Manfrotto 190CX Pro 4 carbon fibre tripod, now only $679.

Don't delay, order yours now!
