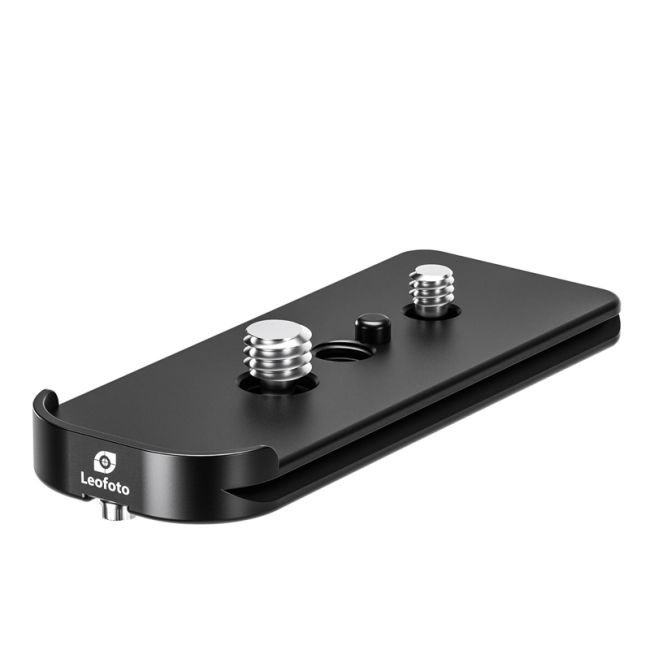

Leofoto CF-06 Arca Lens Foot for Canon RF 200-800 f6.3-9 IS USM Telephoto Lens

The Leofoto CF-06 Arca Lens Foot is a precision-engineered upgrade designed specifically for the Canon RF 200-800mm f/6.3-9 IS USM, delivering enhanced stability, improved balance, and streamlined tripod integration for demanding telephoto shooting.

Crafted from CNC-machined 6061-T6 aluminum, the CF-06 offers exceptional strength and durability in a lightweight, travel-friendly design. Its low-profile 10mm height lowers the center of gravity, providing better balance and control—especially when working with long, heavy lenses.

The foot features a built-in Arca-Swiss dovetail, allowing direct mounting to compatible tripod heads and clamps without the need for additional plates. For added security, integrated safety stop screws help prevent accidental release during use.

Engineered for maximum stability, it incorporates triple anti-twist contact points, ensuring a secure, movement-free connection between the lens and support system.

Versatility is built in with dual mounting threads (1/4″-20 and 3/8″-16), enabling compatibility with a wide range of tripods, monopods, and accessories.

A thoughtful addition is the magnetic slot key storage, allowing quick access to tools for fast adjustments in the field.

Finished with a durable hard-anodized coating, the CF-06 is built to withstand daily professional use while maintaining its sleek appearance.

Compact, robust, and highly functional, the Leofoto CF-06 is an essential accessory for photographers seeking secure mounting, improved handling, and reliable performance when using the Canon RF 200–800mm telephoto lens.

Product Features in Detail

Leofoto CF-06 Arca Lens Foot for Canon RF 200-800mm f/6.3-9 IS USM Telephoto Lens
The Leofoto CF-06 Arca-Swiss Compatible Lens Foot is a precision-engineered upgrade designed specifically for the Canon RF 200-800mm f/6.3-9 IS USM telephoto lens. Built for photographers who demand maximum stability, improved handling, and seamless tripod integration, the CF-06 replaces the standard Canon tripod foot with a low-profile, high-strength solution that enhances both performance and usability in the field.

Machined from a single block of aircraft-grade 6061-T6 aluminium, the CF-06 delivers exceptional rigidity while remaining lightweight and compact—perfect for wildlife, sports, birding, and long-lens landscape photography where stability is critical.

Precision Fit for Canon RF 200-800mm
Unlike generic plates, the CF-06 is custom-designed specifically for the Canon RF 200-800mm lens collar, ensuring a perfect, contoured fit. This eliminates unwanted movement and improves overall balance when mounted to a tripod or monopod.

The plate integrates seamlessly with the lens foot, maintaining the original ergonomics while significantly upgrading mounting performance.

Built-In Arca-Swiss Dovetail
The CF-06 features a fully integrated Arca-Swiss dovetail profile, allowing direct mounting into any Arca-compatible tripod head, clamp, or gimbal—no additional plates required.

This design provides:
- Faster setup and breakdown in the field
- Reduced bulk compared to stacked plate systems
- Improved connection strength with fewer failure points

Anti-Twist Security with Triple Contact Points
To ensure maximum stability, the CF-06 incorporates three anti-twist contact points on the mounting surface. These prevent rotational movement between the lens foot and plate, even under heavy load or when shooting at full 800mm extension.

This is especially important for:
- Long exposures
- Tracking wildlife or birds in motion
- High-resolution sensors where micro-movements are visible

Low-Profile, Lightweight Design
With a slim 10mm profile and compact footprint, the CF-06 maintains a low centre of gravity, improving balance and reducing strain on your tripod head.
- Length: 97mm
- Width: 38mm
- Height: 10mm

This design ensures optimal weight distribution while keeping your setup streamlined for travel and field use.

Integrated Safety Stop Screws
The base of the CF-06 includes safety stop screws to prevent accidental sliding out of compatible clamps, adding an extra layer of security when working with expensive telephoto gear.

Magnetic Tool Storage
A thoughtful addition is the integrated magnetic slot key, neatly stored within the plate itself. This allows for quick installation or adjustment in the field without needing to carry additional tools.

Premium Build Quality
As with all Leofoto products, the CF-06 is finished with a hard-anodised, scratch-resistant coating, ensuring durability in harsh outdoor environments—from coastal conditions to dusty inland locations.

Ideal For
- Wildlife photographers using the Canon RF 200-800mm
- Bird photographers requiring stable long-lens support
- Sports shooters needing fast, secure mounting
- Landscape photographers working with telephoto compression

Why Upgrade to the Leofoto CF-06?
The standard tripod foot on long telephoto lenses is often designed for general use—but the Leofoto CF-06 transforms your lens into a fully integrated, professional support system.

By improving stability, reducing flex, and enabling direct Arca mounting, the CF-06 allows you to get sharper images, faster setups, and greater confidence in demanding shooting conditions.
