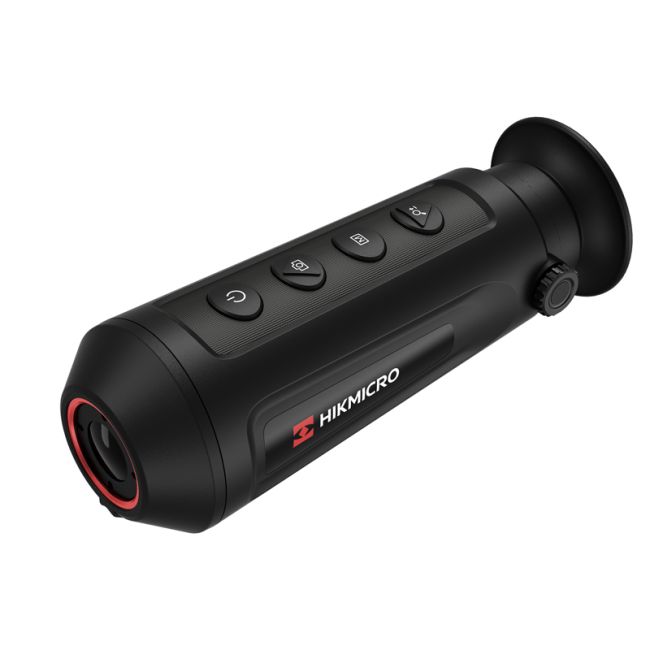

HIKMICRO Lynx Pro LH15 Thermal Imaging Monocular
- 384×288, 12 μm Sensor
- 708 m Detection Range
- 0.4 inch, LCOS, 1280×960 Monitor
- 8 GB Built-In Memory Module
- Long Operating TIme
- Large Digital Zoom
- Smart Range Measurement
- Standby Mode
- 4 Color Palettes
- Video and Snapshot
The Hikvision Lynx Pro LH15 thermal imaging monocular is equipped with a 384×288 12 μm sensor. This sensor provides clear, detailed images in any light condition and allows you to see objects at long distances. The large digital zoom allows you to see even more detail at long distances, making it easy to see objects that are hard to spot with the naked eye.
The built-in monitor allows you to view what the camera sees directly from the unit. It has a 1280×960 resolution, which gives you a clear picture of the area that you are viewing. The large screen can also be used for live video output or playback of recorded video files.
The 8 GB built-in memory module stores up to 4 hours of video footage, so you don’t have to worry about running out of storage space when recording long periods of time or during extended surveillance sessions.
Product Features in Detail
Advanced VOx 12 μm Imaging Sensor
LYNX PRO series carries the new VOx 256x192/384x288 12 μm sensor (less than 35mK), and large aperture lens, which gives a clear picture of the target even in complete darkness.
Long Detection Range
With the advanced imaging sensor and lens, detection range of a 1.7m target can reach up to 1181 m.
Video & Snapshot
Onboard 8GB memory offer storage space for the snapshots and videoclips. Recorded files can be downloaded when connected to PC via USB port.
Wi-Fi Hotspot for Mobile App
Integrated wi-fi module makes T-Vision app as a second display. Users can use digital zoom, video recording, and other features on their phones.
Standby Mode
Designed to save power consumption with the screen off while other features on. The device can be activated in a short time by pressing the button.
4 Colour Palletes
Provides 4 colour palletes for different scenarios
Smart Range Measurement
Measuring distance quickly with high accuracy based on the top and bottom of the target
Large Digital Zoom
Digital zoom up to 8x offers a better focus on small targets from a far distance
Sensor | 384×288, 12 μm |
NETD | Less than 35 mK (25 °C,F#=1.0) |
Focal Length | 15 mm, F1.0 |
Magnification | 1.47 – 11.76 |
Field of View | 17.5°×13.1° |
Detection Range | 708 m |
Manual Focus | No |
Digital Zoom | 1×, 2×, 4×, 8× |
Monitor | 0.4-inch, LCOS, 1280×960 |
Battery Type | Build-in rechargeable Lithium battery |
Wi-Fi | Yes, Hotspot |
Record/Snapshot | Yes |
Operating Time | Up to 7.5 h |
Dimension | 158.3×61×57 mm |
Weight | 310 g |
IP Rating | IP67 |
Operating Temp. | -20°С ~ +55°С |
This product comes with Australian HIKMICRO Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
HIKMICRO Lynx Pro LH15 Thermal Imaging Monocular

SKU: HIKMICRO LH15
UPC: 6974004640064
