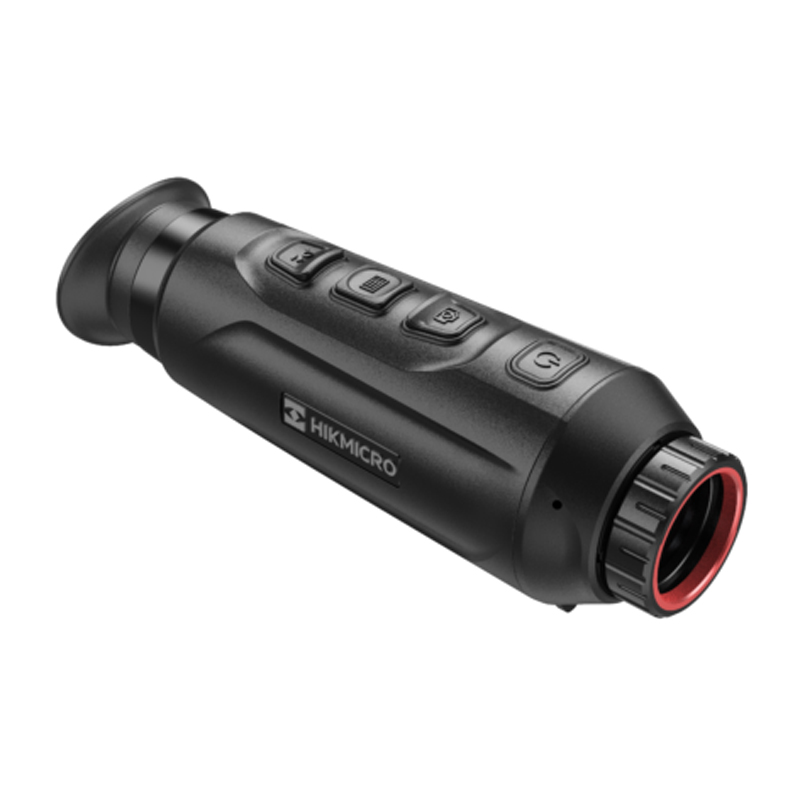

HIKMICRO Lynx 2.0 LH19 Thermal Monocular
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- 384 × 288 resolution with 12μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Replaceable and rechargeable Li-ion battery
- 280 g lightweight, with a compact and ergonomic design
- Up to 6.5 hours of continuous operation
The HIKMICRO Lynx 2.0 LH19 Thermal Monocular is a high-performance thermal imaging device ideal for various applications such as hunting, wildlife observation, surveillance, and search and rescue operations. It offers exceptional image quality, convenience, and durability. The thermal module of the LH19 has an impressive sensitivity of less than 20mK, allowing for highly detailed and accurate thermal imaging even in challenging conditions. This ensures that you can detect and identify targets effectively. With a resolution of 384 × 288 and a 12μm detector, the LH19 provides clear and sharp thermal images. This level of detail allows for better target identification and ensures precise thermal measurements.
The monocular is equipped with a high-resolution 0.39-inch OLED display, featuring 1024 × 768 resolution. This provides a vivid, crisp, and real-time view of the thermal images, enhancing your situational awareness. The LH19 comes with a replaceable and rechargeable Li-ion battery, providing convenient and extended operation time. This allows you to seamlessly replace or charge the battery, ensuring continuous usage in the field. Weighing only 280g, the LH19 is lightweight, making it easy to carry and handle during extended periods of use. Its compact and ergonomic design offers comfortable and user-friendly operation, minimizing fatigue during longer observation sessions. With its efficient power management system, the LH19 is capable of up to 6.5 hours of continuous operation on a single charge. This is particularly useful during lengthy missions or when power sources may be limited.
The HIKMICRO Lynx 2.0 LH19 Thermal Monocular provides exceptional thermal imaging performance with its high sensitivity, resolution, and OLED display. Its replaceable and rechargeable battery, lightweight design, and extended battery life further enhance its usability and convenience. Whether for hunting, wildlife observation, or other applications, the LH19 is a reliable tool for capturing and analyzing thermal information with ease.
Product Features in Detail
Sub-20mK High Sensitivity Brings Detailed and Informative Images
With high sensitivity (NETD<20mK), the HIKMICRO LYNX 2.0 thermal monocular delivers detailed and informative images under all weather conditions.
Double-Charging Method and Fast Boot-On Bring More Lasting Use
- The innovation of HIKMICRO LYNX 2.0 design is reflected in the power supply design. A replaceable and rechargeable battery can support 6.5 hours of continuous running. Moreover, the battery can charge both in the device and the battery charger. Plug and go.
- Fast boot within 3s makes HIKMICRO LYNX 2.0 always ready for use.
Compact Size, Easy to Carry
HIKMICRO LYNX 2.0 is truly pocket-sized - less than 277g, it makes for a compact partner in all scenarios.
Personalized Settings Available to Enhance Visual Experience
The HIKMICRO LYNX 2.0 thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize and improve their visual experience by adjusting settings such as contrast, sharpness, and other personalized options.
Auto Screen Off Darkens the Screen to Save Energy and Increase Battery Time
The integrated algorithm automatically detects HIKMICRO LYNX 2.0’s exact position and activates the auto screen-off function. HIKMICRO LYNX 2.0 will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.
Sharing Your Exciting Moments
The integrated hotspot module makes the HIKMICRO Sight app a second display. Users can adjust the main parameters of HIKMICRO LYNX 2.0 thermal monocular, capture thrilling moments, and share them to social media immediately.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 384x288 |
Frame Rate | 50Hz |
Pixel Interval | 12μm |
Response Waveband | 8μm to 14μm |
NETD | Less than 20 mK (@25°C),F#=1.0 |
Lens (Focal Length) | 19mm, F1.0 |
Detection Range | 900m |
Focus Mode | Focus Ring |
Field of View(H × V), Degrees / m @100m | 13.7°×10.3°/24.0m×18.0m |
Min. Focusing Distance | 1.9m |
Magnification | 1.8x-14.4x (8x) |
Image Display | |
Display | 1024x768, 0.39 inch, OLED |
Contrast Adjustment | Yes |
Brightness Adjustment | Yes |
Palettes | Black hot, white hot, red hot, fusion |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 6mm |
Eye Relief | 20mm |
Diopter (Range) | -5D to +3D |
Tone Adjustment | Cold, Warm |
General | |
Protection Level | IP67 |
Weight | 282g without battery |
Dimension | 172.5mm × 56.0mm× 60.8mm |
Working Temperature | -30°C to +55°C |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Hotspot | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (16 GB) |
PIP | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Audio Recording | Yes |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | 6.5-hour continuous running with CVBS and hotspot function off (@25°C) |
Type-C Power Supply | 5V DC, 2 A |
Supports External Power Supply |
