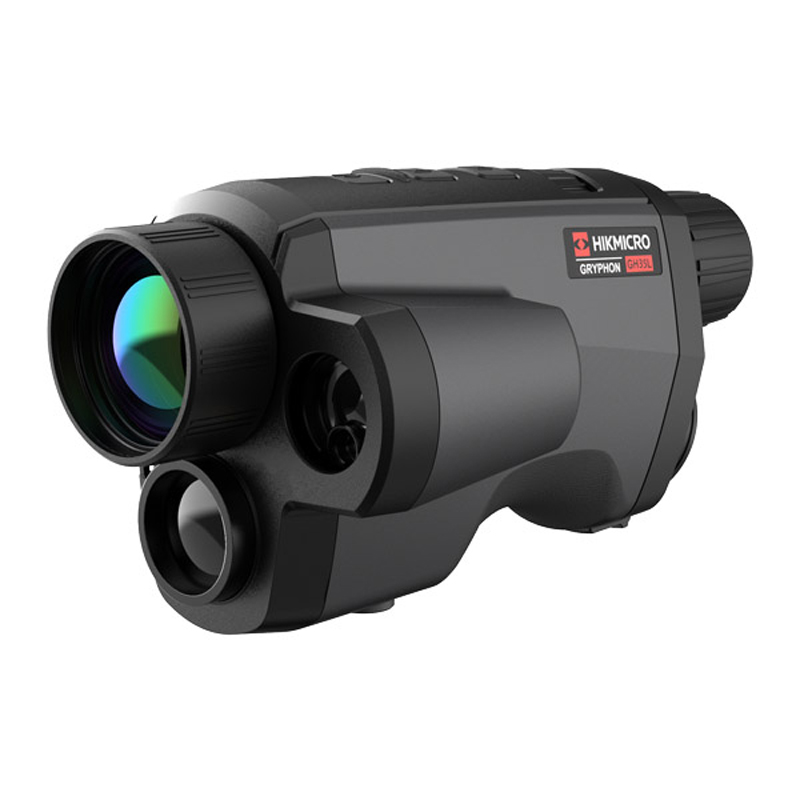

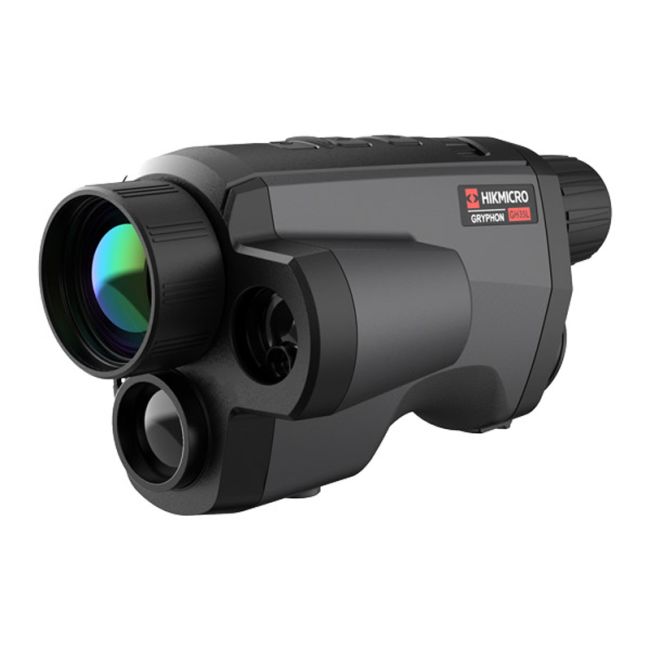

The Gryphon GH35L Thermal Fusion Monocular is a handheld thermal camera with 35 mm Focal Length that allows you to view the world in infrared. It features a 384 × 288 infrared detector, 1920 × 1200 low illumination optical detector and a 1024 × 768 OLED display. With the Gryphon GH35L, you can record video and capture snapshots with its built-in rechargeable lithium battery. It also has a USB-C interface for charging or exporting files.

The Gryphon GH35L has a built-in Wi-Fi hotspot as well as hot tracking capabilities so you can track moving objects within your frame. The device also has bi-spectrum image fusion technology, which allows it to combine both daytime and nighttime images into one single image for easy viewing.This thermal imaging monoculat also features an eye relief distance of 19.5 mm.

Product Features in Detail

Outstanding Image Algorithm
Self-developed image algorithm optimizes image quality, bringing users a high-definition and cleaner picture, highlighting the edge of the object.

New Way to Control
The wheel is used for menu selection and zooming, making the operation more natural. Each rotation delivers an excellent sense of control to users.
Functions
- Wi-Fi hot spot
- Built-in EMMC v5.1 Interface with 16 GB memory for picture snapshot and video recording
- 8x digital zoom
- Type-C Interface
- Control knob.

Battery Operating Time up to 5h
Two batteries and HIKMICRO external battery charger are included in the package box, which give the freedom to observe as long as needed, even a full day.
Battery
- Removable rechargeable lithium battery
- up to 5 hours continuous running with CVBS and Wi-Fi hot spot function OFF (@25°C)

Built-in Precision LRF
Integrated laser rangefinder allows to determine the distance to various scenarios, which play an important role in precision detection of the target.
Range up to 600m.
Accuracy of ±1m.

Specification

Thermal Sensor	384×288, 12 μm
NETD	< 35mK
Lens	35mm / F1.0
Magnification	3.35x
FOV	7.5° × 5.7°
Visible Camera	1/2” Progressive Scan CMOS, 1960*1200
Detection Range	1800 m
Laser Rangefinder	Wavelength: 905 nm, Measurement range: up to 600 m, Accuracy: ±1 m
Frame Rate	50 Hz
Digital Zoom	1×, 2×, 4×, 8×
Display	0.39-inch, OLED, 1024 × 768
Battery Type	One 18650 battery
Operating Time	5 hours
Weight	510g
Ingress Protection	IP67
Operating Temp.	-30°С ~ +55°С

Warranty

This product comes with Australian HIKMICRO Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

In The Box

HIKMICRO Gryphon GH35L Thermal Fusion Monocular
Lens Cleaning Cloth
18650 Battery Charger
USB C Cable
