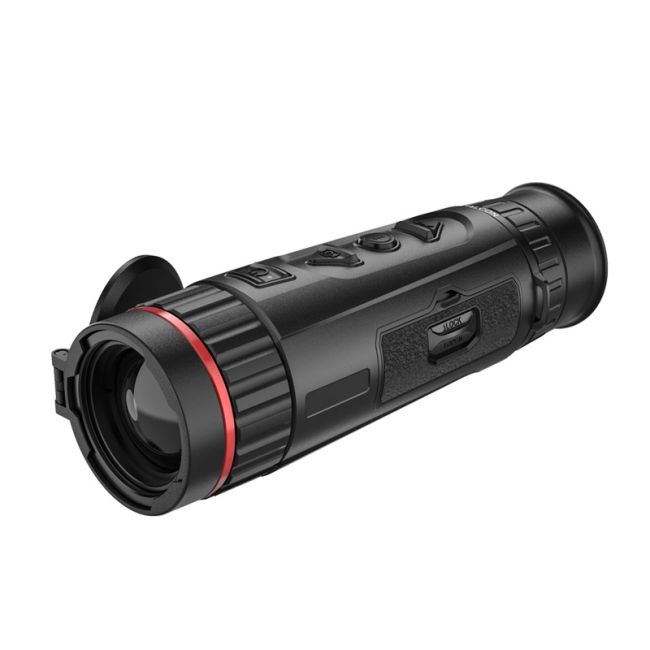

HIKMICRO Falcon FQ35 Thermal Monocular
- 640×512 @ 12μm Resolution
- 1800m Detection Range
- 12.54°×10.05°/22.0m×17.6m Field of View
- 1.82 Optical Magnification
- Black Hot, White Hot, Red Hot, Fusion Palettes
- Auto,Manual,External Correction Flat Field Correction
- 0.39 inch, OLED, 1024 ×768 Display
- Waterproof Rated to IP67
- From -30°C to 55°C Work Temperature
- Built-In Memory Module (64 GB)
- Replaceable and Rechargeable Li-ion Battery
The Falcon FQ35 Thermal Monocular is a compact, lightweight and waterproof thermal monocular. The FQ35 has 640×512 @ 12μm resolution and a 1800m detection range. It also has a 12.54°×10.05°/22.0m×17.6m field of view at 1.82 optical magnification with a 0.39 inch OLED display. This small monocular has an IP67 waterproof rating for use in all weather conditions.
The Falcon FQ35 features auto and manual modes with external flat field correction for image quality enhancement. The FQ35 has built-in memory module (64 GB) that allows you to record the images you see through the device on site so you can review them later at your convenience.
In addition to its compact size, this thermal monocular is very durable as well; it can withstand temperatures from -30°C to 55°C with 90% or Less humidity which makes it great for use in any environment.
Product Features in Detail
Ultra Clear Image. Impressive Detail Recognition
The higher sensitivity in combination with high definition sensor and larger aperture optics provides the best quality, most detailed&high-contrast, informative image in all weather conditions.
Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified easily and clearly.
High definition thermal sensor, up to 640x512 @12μm
Equipped with 12μm high-end thermal sensor and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.
Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.
Image Pro, enhanced self-developed image processing algorithm
Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.
Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.
Perfect component design for intuitive operation and ease-to-use
The component design has been greatly improved according to user feedback, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.
Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It's perfect for constant and often hard use.
Replaceable and Rechargeable High Capacity Battery, Not-stop Observation
On one battery pack the device can run up to 6 hours. With the convenient replaceable feature, another battery unit can be used as the spare one which provides enough power for non-stop operation. Besides, any ordinary power bank connected via a Type-C interface can be used as an external power supply.
Long detection range up to 2600m and very large field of view up to 22m@100m
Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.
Powerful digital zoom, up to 8x
With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Frame Rate | 50Hz |
Pixel Interval | 12μm |
Response Waveband | 8μm to 14μm |
NETD | Less than 20 mK (@25°C),F#=1.0 |
Detection Range | 1800m |
Field of View(H × V), Degrees / m @100m | 12.54°×10.05°/22.0m×17.6m |
Min. Focusing Distance | 5.0m |
Aperture | F0.9 |
Digital Zoom | 1×,2×,4×,8× |
Focal Length | 35mm |
Resolution | 640×512 |
Optical Magnification | 1.82 |
Image Display | |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
FFC (Flat Field Correction) Mode | Auto,Manual,External Correction |
Monitor | 0.39 inch, OLED, 1024 ×768 |
General | |
Protection Level | IP67 |
Weight | 535g (1.18 lb) |
Dimension | 200 mm x 78 mm x 68 mm (7.87" × 3.07" × 2.67") |
Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Hotspot | Yes |
Standby Mode | Yes |
Storage | Built-in memory module (64 GB) |
Hot Track | Yes |
Power Supply | |
Power | 5V,1.95W |
Battery Type | Replaceable and rechargeable Li-ion battery |
Battery Operating Time | approx. 7 hours continuous running with CVBS and hotspot function off (@25°C) |
This product comes with Australian HIKMICRO Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
