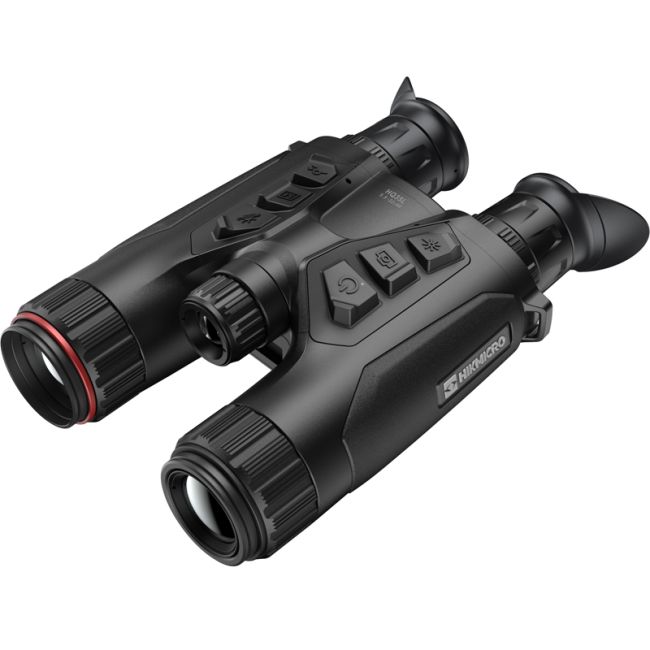

Habrok 4k HQ35L Multi-Spectrum Binocular
- 640 × 512 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 20mK
- 35 mm, F1.0 lens with thermal detection range up to 1800m
- 3840 × 2160 4K ultra high-resolution CMOS detector
- 1920 × 1080 resolution 0.49-inch OLED display
- Two 850 nm & 940 nm replaceable IR illuminators and Laser Rangefinder of 1000m distance
- 8h+ continuous operation time with replaceable battery
- 798g lightweight, with a compact and ergonomic design
The Habrok 4K HQ35L Multi-Spectrum Binocular is a high-performance device designed for demanding outdoor and tactical scenarios. Combining cutting-edge thermal imaging, a 4K CMOS detector, infrared illuminators, and a laser rangefinder, these binoculars provide unmatched precision for surveillance, hunting, or exploration. It has a thermal detector with 640 × 512 resolution @ 12 μm for highly detailed thermal imaging. Equipped with a thermal module with NETD < 20mK, ensuring reliable performance even in extreme conditions. The 35 mm, F1.0 lens delivers thermal detection capabilities up to 1800m, offering exceptional clarity at long distances. This binocular features an ultra-high resolution 3840 × 2160 4K detector, providing unmatched details in visible light imaging. A 1920 × 1080 resolution, 0.49-inch OLED display ensures precision visuals for comfortable long-term use. Dual, replaceable IR illuminators (850 nm & 940 nm) enhance visibility in low-light environments, perfect for nighttime applications. Integrated 1,000m distance laser rangefinder for precise distance measurements, ideal for scouting and tracking targets. The battery provides operational time of over 8 hours of continuous use with a replaceable battery, ensuring minimal downtime during fieldwork. Weighs only 798g, making it portable and ergonomic for extended operation. Highly sturdy and optimized for ease of handling in rugged environments. With its advanced technology and ergonomic design, the Habrok 4K HQ35L combines versatile imaging with precision tools to meet the needs of professionals and enthusiasts alike. Whether you’re operating in the field or pursuing outdoor hobbies, this multi-spectrum binocular delivers extraordinary performance, reliability, and comfort.
Product Features in Detail
HQ35L 5.5-22x60 Multi-Spectrum Binocular
HIKMICRO HABROK 4K HQ35L 5.5-22x60 multi-spectrum binocular is equipped with an 20 mK NETD, 640 × 512 thermal detector @35 mm thermal lens and an advanced 4K digital detector with 60 mm lens, ensuring perfect image quality and detail recognition in various weather and light conditions. Combined with a 1000 m Laser rangefinder and two replaceable IR emitters, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.
Thermal & Night Vision
The combination of thermal and night vision on one device allows the user to have quick detection and fast recognition with the press of a button.
Laser Range Finder
The inclusion of a 1000m Laser Range Finder gives the user the knowledge of target distance at all times.
4K Digital Sensor
The Habrok 4k HQ35L comes with an impressive 4k day & night sensor allowing for extremely long target identification with crystal clear imagery.
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 35 mm, F1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1800 m |
| Min. Focusing Distance | 3.5 m |
| Magnification | 3.0 × to 22.0 × (7.3 ×) |
| Field of View(H × V), Degrees / m @100 m | 12.5° × 10.1° / 22.0 m × 17.6 m |
| Optical Module | |
| Image Sensor | 1/1.8'' Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Focal Length | 60 mm, F2.2 |
| Min. Working Distance | 3 m |
| Focus Mode | Focus Ring |
| Magnification | 5.5 × to 22.0 × (4 ×) |
| Field of View (H × V), Degrees / m @100 m | 7.3° × 4.1° / 12.6 m × 7.2 m |
| Smart IR | Yes |
| IR Illuminator Wavelength | 940 nm (default) and 850 nm (replaceable) |
| Viewing Range at Night | 400 m |
| Replaceable IR Illuminator | Yes |
| Image Display | |
| Display | 0.49 inch, OLED, 1920 × 1080 |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 8 mm |
| Eye Relief | 15 mm |
| Diopter (Range) | -5 D to +3 D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, warm |
| Contrast Adjustment | Yes |
| Zoom Pro | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Digital Magnetic Compass | Yes |
| GPS | Yes |
| Local Album | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion 18650 Battery |
| Battery Operating Time | ≥8 h (25°C, with hotspot off) |
| Type-C Power Supply | 5 V DC, 2 A |
| Support External Power Supply, Support Direct Charging | |
| General | |
| Protection Level | IP67 |
| Dimension | 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75") |
| Working Temperature | -30°C ~ +55°C |
| Weight | 798 g without battery |
| Interpupillary Adjustment Range | 60 mm to 74 mm |
| Mounting Adapter | 1/4“-20-UNC |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 1000 m |
| Measurement Accuracy | ±1 m |
| Min. Measuring Range | 10 m |
