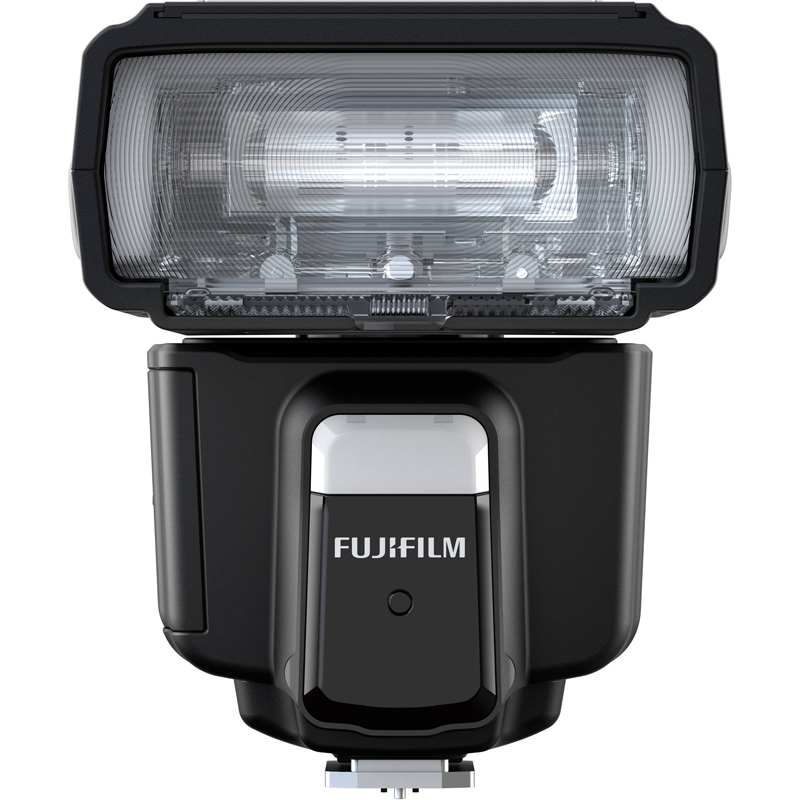

FujiFilm EF-60 TTL Flash


Stock levels may vary, if your order is urgent, please enquire about availability

Free Shipping for Orders over $98* (*excludes bulky items)
  • X-Series and GFX System Wireless Control
  • Hot-Shoe Mount Flash
  • Guide Number 197' at 200mm Setting
  • Nissin Air System Wireless Compatibility
  • Recycle Time of 3 sec at Full Power
  • High Speed Sync Function
  • Shutter Speed Up To 1/8000 Seconds

The X-Series and GFX System Wireless Controlled FujiFilm EF-60 TTL Flash iyour unique solution in optimizing light while on shooting locations. This TTL compatible hot-shoe mount flash offers a guide number 197' at 200mm setting and high speed sync function to a shutter speed up to 1/8000 seconds. It is capable of recycle time of 3 sec at full power and is built to be with Nissin Air System Wireless Compatibility.

Product Features in Detail


FUJIFILM's first, radio controlled wireless clip-on flash
A clip-on flash offering a powerful output which also allows wireless controls are now ready to support our customers. In addition to and with the combination of its cameras and lenses, the EF-60 will assist GFX/X series customers to challenge broadening their creative works using lights.

Powerful and multiple functions packed in a compact body
This clip-on flash offers powerful output with the maximum Guide Number of 60 (ISO100·m and flash coverage setting at 200mm) despite its compact form factor. It is portable yet delivers ample output, making it easy to accommodate any shooting conditions.

Its head can be manually adjusted by 90 degrees upward or by 180 degrees either left or right so that flash light can be bounced off a wall or ceiling to cast natural light and avoid harsh shadows.

The flash coverage ranges from 24mm to 200mm*1 and can be extended to approx. 16mm*1 when the built-in diffuser is used. It also features the Auto Zoom function, which adjusts its coverage according to the angle of view of the mounted lens. The function prevents light fall-off at edges and insufficient overall illumination, while achieving light distribution in line with flash coverage to mitigate excess output.

The EF-60 supports the TTL mode for automatically attaining the optimum exposure as well as the Manual mode that allows users to manually adjust output.

It also supports FP High-Speed Sync, allowing flash synchronization at a shutter speed as fast as 1/8000 sec., which is faster than a camera’s flash sync speed. This gives greater freedom in flash photography, for example, facilitating daylight sync with the aperture wide open.

Hybrid. Triggers with both radio controlled and optical wireless communication
The EF-60 has a built-in receiver for the radio controlled wireless communications system called NAS (Nissin Air System)*2, and can fire as a remote flash when combined with the FUJIFILM Wireless Commander EF-W1, to be released at the same time, or the Nissin Air10s*3. This allows you to place this flash anywhere, even in daylight outdoors or in a location with obstacles blocking line-of-sight.

The EF-60 also features the optical wireless mode to support remote trigger in optical communications, using the FUJIFILM EF-X500 as the commander unit*4. This enables the establishment of a stable wireless system even in conditions with less-than-desirable radio environment.

Max. Guide No. approx. 60 (ISO 100·m)
When focal length coverage is set to 200mm in 35mm format
The Coverage (zoom) 24mm – 200mm (in 35mm format)
16mm (in 35mm format) when using built-in diffuser
Bounce Position Up: 90°, Down: 0°, Left: 180°, Right: 180°
Color Temperature approx. 5,300K (at full flash)
FP (High Speed Sync) emmission Compatible
Exposure Control, Flashing method TTL, Manual control
EV compensation +/-2EV in increments of 1/3 of EV
Manual mode*5 1/1 – 1/256 with 1/3EV step selection (flashing)
1/1 – 1/32 with 1/3EV step (FP(HSS) emission)
Repeating flash
Charging Recycling Time (Full flashing, fully charged) approx. 3 sec. (NiMH battery)
No. of flashes (Full flashing, fully charged) approx. 170 times (NiMH battery)
Wireless remote function
Communication method 2.4GHz NAS*2
Action mode Remote (TTL, Manual, OFF)
Compatible master device FUJIFILM EF-W1, Nissin Air10s*3
Communication Channel Compatible with channel 1 to 8 of wireless commander
Remote Group A, B, C
Optical communication function
Communication method Optical pulse method
Compatible master device FUJIFILM EF-X500
Action mode Remote (TTL, Manual, OFF)
Communication Channel Compatible with channel 1 to 4 of master flash
Remote group A, B, C
Power Source 4 x AA batteris (NiMH battery, Alkaline battery)
External Power Source
Dimension (Height x Width x Depth) approx. 97mm x 73mm x 113mm
Weight approx. 300g (wthout battery)
