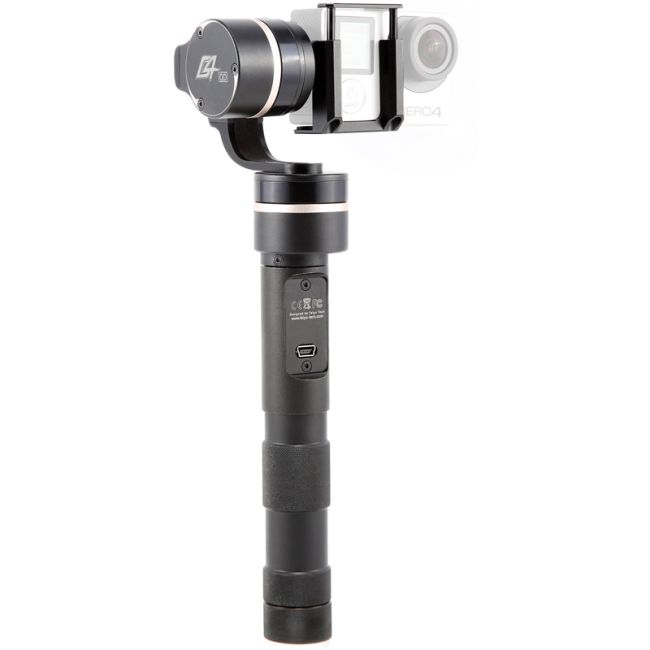

Feiyu Tech G4 QD 3 Axis Gimbal for GoPro HERO
- 3-Axis Stabilization
- Quick Mount and Dismount
- For GoPros or Cameras 1.3 to 1.8" Tall
- Fixed Axes and Pan/Tilt Following Modes
- 320° Pan/Tilt Rotation
- 100° Roll Rotation
- Single-Button Operation
- Battery Level Indicator Light
- Accommodates LCD Touch BacPac
- Includes Four Batteries and Charger
- Optional Gimbal Remote Control
- 12 Months Genuine Australian Warranty
The Feiyu Tech G4 QD 3 Axis Gimbal provides free floating shots with 3-Axis Stabilization. It can be used for GoPros or Cameras 1.3 to 1.8" Tall and provides a quick mount and dismount specification. The gimbal also features fixed axes and pan/tilt following modes that you can choose from and 320° pan/tilt rotation plus a 100° roll rotation with just a single-button operation. The battery level indicator light lets you know when it's time to recharge the batteries using the included four batteries and charger. G4 QD supports an optional gimbal remote control.
Product Features in Detail
Synergy Between Power and Accuracy
The Feiyu G4 utilizes brushless motors to provide camera stabilization. All movements are being carefully analyzed and full-axis compensation is being made in real-time. No matter how extreme your action may be, the Feiyu G4 got you covered from every angle.
Deeply integrated design provides advanced stabilization while keeping the Feiyu G4 as portable as possible. Taking stabilized footage has never been easier.
Compatible with GoPro HERO4/ 3+/ 3 (with optional mounting space for GoPro LCD BacPac) and other cameras with similar dimensions.
The Feiyu G4 can also provide power to the camera through an optional power cable.
Compatible with our optional remote control, which allows adjustment to panning/tilting/rolling angles and other calibration settings.
Ease-of-use is the key to a successful user interface. A single-button control scheme presents an elegant way to switch between all operating modes while holding the gimbal in one hand.
Dismantle Made Easy. Maximizes Compatibility.
Brand-New Clamp Design. One-Second Mount and Dismount. Why limit yourself to only one Hero? When you can mount them fast?
Made With Premium Material Ergonomic design minimizes arm fatigue.
Three Unique Operating Modes.
There is always one that fits you
Panning Mode.Camera is permitted to pan left or right. Vertical tilts or rolls are restricted.
Panning/Tilting Mode.Camera is permitted to pan left or right and tilt up and down. Rolls are restricted.
Full-Axis-Lock Mode.Camera stays in its current orientation. All panning, tilting and rolls are restricted.
Extend The Reach. Expand Your View.
Extension pole allows the user to see from a new perspective.
Optional extended battery pack
Increase the usage time with optional extended battery pack.
|Size and weight||Positive long 230.5mm * 69.3mm * 80.3mm side|
|weight 265g without battery and camera|
|Supports camera||Applicable to a height of 33mm-46mm motion camera (support to load the back screen)|
|Installation software requirements||Windows XP SP3; Windows 7;|
|Operating Voltage||6.0v-17v standard 8.4v|
|Static attitude tracking accuracy||Min ± 0.01 ° Max ± 0.05 ° Standard ± 0.02 (pan and tilt still)|
|Motion Pose Tracking Accuracy||Minimum ± 0.1 ° Max ± 0.5 ° Standard ± 0.2 (Motion Overload <2G)|
|Motor overload current protection||0.8A|
|Motor overload protection time||60s|
|Motor output maximum torque response time||330us|
|The pitch angle can be rotated||Minimum -160 ° (down) Maximum + 160 ° (up)|
|Angle of rotation||Minimum -50 ° maximum + 50 °|
|Pitch follow rate||Min 2 ° / s max 70 ° / s|
|Heading angle range||The minimum -160 (left) to +160|
|Heading angle range||The minimum -50 maximum +50|
|Heading speed||Minimum 3 ° / s maximum 150 ° / s|
G4 QD 3 Axis Gimbal for GoPro HERO
4 x 900mAh 18350-Type Batteries
12 Months Genuine Australian Warranty
