Elgato Stream Deck Studio
- 32 Programmable LCD Keys and Encoder Dials
- Integrates with Broadcast Equipment
- 1 RU Rackmount Stream Deck
- X-Routing, SNMP Monitoring, and KVM Control
- USB-C Inputs and PoE+ Support
- For Broadcast & Post-Production Studios
- Works within IP & SDI Environments

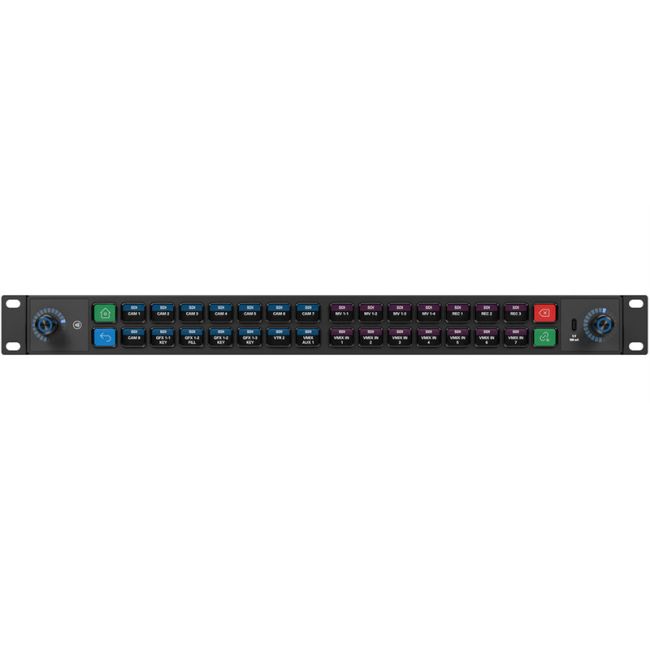

The Elgato Stream Deck Studio is a professional, rack-mountable control surface engineered to bring enterprise-tier macro and tactile physical controls to broadcast television trucks, post-production suites, and live event master control rooms. Moving far beyond traditional consumer desktop setups, this device mounts directly into industry-standard racks to interface with major broadcast ecosystems.
Built as a rugged, 19-inch 1 RU hardware unit, the Stream Deck Studio features 32 highly customizable LCD keys flanked by two rotary encoders (dials) for precise parameter adjustments like audio gain, zoom speed, or video playhead scrubbing. By utilizing deep network protocols, it operates natively over LAN, integrating modern IP workflows with legacy SDI architectures.
Product Features in Detail
Broadcast-Grade Tactile Interface
Equipped with 32 vibrant LCD keys and dual rotary dials, the control surface provides instantaneous visual confirmation and feedback. Operators can color-code custom groupings and program tactile rotary parameters to streamline time-sensitive operations.
Deep Software & Bitfocus Integration
The system is designed to work in tandem with Bitfocus Companion (available as a free download) and Bitfocus Buttons (license-based). This integration provides a grid-based workspace that mirrors the physical hardware layout, making complex network routing design feel straightforward.
Unified Hybrid Production Support
Stream Deck Studio operates as a bridge in mixed hardware environments. It connects and controls both cutting-edge IP-based network gear and legacy SDI routing switchers, allowing facilities to upgrade their control setups without replacing older infrastructure.
Automated Network Discovery
When connected to a local area network (LAN), the device utilizes mDNS and NMOS protocols to instantly identify and configure itself with nearby hardware. This feature drastically reduces setup time in mobile broadcast trucks and dynamic studio locations.
Enterprise-Grade Security via NFC
Support fast crew shifts with built-in Near Field Communication (NFC) chip reader technology. Operators can wave personal NFC badges to load distinct, custom button profiles and key mappings instantly while maintaining security protocols.
Dual Power & Infrastructure Failovers
Engineered for 24/7 continuous operations, the unit can be powered using standard PoE+ switches to run data and power down a single network line. For rooms without network power, the device can run via a standalone USB-C power supply while maintaining independent network connections.
| Controls | 32x Programmable Key |
| 2x Dial | |
| Display | 32x Color LCD |
| OS Compatibility | Windows 10 or Later |
| macOS 13 or Later | |
| USB I/O | 1x USB-C Female Input/Output (System Connection/Software Updates) |
| 1x USB-C Female Input (Power Input) | |
| Network I/O | 1x 10/100 Mbps Ethernet (Supports PoE) |
| Power Source | PoE (Not Included), USB (Not Included) |
| Input Power | 9 VDC at 3 A |
| Power Consumption | 15 W |
| Dimensions | 17.6 x 3.1 x 1.7" / 447 x 80 x 44 mm |
| Weight | 2 lb / 895 g |
This product comes with Limited Lifetime Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Elgato Stream Deck Studio
Rackmount Bracket Set
Screw Set
SKU: Elgato 10GBO9901
