DJI Zenmuse Z15 Sony A7
- Stabilizes Camera that Keeps Levelled Shot
- Holds Sony A7 Camera
- ±0.01° Control Angle Accuracy
- Tilts up to +50°:/-140° and Rolls up to ±40°
- Variable Speed 360° Panning
- Remote Shutter Release Operation
- Integrated IMU and Infrared Modules
- AV Pass-Through for Video Transmitter
- Three Selectable Control Modes
- Compatible with A2 and WooKong-M Flight Controllers
- Used for Octo-Rotor Like S1000 and S800
- Genuine 12 Months Australian Warranty

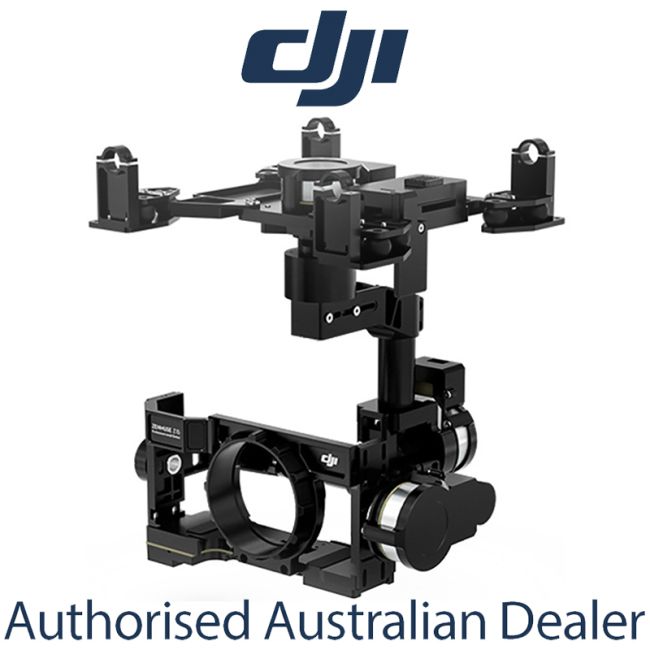

The Zenmuse Z15 is a revolutionary 3-axis gimbal system with 360° continuous rotation. It stabilizes camera that keeps levelled shot and capable of having a wide view thanks to its +50°:/-140° tilt and ±40° roll and variable 360° panning speed. The gimbal has ±0.01° control angle accuracy with integrated IMU and infrared modules to guarantee an effortless yet precise control. It also features remote shutter release operationwherein the shutter can be controlled remotely via infrared. Zenmuse Z15 Sony A7 is made solely for use with Sony A7 and compatible with A2 and WooKong-M flight controllers. It is mainly used for octo-rotors like S1000 and S800.
Product Features in Detail
ACHIEVE LOW-LIGHT AERIAL CREATIVITY
Expand your creative horizons by flying with your Sony α7s and α7r. For the first time, capture beautiful footage in low-light environments with the reliability of a DJI 3-axis aerial stabilization gimbal, the Zenmuse Z15-A7.
UNMATCHED ZENMUSE PRECISION AND STABILITY
Zenmuse gimbals are trusted by professional filmmakers and photographers around the world because of their stability, precision, and reliability. We pour all of our experience in aerial filmmaking into every gimbal, giving you perfect stability in any flight conditions.
STREAMING VIDEO
Engineered and balanced specifically for the Sony α7s and α7r, this lightweight system works with your current tools seamlessly. A HDMI-AV/HD video output module enables live streaming and remote shutter control, and you can switch between AV or HDMI output easily.
COMPLETE 360° CONTROL
Experience unhindered camera control at a maximum yaw of ±360°, pitch of +50°/-140°, and a roll of ±40°. With precision control of ±0.01°, you are directing your shots and capturing exactly what you need.
FULLY COMPATIBLE SOLUTION
Fly with a DJI S900 or the S1000+ and an advanced flight controller, such as the A2 or WooKong-M, for a seamless, professional experience. Connect the DJI Lightbridge HD digital video downlink or an iOSD Mark II and a 5.8G video link for even more tools on set.
MULTIPLE CONTROL MODES
Choose the right level of camera maneuverability for every situation. Switching between orientation-locked, non-orientation-locked, and FPV (First Person View) controls is quick and easy.
GIMBAL SERVO DRIVE MODULE
The Gimbal Servo Drive Module dramatically improves the control and stability of the gimbal while maximizing torque and minimizing vibration. The module is able to achieve such perfection because it has been fine-tuned to the weight and balance of the individual camera that the gimbal was built to support.
BUILT-IN INDEPENDENT IMU MODULE AND INFRARED MODULE
A new stabilizing algorithm provides more stability than ever before, and the extremely precise induction devices give you effortless attitude control. Because the IMU is built in, your gimbal requires no extra equipment or wiring, reducing its overall weight and allowing you to start shooting in no time at all. By attaching an infrared receiver, remote shutter control capability can be added to the Z15-A7 gimbal system, letting you command the camera during flight.
Included in the Box
DJI Zenmuse Z15 Sony A7
Gimbal Control Unit (GCU)
Lens Retaining Ring
Lens Retaining Ring Shim
4 x Mounting Bracket
Camera Mount Screw
Lens Retaining Ring Screw
Gimbal Video Power Cable
Micro - USB Cable
CAN-Bus Cable
Spare Package
Genuine 12 Months Australian Warranty
Warranty Information
This DJI Zenmuse Z15 Sony A7 comes with Genuine 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
General |
Built-In Functions
|
1. Three Modes
|
· Orientation-locked control | ||
· Non orientation-locked control | ||
· FPV mode (Reset) | ||
2. Built-in independent IMU module | ||
3. DJI gimbal special servos drive module | ||
4. HDMI-HD/AV module | ||
5. Infrared remote control module | ||
6. Wireless video transmission supported | ||
7. Camera shutter/video recording control supported | ||
8. Wide range voltage input supported | ||
9. S-Bus Receiver supported | ||
Peripheral |
Supported Camera
|
Sony ILCE-7S; Sony ILCE-7R
|
Supported Lens
|
Sony FE 35 mm f2.8 ZA
|
|
GCU Input Power
|
4S~12S LiPo (Recommend 6S if with S1000+)
|
|
Control Requirement
|
At least four spare receiver channels
|
|
Assistant Software System Requirements
|
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
|
|
Mechanical & Electrical Characteristics |
Working Current
|
Static current: 200 mA (@25 V)
|
Dynamic current: 400 mA (@25 V) | ||
Locked-motor current: 4 A (@25 V) | ||
Operating Temperature
|
-10°C ~ 50°C
|
|
Weight
|
1.3 Kg
|
|
Dimensions
|
210mmX204mmX246mm
|
|
GCU Weight
|
63g
|
|
GCU Dimensions
|
64.2 mm ×34.1mm ×19.5mm
|
|
Working Performance |
Load Weight (Reference Value)
|
622 g(@Sony ILCE-7S with Sony FE 35 mm f2.8 ZA, battery, lens hood and SD Card)
|
580 g(@Sony ILCE-7R with Sony FE 35 mm f2.8 ZA, battery, lens hood and SD Card) | ||
Angular Vibration Range
|
±0.01°
|
|
Maximum Controlled Rotation Speed
|
Pan axis: ±130°/s
|
|
Tilt axis: ±130°/s | ||
Roll axis: ±30°/s | ||
Controlled Rotation Range
|
Pan axis control: ±360° continuous rotation
|
|
Tilt axis control: +50°/-140° | ||
Roll axis control: ±40° |
