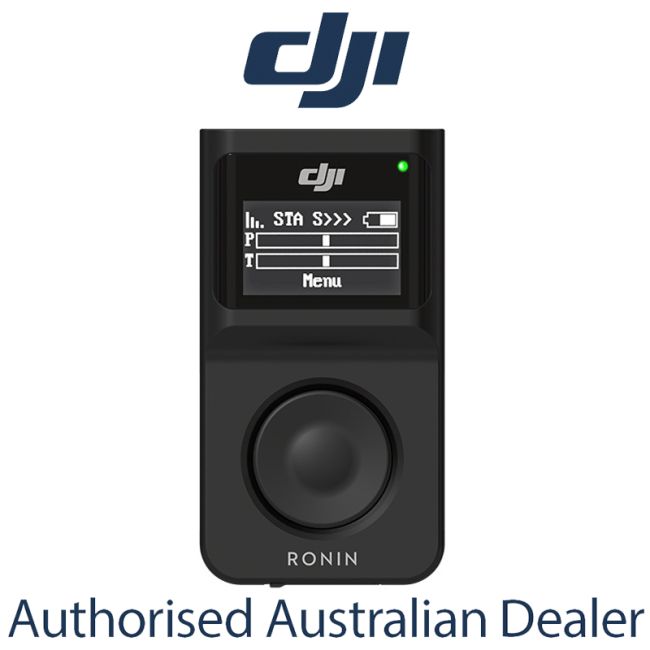

DJI Ronin M Wireless Thumb Controller
- Operate Using Just Your Thumb
- Adjusts Camera Angle Manually
- Clamps Onto Handle for Single-Operator
- Up to 18 Hours Battery Life
- Works Wirelessly Up to 200'
- Save Preset Settings
- OLED Display for Menu / Status
- USB for Charging Plus Firmware Updates
- Used With The Ronin Controller
- Genuine 12 Months Australian Warranty
Product Features in Detail
WIRELESS THUMB CONTROLLER
Simple to set up and use, the DJI Ronin Wireless Thumb Controller makes controlling your Ronin or Ronin-M easier and more intuitive, even with only a single operator. Capture shots that are difficult or impossible now, and start using your gimbal to its full potential.
COMPLETE CONTROL BY THUMB
A custom-made pressure sensitive stick allows you to quickly change the settings, speed, and direction of your gimbal, all at the flick of your thumb. Control where your camera is facing and access advanced settings including calibration and channel settings. Making changes is even faster than when using the Ronin remote controller or mobile app, and can be done during any of your shots.
RONIN AND RONIN-M COMPATIBLE
The wireless thumb controller is perfectly compatible and ready to be used with both the DJI Ronin and Ronin-M. However an additional external receiver is required for use with the Ronin, while the Ronin-M’s built-in receiver allows use without any additional parts.
FAST SETUP AND MOUNTING
Simply link the Thumb Controller to your gimbal, and you are ready to go. The Thumb Controller clamps easily to the handle bars or can be placed anywhere you like, no tools required.
CLEAR OLED SCREEN
View your current status and click through menu options by using the bright, clear OLED screen. This compact yet powerful display makes accessing the basic functions of your Ronin or Ronin-M easy.
LONG BATTERY LIFE AND RANGE
The Thumb Controller’s built-in rechargeable battery gives you up to 18 hours of power per charge, enabling you to use it all day without worry. If you prefer to control your Ronin or Ronin-M from a distance, the nearly 200 foot (60 meter) transmission range makes capturing unique shots easy.
QUICK CALIBRATION ONBOARD
You can now perform an Auto Tune Stability or even calibrate the gimbal without being tethered to your mobile device. Simply enter the main menu in the thumb controller and select Cali System or Auto Tune under the Gimbal menu item.
FUTURE UPGRADES
A Micro-USB port on the Thumb Controller allows you to download and apply future software updates and recharge the integrated battery.
Included in the Box
DJI Thumb Controller for Ronin M
Quick Release Accessory Mount
Micro-USB Cable
Step-Down Adapter
External Receiver
4-Pin Cable
Adhesive Tape
Genuine 12 Months Australian Warranty
Warranty Information
This DJI Thumb Controller for Ronin M comes with Genuine 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Supported Devices | Ronin, Ronin-M |
Operating Frequency | 2.415 GHz ~ 2.454 GHz |
Working Current | <100 mA @ 3.3 V |
Communication Distance | 200 ft. (60 m) |
Battery Life | 18 h |
Standby Life | 20 h |
Operating Temperature | -20 °C ~ 55 °C |
Battery Type | LiPo |
Battery Voltage | 3.7 V |
Battery Capacity | 1150 mAh |
Charge Time | 2 h |
Weight | 50 g |
Size | 2.7×1.4×0.9 in. (68×36×23 mm) |
Mounting Bracket Diameter | 1.0 in. or 1.2 in. (25 mm or 30 mm) |
Display | White OLED, 0.96 inch, Dots: 128×64 |
