DJI S900 + A2 + Z15 A7 Gimbal

THIS PRODUCT IS TEMPORARILY UNAVAILABLE, SORRY
A$0.00
Out of stock
Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
  • DJI Price Match Guarantee – Click here for more info
  • Spreading Wings Hexacopter
  • Comes With A2 Flight Control System
  • Zenmuse Z15-A7 Gimbal for Sony a7S / a7R
  • Compatible with Zenmuse Z15 Gimbal
  • Supports A2 and WooKong-M FCs
  • Up to 18 Pound Total Take-Off Weight
  • Collapsible Frame and Folding Propellers
  • Retractable Landing Gear
  • Low Gimbal Mounting with Dampening
  • Up 18 Minutes Flying at 12,000mAh
  • Carbon Fiber Frame Arms
  • 12 Months Australian Warranty

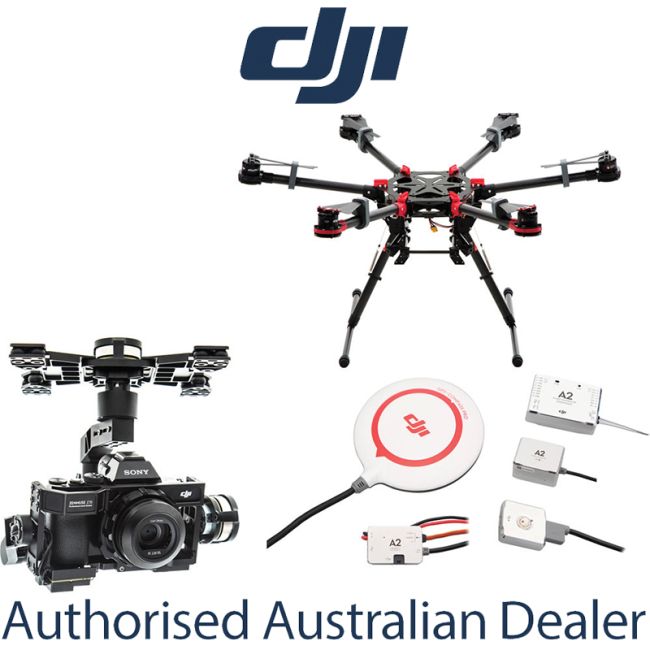

The DJI S900 is the Spreading Wings Hexacopter made to be compatible with Zenmuse Z15 gimbal to capture aerial still and video images. Now the package also comes with A2 flight control system, an Advanced Stabilization Controller for Multi-Rotor Platforms plus Zenmuse Z15-A7 Gimbal for Sony a7S / a7R that you can use to mount the Sony a7S or a7R mirrorless camera with the Sony FE 35 mm f/2.8 ZA lens. It features carbon fiber frame armscollapsible frame and folding propellers for easy transport and safekeeping plus a retractable landing gear to suppress unwanted vibrations during the shoot. It supports up to 18 pound total take-off weight and has low gimbal mounting with dampening. It is supports A2 and WooKong-M FCs, depending on the preference and the types of radios to be used.


Product Features in Detail


Lightweight, Strong And Stable

The S900’s arms and landing gear are made of sturdy carbon fiber, greatly reducing weight while increasing stability and strength. This enables a long flight time without sacrificing performance.


Highly Portable, Easy To Carry

With arms that fold in to save space, the S900 is built to be taken wherever you need to go. Then when you want to fly, it can be ready to go in just a few minutes. Never before has a professional hexacoptor been so portable and easy to transport.


Removable Upper Center Board

The upper center board can be removed, allowing easy access to install your flight controller and IMU, and giving you a convenient way to setup the power distribution system. Even installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.


New Power Distribution System

A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.


Sparkproof Plug

Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.


Professional Quality

Weighing just 3.3kg, the S900 has a maximum takeoff weight of 8.2kg. This means you can easily carry most cameras and gimbals. Used with a 6S 12000mAh battery, it can fly for up to 18 minutes.


Wide Range Of Shooting Angles

Retractable landing gear and a special low gimbal mounting bracket gives you an extremely wide range of possible shooting angles and camera motions.


Compatible With Zenmuse Gimbals

DJI’s Zenmuse camera gimbals are known for their stability, providing smooth footage capture in even the most difficult of conditions. The S900 fully supports the Zenmuse Z15, GH3, GH4, and BMPCC gimbals.


Reduced Vibrations, Clearer Footage

The S900’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.


Greater Power

A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S900 a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.


Innovative Arm Design

Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

Frame
Diagonal Wheelbase
900mm
Frame Arm Length
358mm
Frame Arm Weight (Including Motor, ESC, Propeller )
316g
Center Frame Diameter
272mm
Center Frame Weight (With Landing Gear Mounting Base, Servos)
1185g
Landing Gear Size
460mm(Length)×450mm(Width)×360mm(Height)
Motor
Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(With Cooling Fan)
158g
ESC
Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight (With Radiators)
35g
Foldable Propeller (1552/1552R)
Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g
Flight Parameters
Takeoff Weight
4.7Kg ~ 8.2Kg
Total Weight
3.3Kg
Power Battery
LiPo (6S、10000mAh~15000mAh、15C(Min))
Max Power Consumption
3000W
Hover Power Consumption
1000W (@6.8Kg Takeoff Weight)
Hover Time
18min (@12000mAh& 6.8Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C
Gain Value Settings
For A2 Flight Controller
Basic: Roll 110%, Pitch 110%, Yaw 120%
Attitude: Roll 220%, Pitch 220%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 160%, Pitch 160%, Yaw 160%
Attitude: Roll 190%, Pitch 190%, Vertical 100%



For A2 Flight Control System:

Peripheral
Supported Multi-Rotor
Quad-Rotor: +4,x4;
Hex-Rotor +6,x6,Y6,Rev Y6;
Octo-Rotor +8,x8,V8
Supported ESC Output
400Hz refresh frequency
Supported Transmitter For Built-In Receiver
Futaba FASST Series and DJI DESST Series
External Receiver Supported
Futaba S-Bus, S-Bus2, DSM2
Recommended Battery
2S ~ 6S LiPo
Operating Temperature
-5°C to +60°C
Assistant Software System Requirement
Windows XP SP3 / 7 /8 (32 or 64 bit)
Other DJI Products Supported
Z15, H3-2D, H3-3D, iOSD, 2.4G Data Link, S800 EVO, S900, S1000, S1000+, etc.
Flight Performance
Hovering Accuracy(In GPS Mode)
Vertical: ± 0.5m
Horizontal: ± 1.5m
Maximum Wind Resistance
< 8m/s (17.9mph/28.8km/h)
Max Yaw Angular Velocity
150 deg/s
Max Tilt Angle
35°
Ascent/Descent
±6m/s
Electrical & Mechanical
Power Consumption
MAX 5W (Typical Value: 0.3A@12.5V)
Built-In Functions
Built-in Receiver
Multiple Control Modes
2-axis Gimbal Supported
Low Voltage Protection
PC & Bluetooth Ground Station
External Receiver Supported
Intelligent Orientation Control
Sound Alarm
4 Configurable Output
Total Weight
Total Weight: <= 224g(overall)
Dimensions
Flight Controller: 54mm x 39mm x 14.9mm
IMU: 41.3mm x 30.5mm x 26.3mm
GPS-Compass Pro: 62mm (diameter) x 14.3mm
LED-BTU-I: 30mm x 30mm x 7.9mm
PMU: 39.5mm x 27.6mm x 9.8mm

This product comes with 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in
'Grey Market' or 'Parallel Import' activities.

DJI S900 + A2 + Z15 GH4 Gimbal
A2 Flight Control System
Zenmuse Z15-A7 Gimbal for Sony a7S / a7R
Center Frame
6 Frame Arms
2 Landing Skid Tubes
2 Landing Gear legs
GPS Collapsible Mount
2 Springs
Connector Set
3-pin Servo Cable
Screw Package
2 Spare CW Propellers
2 Spare CCW Propellers
4 Magic Tapes
6 Red Knobs
4 Landing Gear Leg Rings
Screw Package
50 Soft Vibration Absorbing Gaskets
12 Months Australian Warranty
