- Spreading Wings Octocopter
- Comes With A2 Flight Control System
- Zenmuse Z15-GH4 (HD) Gimbal for Panasonic GH4/GH3
- Compatible with Zenmuse Gimbals
- Designed to Carry DSLR-Sized Camera
- Supports A2 and WooKong-M FCs
- Up to 24 Pound Total Take-Off Weight
- Collapsible Frame and Folding Propellers
- Retractable Landing Gear
- Low Gimbal Mounting with Dampening
- Up to 15 Minutes Flying at 15,000mAh
- Genuine 12 Months Australian Warranty

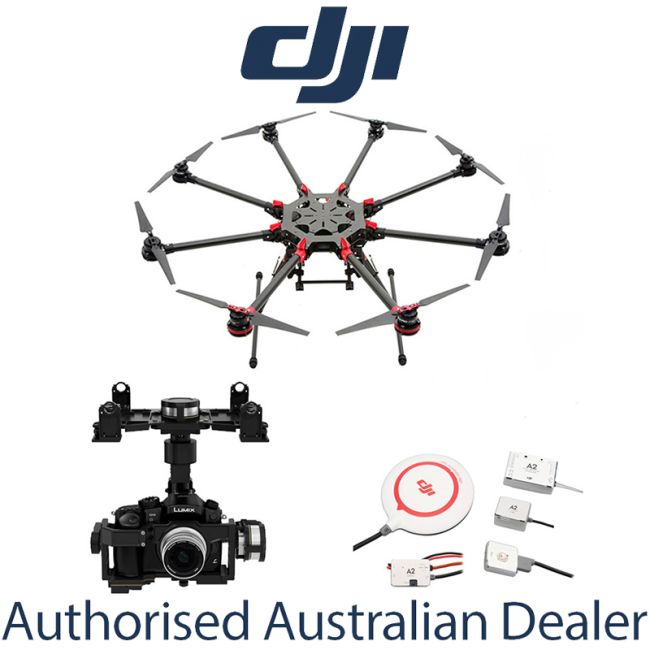

DJI S1000 Plus is the Spreading Wings Octocopter made to be compatible with Zenmuse gimbals to capture aerial still and video images. Now the package also comes with A2 flight control system, an Advanced Stabilization Controller for Multi-Rotor Platforms plus Zenmuse Z15-GH4 (HD) Gimbal that you can use to mount the Panasonic GH4/GH3 . It is designed to carry DSLR-sized cameras and features carbon fiber frame arms, collapsible frame and folding propellers for easy transport and safekeeping plus a retractable landing gear to suppress unwanted vibrations during the shoot. It supports up to 24 pound total take-off weight and has low gimbal mounting with dampening. It supports A2 and WooKong-M FCs, depending on the preference and the types of radios to be used. S1000 Plus has the capability of up to 15 minutes flying at 15,000mAh.
Product Features in Detail
Large Carrying Capacity, Strong And Stable
Free yourself from weight limits and fly with heavy DSLR cameras such as the Panasonic GH4/GH3 with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.
Highly Portable, With Foldable Arms
With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.
Removable Upper Center Board
The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
New Power Distribution System
A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.
Wide Range Of Shooting Angles
Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.
Compatible With Zenmuse Gimbals
Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.
Reduced Vibrations, Clearer Footage
The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
Innovative Arm Design
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
FrameDiagonal Wheelbase1045mmFrame Arm Length386mmFrame Arm Weight (Including Motor, ESC, Propeller )325gCenter Frame Diameter337mmCenter Frame Weight (With Landing Gear Mounting Base, Servos)1520gLanding Gear Size460mm(Length)×511mm(Width)×305mm(Height) MotorStator Size41×14mmKV400rpm/VMax Power500WWeight(With Cooling Fan)158g ESCWorking Current40AWorking Voltage6S LiPoSignal Frequency30Hz ~ 450HzDrive PWM Frequency8KHzWeight(With Radiators)35g Foldable Propeller (1552/1552R)MaterialHigh strength performance engineered plasticsSize15×5.2inchWeight13g Flight ParametersTakeoff Weight6.0Kg ~ 11.0KgTotal Weight4.4KgPower BatteryLiPo (6S,10000mAh~20000mAh,15C(Min))Max Power Consumption4000WHover Power Consumption1500W (@9.5Kg Takeoff Weight)Hover Time15min (@15000mAh & 9.5Kg Takeoff Weight)Working Environment Temperature-10 °C ~ +40 °C Gain Value SettingsFor A2 Flight ControllerBasic: Roll 120%, Pitch 120%, Yaw 120% Attitude: Roll 170%, Pitch 170%, Vertical 120%For WooKong-M Flight ControllerBasic: Roll 130%, Pitch 130%, Yaw 120% Attitude: Roll 180%, Pitch 180%, Vertical 120%
For A2 Controller:
PeripheralSupported Multi-RotorQuad-Rotor: +4,x4; Hex-Rotor +6,x6,Y6,Rev Y6; Octo-Rotor +8,x8,V8Supported ESC Output400Hz refresh frequencySupported Transmitter For Built-In ReceiverFutaba FASST Series and DJI DESST SeriesExternal Receiver SupportedFutaba S-Bus, S-Bus2, DSM2Recommended Battery2S ~ 6S LiPoOperating Temperature-5°C to +60°CAssistant Software System RequirementWindows XP SP3 / 7 /8 (32 or 64 bit)Other DJI Products SupportedZ15, H3-2D, H3-3D, iOSD, 2.4G Data Link, S800 EVO, S900, S1000, S1000+, etc. Flight PerformanceHovering Accuracy(In GPS Mode)Vertical: ± 0.5m Horizontal: ± 1.5mMaximum Wind Resistance< 8m/s (17.9mph/28.8km/h)Max Yaw Angular Velocity150 deg/sMax Tilt Angle35°Ascent/Descent±6m/s Electrical & MechanicalPower ConsumptionMAX 5W (Typical Value: [email protected]）Built-In FunctionsBuilt-in Receiver Multiple Control Modes 2-axis Gimbal Supported Low Voltage Protection PC & Bluetooth Ground Station External Receiver Supported Intelligent Orientation Control Sound Alarm 4 Configurable OutputTotal WeightTotal Weight: <= 224g(overall)DimensionsFlight Controller: 54mm x 39mm x 14.9mm IMU: 41.3mm x 30.5mm x 26.3mm GPS-Compass Pro: 62mm (diameter) x 14.3mm LED-BTU-I: 30mm x 30mm x 7.9mm PMU: 39.5mm x 27.6mm x 9.8mm
For Zenmuse Z15-GH4 (HD) Gimbal:
GeneralBuilt-In Functions1. Three Modes · Orientation-locked · Non orientation-locked · FPV mode (Reset) 2. Built-in independent IMU module 3. DJI-designed servo drives 4. HDMI HD/AV module 5. Wireless video transmission module support 6. Camera shutter control support 7. Wide range voltage input support 8. S-Bus/PPM Receiver support PeripheralSupported CameraPanasonic GH4/GH3Supported Lens CurrentlyOLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0GCU Input Power4S~12S LiPo (Recommend 6S if used with the S800 EVO or S1000)Control RequirementMinimum of four spare receiver channelsAssistant Software System RequirementWindows XP SP3; Windows 7; Windows 8 (32 or 64 bit) Mechanical& Electrical CharacteristicsWorking CurrentStatic current: 200mA (@25V) Dynamic current: 400mA (@25V) Locked-rotor current: 4A (@25V)Operating Temperature-10°C ~ 50°CWeight1.26KgDimensions233mmX210mmX192mmGCU Weight63gGCU Dimensions64.2 mm ×34.1mm ×19.5mm Working PerformanceLoad Weight (Reference Value)690g(@Panasonic GH4 with OLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0, Battery and SD Card)Controlled Angle Accuracy±0.01°Maximum Controlled Rotation SpeedPan axis: ±130°/s Tilt axis: ±130°/s Roll axis: ±30°/sRotationPan axis control: ±360° continuous rotation Tilt axis control: +50°/-140° Roll axis control: ±40°
This DJI gimbal comes with Genuine 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
- In the Box
DJI S1000 Plus + A2 + GH4 (HD) Gimbal
A2 Flight Control System
Zenmuse Z15-GH4 (HD) Gimbal for Panasonic GH4/GH3
8 Frame Arms
2 Landing Skid Tubes
2 Landing Gear legs
GPS Collapsible Mount
3-pin Servo Cable
2 Spare CW Propellers
2 Spare CCW Propellers
4 Magic Tapes
8 Red Knobs
50 Soft Dampers
Genuine 12 Months Australian Warranty
