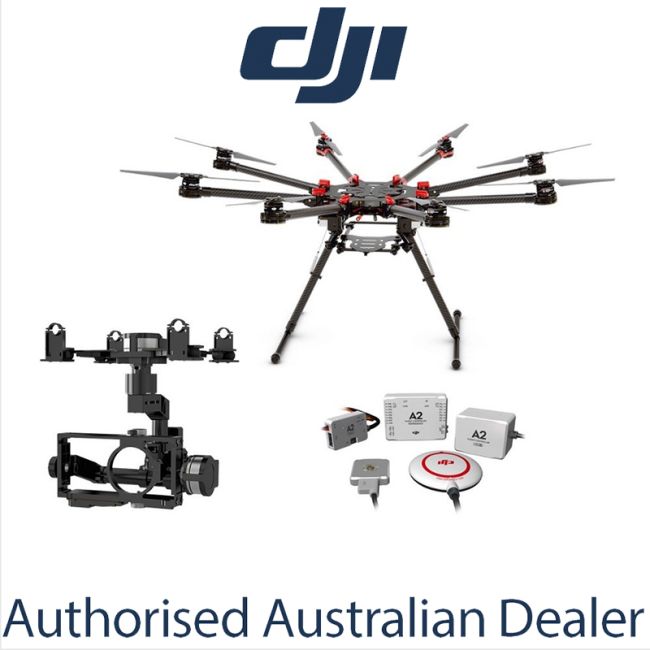

DJI S1000 Plus + A2 + BMPCC Gimbal
- DJI Price Match Guarantee – Click here for more info
- Spreading Wings Octocopter
- Comes With A2 Flight Control System
- Zenmuse Z15-BMPC Gimbal for Pocket Cinema Camera
- Compatible with Zenmuse Gimbals
- Supports A2 and WooKong-M FCs
- Up to 24 Pound Total Take-Off Weight
- Collapsible Frame and Folding Propellers
- Retractable Landing Gear
- Low Gimbal Mounting with Dampening
- Up to 15 Minutes Flying at 15,000mAh
- 12 Months Australian Warranty
DJI S1000 Plus is the Spreading Wings Octocopter made to be compatible with Zenmuse gimbals to capture aerial still and video images. Now the package also comes with A2 flight control system, an Advanced Stabilization Controller for Multi-Rotor Platforms plus Zenmuse Z15-BMPC Gimbal that you can use to mount the Pocket Cinema Camera. It features carbon fiber frame arms, collapsible frame and folding propellers for easy transport and safekeeping plus a retractable landing gear to suppress unwanted vibrations during the shoot. It supports up to 24 pound total take-off weight and has low gimbal mounting with dampening. It supports A2 and WooKong-M FCs, depending on the preference and the types of radios to be used. S1000 Plus has the capability of up to 15 minutes flying at 15,000mAh.
Product Features in Detail
Large Carrying Capacity, Strong And Stable
Free yourself from weight limits and fly with heavy cameras such as the Pocket Cinema Camera with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.
Highly Portable, With Foldable Arms
With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.
Removable Upper Center Board
The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
New Power Distribution System
A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
Sparkproof Plug
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
Professional Quality
Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.
Wide Range Of Shooting Angles
Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.
Compatible With Zenmuse Gimbals
Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.
Reduced Vibrations, Clearer Footage
The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
Greater Power
A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
Innovative Arm Design
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
Frame |
Diagonal Wheelbase
|
1045mm
|
Frame Arm Length
|
386mm
|
|
Frame Arm Weight (Including Motor, ESC, Propeller )
|
325g
|
|
Center Frame Diameter
|
337mm
|
|
Center Frame Weight (With Landing Gear Mounting Base, Servos)
|
1520g
|
|
Landing Gear Size
|
460mm(Length)×511mm(Width)×305mm(Height)
|
|
Motor |
Stator Size
|
41×14mm
|
KV
|
400rpm/V
|
|
Max Power
|
500W
|
|
Weight(With Cooling Fan)
|
158g
|
|
ESC |
Working Current
|
40A
|
Working Voltage
|
6S LiPo
|
|
Signal Frequency
|
30Hz ~ 450Hz
|
|
Drive PWM Frequency
|
8KHz
|
|
Weight(With Radiators)
|
35g
|
|
Foldable Propeller (1552/1552R) |
Material
|
High strength performance engineered plastics
|
Size
|
15×5.2inch
|
|
Weight
|
13g
|
|
Flight Parameters |
Takeoff Weight
|
6.0Kg ~ 11.0Kg
|
Total Weight
|
4.4Kg
|
|
Power Battery
|
LiPo (6S,10000mAh~20000mAh,15C(Min))
|
|
Max Power Consumption
|
4000W
|
|
Hover Power Consumption
|
1500W (@9.5Kg Takeoff Weight)
|
|
Hover Time
|
15min (@15000mAh & 9.5Kg Takeoff Weight)
|
|
Working Environment Temperature
|
-10 °C ~ +40 °C
|
|
Gain Value Settings |
For A2 Flight Controller
|
Basic: Roll 120%, Pitch 120%, Yaw 120%
|
Attitude: Roll 170%, Pitch 170%, Vertical 120% | ||
For WooKong-M Flight Controller
|
Basic: Roll 130%, Pitch 130%, Yaw 120%
|
|
Attitude: Roll 180%, Pitch 180%, Vertical 120% |
For A2 Controller:
Peripheral |
Supported Multi-Rotor
|
Quad-Rotor: +4,x4;
|
Hex-Rotor +6,x6,Y6,Rev Y6; | ||
Octo-Rotor +8,x8,V8 | ||
Supported ESC Output
|
400Hz refresh frequency
|
|
Supported Transmitter For Built-In Receiver
|
Futaba FASST Series and DJI DESST Series
|
|
External Receiver Supported
|
Futaba S-Bus, S-Bus2, DSM2
|
|
Recommended Battery
|
2S ~ 6S LiPo
|
|
Operating Temperature
|
-5°C to +60°C
|
|
Assistant Software System Requirement
|
Windows XP SP3 / 7 /8 (32 or 64 bit)
|
|
Other DJI Products Supported
|
Z15, H3-2D, H3-3D, iOSD, 2.4G Data Link, S800 EVO, S900, S1000, S1000+, etc.
|
|
Flight Performance |
Hovering Accuracy(In GPS Mode)
|
Vertical: ± 0.5m
|
Horizontal: ± 1.5m | ||
Maximum Wind Resistance
|
< 8m/s (17.9mph/28.8km/h)
|
|
Max Yaw Angular Velocity
|
150 deg/s
|
|
Max Tilt Angle
|
35°
|
|
Ascent/Descent
|
±6m/s
|
|
Electrical & Mechanical |
Power Consumption
|
MAX 5W (Typical Value: 0.3A@12.5V)
|
Built-In Functions
|
Built-in Receiver
|
|
Multiple Control Modes | ||
2-axis Gimbal Supported | ||
Low Voltage Protection | ||
PC & Bluetooth Ground Station | ||
External Receiver Supported | ||
Intelligent Orientation Control | ||
Sound Alarm | ||
4 Configurable Output | ||
Total Weight
|
Total Weight: <= 224g(overall)
|
|
Dimensions
|
Flight Controller: 54mm x 39mm x 14.9mm
|
|
IMU: 41.3mm x 30.5mm x 26.3mm | ||
GPS-Compass Pro: 62mm (diameter) x 14.3mm | ||
LED-BTU-I: 30mm x 30mm x 7.9mm | ||
PMU: 39.5mm x 27.6mm x 9.8mm |
For Zenmuse Z15-BMPC Gimbal:
General |
Built-In Functions
|
Three Working Modes
|
· Orientation-locked control | ||
· Non orientation-locked control | ||
· FPV mode (Reset) | ||
Built-in independent IMU module | ||
DJI gimbal special servos drive module | ||
HDMI-AV/HD module | ||
Wireless video transmission supported | ||
Camera record control supported | ||
Wide range voltage input supported | ||
S-Bus/PPM Receiver supported | ||
Peripheral |
Supported Camera
|
BMPCC
|
Current Supported Lens
|
OLYMPUS M.ZUIKO DIGITAL ED 12mm f/2.0
|
|
GCU Input Power
|
4S~12S LiPo (Recommend 6S if used with the S800 EVO/S1000)
|
|
Control Requirement
|
Minimum of four spare receiver channels
|
|
Assistant Software System Requirement
|
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
|
|
Mechanical & Electrical Characteristics |
Working Current
|
Static current: 200mA (@25V)
|
Dynamic current: 400mA (@25V) | ||
Locked-rotor current: 1.8A (@25V) | ||
Operating Temperature
|
-10°C ~ 50°C
|
|
Weight
|
1.26Kg
|
|
Dimensions
|
227mm(H) × 212mm(D) × 210mm(W)
|
|
GCU Weight
|
63g
|
|
GCU Dimensions
|
64.2 mm ×34.1mm ×19.5mm
|
|
Working Performance |
Load Weight (Reference Value)
|
487g(@BMPCC with OLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0, Battery and SD-Card)
|
Controlled Angle Accuracy
|
±0.01°
|
|
Maximum Controlled Rotation Speed
|
Pan axis: ±130°/s
|
|
Tilt axis: ±130°/s | ||
Roll axis: ±30°/s | ||
Controlled Rotation Range
|
Pan axis control: ±360° continuous rotation
|
|
Tilt axis control: +50°/-140° | ||
Roll axis control: ±40 |
This product comes with 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
DJI S1000 Plus + A2 + BMPCC Gimbal
A2 Flight Control System
Zenmuse Z15-BMPC Gimbal for Pocket Cinema Camera
Center Frame
8 Frame Arms
2 Landing Skid Tubes
2 Landing Gear legs
GPS Collapsible Mount
2 Springs
Connector Set
3-pin Servo Cable
Screw Package
2 Spare CW Propellers
2 Spare CCW Propellers
4 Magic Tapes
8 Red Knobs
Screw Package
50 Soft Dampers
12 Months Australian Warranty
