DJI RS 3 Combo Gimbal Stabilizer

A$999.00

Check Stock

Please contact us to check the ETA for this product

Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
  • Includes Focus Motor, Case, Cables
  • Lightweight Design with 3kg Payload
  • Supports Sony a7S III/Canon R5 Cameras
  • Instant Mode Switching
  • Advanced 1.8" OLED Touchscreen
  • Motion Control with Smartphone
  • Supports Wireless Image Transmitter
  • Fine-Tuning Knob on Tilt Axis
  • Automated Axis Locks
  • 12-Hour Operation Time, PD Fast Charging
  • Creative Functions Such as Time Tunnel
  • Bluetooth Shutter Button

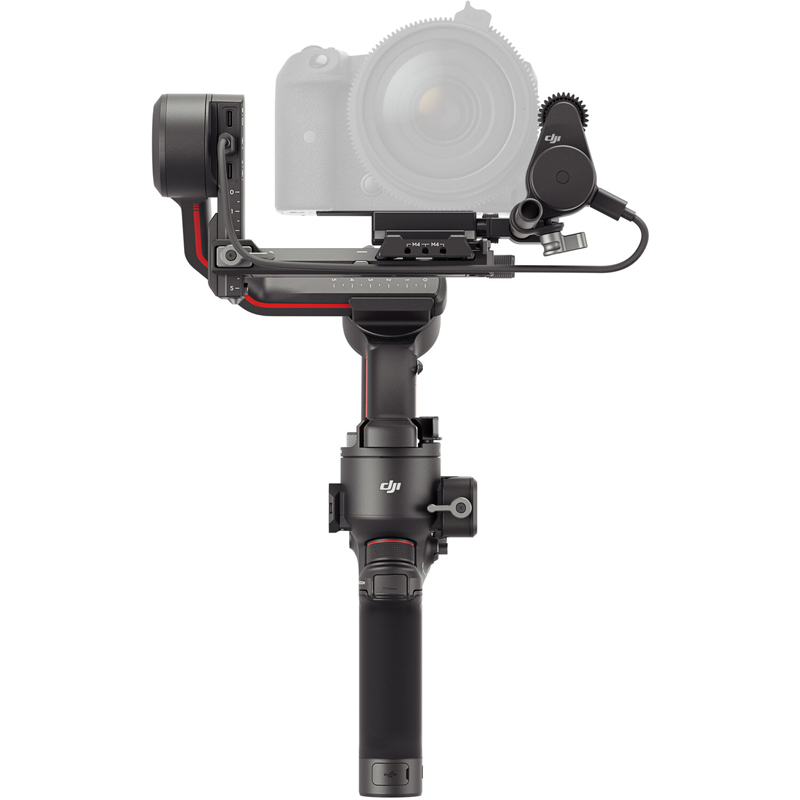

The DJI RS 3 is a lightweight gimbal stabilizer designed for use with mirrorless cameras and DSLRs. It features a 3kg payload capacity, supports cameras up to 113mm in height and has an operating time of 12 hours. The RS 3 also supports wireless image transmission and allows users to fine-tune the gimbal's settings via an OLED display on its handle.

It features two modes: motion control and instant mode switching. In motion control mode, users can adjust the camera angle by moving the handle forwards or backwards; in instant mode switching, users can switch between different angles using a button on their smartphone or tablet.

The RS 3 can be used with Sony a7S III/Canon R5 cameras as well as other mirrorless and DSLR cameras. It supports wireless image transmission so that users can see what their camera sees on their mobile device without having to connect cables directly from their camera to the gimbal's handle. This combo includes focus motor, case, cables.


Product Features in Detail



Ready When You Are
With every detail, DJI RS 3 delivers a flexible and efficient shooting experience to solo creators and independent crews. Light and sleek, it provides professional stabilization and efficient control for more creative freedom and endless possibilities. DJI RS 3 is ready when you are.


Quick-Release Plates
With dual-layered quick-release plates, mounting a camera onto RS 3 is fast and convenient, with no need to re-balance the gimbal after swapping out a new battery or memory card.
A newly added fine-tuning knob on the tilt axis allows the camera to slide forward or backward with millimeter-grade precision to achieve accurate balancing more easily when changing lenses.


Automated Axis Locks
RS 3 lets you get up and running instantly. When the gimbal is powered off, press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making transportation and travel significantly more efficient. Press and hold the power button and it will fold and lock automatically.


Wireless Shutter Control
By implementing Dual-Mode Bluetooth, RS 3 supports wireless shutter control, [1] saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.


Excellent Weight-to-Payload Ratio
Weighing only 1.3 kg/2.8 lbs (including gimbal, battery grip, and quick-release plates), RS 3 can be held easily in one hand, while its 3kg/6.6lb load capacity is more than enough to support mainstream cameras, including the Sony A7S3 or Canon R5 with a 24-70mm F2.8 lens.


3rd-Gen RS Stabilization Algorithm
Thanks to a next-generation RS stabilization algorithm, RS 3 provides enhanced stability in any scenario.


Beyond Smooth
When you need even smoother results, turn on SuperSmooth mode. RS 3 will increase motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when 100mm-equivalent focal lenses are used.


1.8" OLED Touchscreen
Compared with the black and white screen of RSC 2, RS 3 is equipped with a 1.8-inch OLED full-color touchscreen with an 80% larger display. It also supports most Ronin app settings, providing intuitive and precise control together with the redesigned user interface.


Instant Mode Switching
By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.


Customizable Front Dial
Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera's shutter, aperture, ISO, [2] or gimbal movements, making it exceptionally convenient for single-handed operation.


Monitoring via Smartphone
RS 3 supports the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter) [3] to transmit 1080p/30fps HD live feeds directly to a mobile device. The maximum transmission distance is 200 meters [4] and the end-to-end transmission latency is as low as 60 ms. [4] A smartphone can also be attached to the NATO port on RS 3 with the phone holder for wireless monitoring.


Integrated Monitoring and Control
Remotely adjust camera exposure directly in the Ronin app, [2] or control the gimbal with the virtual joystick to get an integrated monitoring and control experience.


Force Mobile
With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 3 gimbal for more flexible and dynamic camera movements.


Quick-Release Design
The new RS 3 battery grip features a quick-release design, making it easier to swap batteries and smaller for storage compared with RSC 2. It can even be charged independently from the gimbal.


12-Hour Operating Time + Fast Charging
The new battery grip provides an extended runtime of up to 12 hours, [5] enough to handle continuous shooting throughout the day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 3 powered almost indefinitely.


New Briefcase Handle [6]
The redesigned briefcase handle is foldable for convenient storage, and comes with a new ergonomic handle to make it easier and faster to install and switch to Briefcase mode. The built-in cold shoe mount and 1/4"-20 mounting holes can connect to external monitors for shooting assistance, making low-angle camera movements more intuitive.


All-New Focus Motor [6]
The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m) and audible noise is reduced by 50%. This delivers a smoother focusing experience and reduces the effect on audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.


Vertical Camera Mount [3]
Install the Vertical Camera Mount to attach the camera vertically to RS 3 while avoiding camera ports, allowing easy portrait shooting at different angles for high-quality social media content.


1. Check the camera compatibility list for detailed information on supported camera models.
2. Requires camera control cable. Check the camera compatibility list for detailed information on supported camera models.
3. Sold separately.
4. Tested in a closed environment in favorable conditions and an unobstructed wireless signal using the FCC and SRRC standard (max 100 m using the CE standard). Actual results may vary.
5. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
6. Available through a combo purchase or separate purchase.

Peripheral
Accessory Port NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours [1]
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections Bluetooth 5.0
Charging Port (USB-C)
Ronin App Requirements iOS 11.0 or above
Android 7.0 or above
Languages Supported by the Touchscreen English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload 3 kg (6.6 lbs)
Maximum Controlled Rotation Speed Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°
Mechanical & Electrical Properties
Operating Frequency 2.400-2.484 GHz
Bluetooth Transmitter Power <8 dBm
Operating Temperature -20° to 45° C (-4° to 113° F)
Weight Gimbal: Approx. 990 g (2.18 lbs)
Grip: Approx. 200 g (0.44 lbs)
Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
Dimensions Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
Connections Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
Expansion Port Cold Shoe
Operating Frequency 2.400-2.484 GHz
5.725-5.850 GHz
Weight 126 g (0.27 lbs)
Dimensions 82×63×24 mm (L×W×H)
Transmitter Power (EIRP) 2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)
Battery Capacity: 2970 mAh
Compatible Charger: 5V/2A
Charging Time: Approx. 2.5 hours
Max Battery Life: Approx. 3.5 hours
Transmission Range 200 m (SRRC/FCC) [2]
100 m (CE) [2]
Latency 60 ms
Operating Current/Voltage 900 mA, 3.7V
Operating Temperature 0° to 45° C (32° to 113° F)

Notes
1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. In open environments free of obstructions or interference.

This product comes with 12 Months Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

DJI RS 3 Combo Gimbal Stabilizer
DJI BG21 Grip for RS 3 Gimbal
DJI Briefcase Handle for RS Series
DJI RS Focus Motor (2022)
Focus Motor Rod Mount Kit
Focus Gear Strip
USB Type-C Charging Cable
Lens Support
Extended Grip/Tripod
Quick Release Plate (Arca-Type/Manfrotto)
2 x USB Type-C Multi-Control Cable
Lens Fastening Strap
Screw Kit
Carry Case
