DJI Ronin MX SRW60G
- Short Range Wireless Video Link
- For Ronin-MX and Matrice 600
- Transmits Real Time HD Video or Images
- Up To 10 meters
- Includes Transmitter and a Receiver
- Genuine 12 Months Australian Warranty
The SRW-60G is a short range wireless video link for Ronin-MX and Matrice 600. It comes with a transmitter and a receiver which transmits real time HD video or images at up to 10 meters. It enables video data to be transmitted from the camera to the Lightbridge 2.
Product Features in Detail
Wireless Video Link
The DJI SRW-60G is a short range wireless video link, which can transmit real time HD video or images for up to 10 meters. Containing both a transmitter and a receiver, it is not only suited for the Ronin-MX and Matrice 600, but can also be used with the Ronin series of handheld gimbals. Convenient video transmission in a meeting room or at home are also a breeze with the SRW-60G.

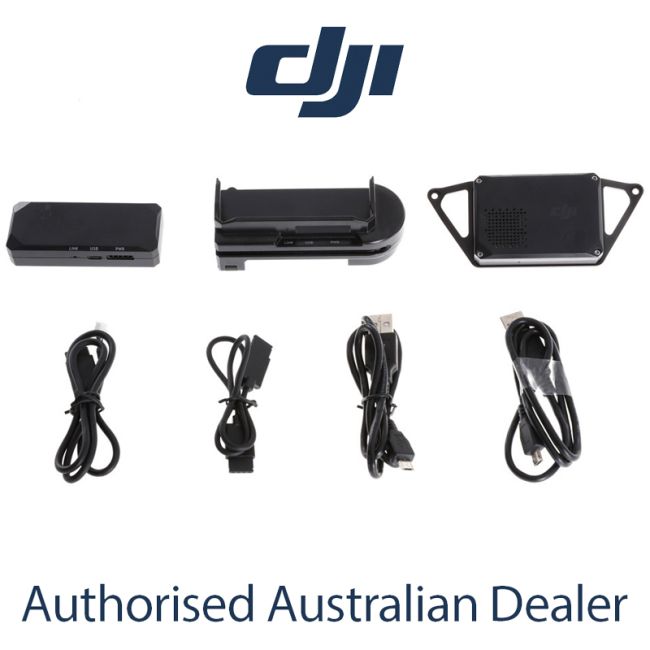

Included in the Box
DJI Ronin MX SRW60G
Transmitter
Receiver
Power Cable for Transmitter
Power Cable for Receiver
USB Cable x2 Screw (M3x5.5) x4
Genuine 12 Months Australian Warranty
Warranty Information
This DJI Ronin MX SRW60G comes with Genuine 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
General | Max Transmission Distance | 10 m (unobstructed) |
Max Transmitter Power (EIRP) | 28 dBm | |
Receiver Sensitivity | -72 dBm | |
Operating Frequency | 59.4 GHz to 63.56 GHz | |
Video Output Port | HDMI | |
Video Resolution | From 480i/576i to 1080p 60Hz | |
Latency | < 1 ms | |
Transmitter | Dimensions | 78 mm (L) x 33 mm (W) x 16 mm (H) |
Weight | 46 g | |
Antenna gain | 7 dBi | |
Operating Voltage (DC) | 7.4-12 V (CAN Port) or 5 V (USB Port) | |
max Consumption | 1.2 W | |
Operating Temperature | 32° to 104° F (0° to 40° C) | |
Antenna Type | Built-in Antenna | |
Receiver | Dimensions | 65 mm (L) x 46 mm (W) x 14 mm (H) |
Weight | 47 g | |
Antenna Gain | 18 dBi | |
Operating Voltage (DC) | 7.4-18 V (CAN Port) or 5 V (USB Port) | |
max Consumption | 2.5 W | |
Operating Temperature | 32° to 104° F (0° to 40° C) | |
Antenna Type | Built-in Antenna |
