- 1-inch, 20-megapixel sensor
- 4K video capture at 60 fps
- 7 km maximum transmission distance
- 30-minute maximum flight time
- Burst mode stills at 14 fps
- Five vision sensors
- GPS and GLONASS satellite positioning
- Two Draw modes
- Two TapFly modes
- Return to Home function
- ActiveTrack system
- Gesture Mode
- Remote controller with built-in screen
- Compatible with the DJI GO 4 app
- Genuine 12 Months Australian Warranty

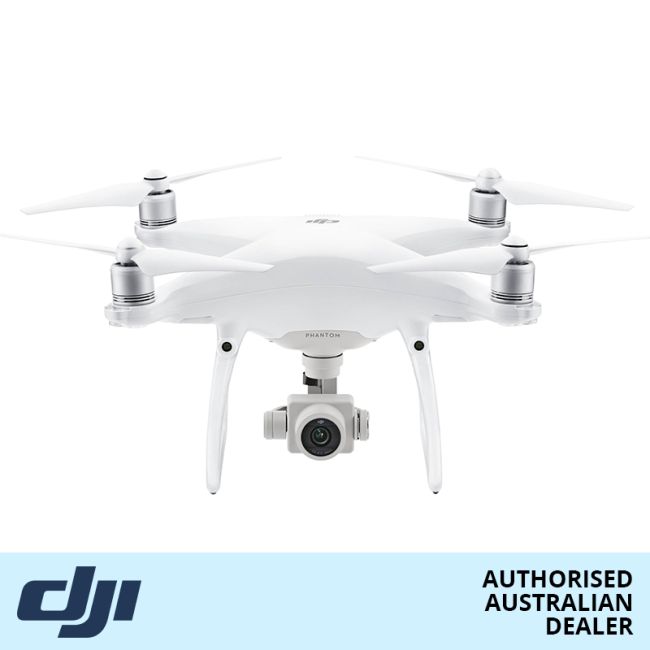

Gain a stunning perspective up in the air with the DJI Phantom 4 Advanced Plus. This quadcopter is equipped with a 1-inch, 20-megapixel sensor that enables 4K video capture at 60 fps as well as burst mode stills at 14 fps. Meanwhile, its 7 km maximum transmission distance means that you can get all the footage you need within the 30-minute maximum flight time on a single full battery charge. This DJI aerial camera avoids obstacles with the help of its five vision sensors. Likewise, accurate locations are provided by its GPS and GLONASS satellite positioning. The Phantom 4 Advanced Plus also boasts of intelligent flight options such as two Draw modes that lets you determine a route by simply sketching on screen. You may also select from two TapFly modes by tapping a visible on-screen area where the drone will proceed. Calling back is easy with the Return to Home function while performing certain functions without the remote controller is possible via the Gesture Mode. Keeping abreast with fast moving objects is a breeze by using any of the ActiveTrack system options. The DJI Phantom 4 Advanced Plus 4K Video Drone is compatible with the DJI GO 4 app which unlocks more functionality and camera settings. This aerial camera also comes with a remote controller with built-in screen.
Product Features in Detail
Remote controller with built-in screen
The Phantom 4 Advanced Plus is equipped with the integrated upgraded Lightbridge HD video transmission system with a maximum video transmission range of 4.3mi (7km).* A 5.5-inch 1080p screen integrated with the Phantom 4 Advanced Plus offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices, which means a visibility even in bright direct sunlight. A five-hour battery life makes the Phantom 4 Advanced Plus a complete aerial imaging solution. The built-in DJI GO 4 app can allow you to live stream, edit and share your aerial videos and photos instantly.
1-Inch 20-Megapixel CMOS Sensor
Sensor size is more important to image quality than the number of pixels because a larger sensor captures more information in every pixel, improving dynamic range, signal-to-noise ratio, and low light performance. The 1-inch 20-megapixel CMOS sensor in the Phantom 4 Advanced Plus is almost four times the size of the Phantom 4's 1/2.3in sensor. It uses larger pixels and has a maximum ISO of 12800 as well as increased contrast. It is good enough for images to be used immediately, while also capturing enough detail for advanced post-processing.
Professional 4K Video
An enhanced video processing system allows video to be captured in cinema and production optimized DCI 4K/60 (4096 x 2160/60fps) at a bitrate of 100Mbps, enabling you to get high-resolution slow motion shots. The Phantom 4 Advanced Plus also supports the H.265 video codec (maximum resolution 4096X2160/30fps). For a given bitrate, H.265 doubles the amount of image processing as H.264, resulting in significantly enhanced image quality. Recording in the high dynamic range D-log mode makes the most of this image data for color grading.
The resolution and contrast of a lens is critical to image quality, because only a quality lens can capture sharp, vivid photos at high resolutions. The brand new Phantom 4 Advanced Plus camera has an aerial optimized F2.8 wide-angle lens with a 24mm equivalent focal length. It features eight elements – 2 aspherical – arranged in seven groups that fit into a smaller, more compact frame. Its images are consistently detailed with low distortion and low dispersion, ensuring that photos and videos are sharp and vivid. The MTF (Modulation Transfer Function) results have been made public, so people can get a better understanding of lens performance.
Aerial imaging is used not only to capture landscapes but also to bring about new perspectives, like when filming action scenes and documenting motor racing. Capturing objects moving at high speeds has always been a challenge for flying cameras using electronic shutters. Phantom 4 Advanced Plus uses a mechanical shutter and a large-aperture prime lens. A mechanical shutter with a max speed of 1/2000s eliminates rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at a high speed. The electronic shutter has also been improved with a max shutter speed of 1/8000 seconds, and a new Burst Mode capable of shooting 14 fps at 20 megapixels, all to catch the perfect moment.
5 Vision Sensors
Equipped with the FlightAutonomy system made up of 5 vision sensors, dual-band satellite positioning (GPS and GLONASS), ultrasonic rangefinders and redundant sensors, Phantom 4 Advanced Plus is able to hover precisely in places without GPS and fly in complex environments. The dual forward vision sensors can see as far as 30m out in front, and enable auto brake, hover or detour in front of obstacles within 15-meter range.
Different productions require different flight characteristics, and the Phantom 4 Advanced Plus offers three modes for flight: P, A and S. In Position Mode, TapFly, ActiveTrack, obstacle sensing and positioning features are available. Sport Mode adds extra agility and higher speed, reaching 45mph (72kph). Atti Mode switches off satellite stabilization and holds the Phantom 4 Advanced’s altitude. It is ideal for experienced pilots looking to capture smoother footage. Tripod Mode, which limits speed to 4mph (7kph) provides precision control for fine framing and indoor flying.
Draw is a brand new technology for waypoint control. Simply draw a route on screen and the Phantom 4 Advanced Plus will move in that direction while keeping its altitude locked. This allows the pilot to focus on camera control and enables more complex shots. There are two Draw modes that can be used in different scenarios.
Forward: The aircraft follows the route at a constant speed with the camera facing in the direction of flight.
Free: The aircraft only moves along the route when instructed. In this mode, the camera can face in any direction during a flight.
Following fast-moving objects can be very challenging, but advanced image recognition algorithms used by the Phantom 4 Advanced Plus allow it to recognize and track the object while keeping it in frame. This new algorithm also recognizes more subjects, from people to vehicles to animals, and will adjust its flight dynamics accordingly, ensuring smoother shots.
Pilots can now choose between:
Trace – Follow behind or in front of a subject, avoiding obstacles automatically.
Profile – Fly alongside a subject at a variety of angles to get profile shots of the subject.
Spotlight – Keep the camera trained on a subject while the aircraft flies almost anywhere.
Fly in any direction visible on-screen with a simple tap. Tap anywhere on-screen to smoothly adjust the direction of flight while automatically avoiding obstacles * and tap the screen again or use control sticks to change direction. A new AR route function shows the aircraft’s real-time flight direction for reference as its route is adjusted. As it can be difficult to control altitude, course, speed and camera pitch simultaneously using joysticks, TapFly Free allows a pilot to set the direction of flight, allowing them to turn the Phantom 4 Advanced Plus or tilt the gimbal as required without changing the direction of flight. In total, there are now two TapFly modes:
TapFly Forward – Tap to fly in the selected direction.
TapFly Free – Lock the forward direction of the Phantom without locking the camera direction allowing it to turn as it flies.
Return to Home
In its Return to Home mode, the Phantom 4 Advanced Plus can automatically choose the best route to return home depending on environmental conditions. It records its route as it flies, allowing it to return along the same route avoiding obstacles if the control signal is disconnected.
Based on its altitude at the time of disconnection, the Phantom 4 Advanced Plus is also able to adjust its flight path to avoid obstacles it has seen during its flight. At takeoff, the Phantom 4 Advanced Plus will record the scene below and compare its recording with what it sees as it returns, for more precise landing. It can also detect the ground to see whether there is a suitable spot for landing. If any obstacles are found, or there is water on the ground, it will alert the pilot and hover at an appropriate height, helping the aircraft to land more safely.
Using Gesture Mode, selfies can be captured easily using a few gestures without the remote controller. Advanced computer vision technology allows the Phantom 4 Advanced Plus to take instructions through gestures. The subject simply lifts their arms when facing the camera and the aircraft will recognize this movement by locking on and placing the subject in the center of the frame. When ready for a photo, the subject holds their arms out to signal the aircraft. A three second countdown will begin, giving time to strike a pose, allowing moments to be captured without the remote control.
The Phantom 4 Advanced Plus features dual compass modules and dual IMU units, making it more reliable. Compasses and IMUs are important sensors to ensure a stable flight and the Phantom 4 Advanced Plus constantly compares the data it receives through both pairs. This data is run through advanced algorithms to check accuracy and any inaccurate data is simply discarded without affecting flight, keeping flight steady and reliable.
Professional aerial imaging benefits from longer flight times. The Phantom 4 Advanced Plus has a maximum flight time of 30 minutes, providing more time in the air to capture the perfect shot. The DJI GO 4 app shows battery lifetime and calculates remaining flight time according to distance traveled and more. It will give alerts when it reaches a minimum safe amount required for a safe journey back to the takeoff point. An advanced battery management system is also in place to prevent overcharging and over draining. When placed in longer term storage, batteries will discharge power to maintain good health.
DJI GO 4 App
Using the DJI GO 4 app, a large number of Intelligent Flight Modes are available. It also provides access to full manual camera controls, including ISO, aperture, shutter speed, image formats, and more. Any changes in DJI GO 4 will appear almost instantly on-screen. Vital flight data and video transmission status are easy to check in the app, further enhancing control efficiency and convenience.
Aircraft Weight (Battery & Propellers Included) 1368 g Diagonal Size (Propellers Excluded) 350 mm Max Ascent Speed S-mode: 6 m/s
Max Descent Speed S-mode:4 m/s
Max Speed S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle S-mode:42°
Max Angular Speed S-mode: 250°/s
Max Service Ceiling Above Sea Level 19685 feet (6000 m) Max Wind Speed Resistance 10 m/s Max Flight Time Approx. 30 minutes Operating Temperature Range 32° to 104°F (0° to 40°C) Satellite Positioning Systems GPS/GLONASS Hover Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
Vision System Vision System Forward Vision System
Downward Vision System
Velocity Range ≤31 mph (50 kph) at 6.6 ft (2 m) above ground Altitude Range 0 - 33 feet (0 - 10 m) Operating Range 0 - 33 feet (0 - 10 m) Obstacle Sensory Range 2 - 98 feet (0.7 - 30 m) FOV Forward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency Forward: 10 Hz
Downward: 20 Hz
Operating Environment Surface with clear pattern and adequate lighting (lux>15) Remote Controller Operating Frequency 2.400 - 2.483 GHz Max Transmission Distance 2.400 - 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
Operating Temperature Range 32° to 104°F (0° to 40°C) Battery 6000 mAh LiPo 2S Transmitter Power (EIRP) 2.400 - 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
Operating Current/Voltage 1.2 [email protected] V Video Output Port GL300E: HDMI
Mobile Device Holder GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM)
GL300C: Tablets and smart phones
Intelligent Flight Battery Capacity 5870 mAh Voltage 15.2 V Battery Type LiPo 4S Energy 89.2 Wh Net Weight 468 g Charging Temperature Range 41° to 104°F (5° to 40°C) Max Charging Power 100 W Gimbal Stabilization 3-axis (pitch, roll, yaw) Controllable Range Pitch: -90° to +30° Max Controllable Angular Speed Pitch: 90°/s Angular Control Accuracy ±0.02° Camera Sensor 1’’ CMOS
Effective pixels: 20M
Lens FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞ ISO Range Video:
100 - 3200 (Auto)
100 - 6400 (Manual)
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed 8 - 1/2000 s Electronic Shutter Speed 8 - 1/8000 s Image Size 3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size 4096×2160(4096×2160 24/25/30/48/50p)
Still Photography Modes Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate 100 Mbps Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB) Photo JPEG, DNG (RAW), JPEG + DNG Video MP4/MOV (AVC/H.264; HEVC/H.265) Supported SD Cards Micro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range 32° to 104°F (0° to 40°C) Charger Voltage 17.5V Rated Power 100 W App/Live View Mobile App DJI GO 4 Live View Working Frequency 2.4 GHz ISM Live View Quality 720P @ 30fps Latency Phantom 4 Advanced: 220 ms (depending on conditions and mobile device)
Phantom 4 Advanced +：160 - 180 ms
Required Operating Systems iOS 9.0 or later
Android 4.4.0 or later
Recommended Devices iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular.
This app is optimized for iPhone 7, iPhone 7 Plus.
Android:Samsung S7 edge, Samsung S7, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Samsung tabs 705c, Ascend Mate 9, Ascend Mate 7, Huawei Honor 8, Huawei P8 Max, Vivo X7, Xiaomi 5, MI 3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, LG V20, Sony Xperia Z3, Smartisan T1.
*Support for additional devices available as testing and development continues.
This product comes with Genuine 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
- In the Box
DJI Phantom 4 Advanced Plus Drone
Remote Controller with screen
4 x Propeller Pairs
Intelligent Flight Battery
USB OTG Cable
Micro USB Cable
16GB Micro SD Card
Disclaimer and Safety Guidelines Manual
Intelligent Flight Battery Safety Guidelines Manual
Quick Start Guide Manual
12 Months Genuine Australian Warranty
