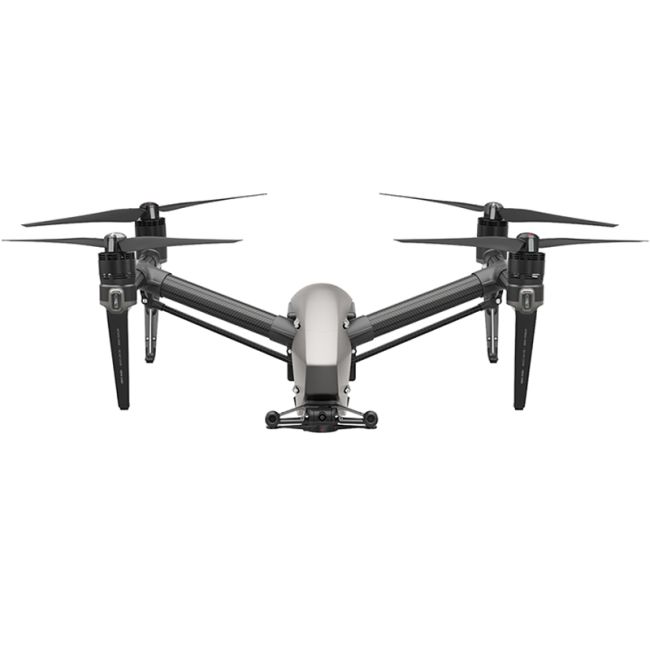

DJI Inspire 2 Drone
- DJI Price Match Guarantee – Click here for more info
- CineCore 2.0 image processing system
- Up to 5.2K in CinemaDNG RAW
- Compatible with DJI X4S and X5S Cameras
- Maximum speed of 108kph
- 7km maximum transmission range
- Maximum flight time of 27 minutes
- FlightAutonomy system
- Remote controller with Lightbridge technology
- Spotlight Pro tracking mode
- ActiveTrack capability
- TapFly mode
- Broadcast mode
- Magnesium aluminium shell with carbon fibre arms composition
- 12 Months Genuine Australian Warranty
If the Inspire 1 Quadcopter Drone is impressive enough as the world's first filmmaking drone, it's much-awaited upgrade is finally here. Equipped with the CineCore 2.0 image processing system, the DJI Inspire 2 Camera Drone is capable of recording up to 5.2K in CinemaDNG RAW format with the help of the compatible DJI X4S and X5S cameras. Likewise, you can track any subject with its maximum speed of 108kph that can be enhanced with ActiveTrack capability and Spotlight Pro tracking mode. Meanwhile, its FlightAutonomy system helps detect obstacles to avoid accidents. The DJI Inspire 2 comes with a remote controller with LightBridge technology which allows a 7km maximum transmission range and TapFly mode for easier navigation. This DJI quadcopter camera is also capable of Broadcast mode to transmit aerial live streaming. Regardless of the weather situation, the DJI Inspire 2 can continue to perform well thanks to its magnesium aluminium shell with carbon fibre arms composition.
Product Features in Detail
Cinema-level video quality
Integrated into the Inspire 2 is the brand new CineCore 2.0 image processing system, capable of recording 5.2K videos in CinemaDNG, Apple ProRes, and more. CineCore 2.0 is built into the aircraft nose and works with any camera connected through the dedicated gimbal port. (Currently compatible with X4S and X5S cameras).
Efficient Workflow
The Inspire 2 creative workflow has been completely optimized and is now capable of recording video in CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT* file systems, which allow fast copying of files direct from the CINESSD without additional software.
Sense and Avoid
Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph) at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces. Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.
Spotlight Pro
Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.
It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest.
TapFly
The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.
ActiveTrack
The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.
Smart Return to Home
Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.
Video Transmission System
The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.3mi (7km) and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4GHz and 5.8GHz control frequencies to cut through noise for greater signal stability.
Master and Slave Controllers
A new wireless HD image transmission technology sends video information from the master controller to the slave controller and the two controllers can be up to 100m apart without loss of image quality.
Broadcast Mode
Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 remote controller to the satellite truck.
Powerful Flight Performance
A new propulsion system optimized for power creates a new level of flight performance. The Inspire 2 flies at up to 67mph (108kph) descends at 9m/s and climbs at 6m/s. It can accelerate from 0 to 50mph (80kph) in just four seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for more sensitivity, making delicate maneuvers easier.
More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea level (using optional dedicated propellers), and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.
Increased Reliability
Reliability has been further enhanced through dual redundancy of key modules such as the IMU and barometer. The intelligent flight control system monitors the redundancy system, giving it accurate flight data.
The new obstacle sensing system helps the Inspire 2 sense and avoid obstacles, minimizing the risk of collision. Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.
This propulsion system has been tested for thousands of hours to ensure reliability, when combined with key sensors and a dual-battery design, overall flight reliability is significantly enhanced.
| Aircraft (Model: T650) | |
| Weight | 7.25 lbs (3290 g, including two batteries, without gimbal and camera) |
| Diagonal Distance(propeller excluded) | 18 inch (605 mm, Landing Mode) |
| Max Takeoff Weight | 8.82 lbs (4000 g) |
| Max Takeoff Sea Level | 1.55 mi (2500 m); 3.1 mi (5000 m with specially-designed propeller) |
| Max Flight Time | Approx. 27 min (with Zenmuse X4S) |
| Max Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°); A-mode: 35°; S-mode: 40° |
| Max Ascent Speed | P-mode/A-mode: 16.4 ft/s (5 m/s); S-mode: 19.7 ft/s (6 m/s) |
| Max Descent Speed | Vertical: 13.1 ft/s (4 m/s); Tilt: 13.1-29.5 ft/s (4-9 m/s) Default tilt is 13.1 ft/s (4 m/s), can be set in-app. |
| Max Speed | 67 mph (108 kph) |
| GPS Hovering Accuracy | Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled) |
| Operating Temperature | 14° to 104° F (-10° to 40° C) |
| Gimbal | |
| Angular Vibration Range | ±0.01° |
| Controllable Range | Pitch: -130° to+40°; Roll: ±20°; Pan: ±320° |
| Max Controllable Speed | Pitch: 90°/s; Roll: 90°/s; Pan: 90°/s |
| Forward Vision System | |
| Obstacle Sensing Range | 2.3-98.4 feet (0.7-30 m) |
| FOV | Horizontal: 60°; Vertical: 54° |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Downward Vision System | |
| Velocity Range | <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) |
| Altitude Range | <32.8 feet (10 m) |
| Operating Range | <32.8 feet (10 m) |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Ultrasonic Sensor Operating Range | 0.33-16.4 feet (10-500 cm) |
| Ultrasonic Sensor Operating Environment | Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
| Remote Controller | |
| Operating Frequency | 2.400-2.483 GHz; 5.725-5.850 GHz |
| Max Transmitting Distance | 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) |
| (unobstructed, free of interference) | 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC) |
| EIRP | 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) |
| Battery | 6000mAh 2S LiPo |
| Output Power | 9 W (Not supply power for mobile device) |
| USB Supply Power | iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
| Operating Temperature | 14° to 104° F (-10° to 40° C) |
| Upward Infrared Sensor | |
| Obstacle Sensing Range | 0-16.4 feet (0-5 m) |
| FOV | ±5° |
| Operating Environment | Large-size non-reflective obstacles |
| Intelligent Flight Battery (Mode: TB50-4280MAH-22.8V) | |
| Capacity | 4280 mAh |
| Voltage | 22.8 V |
| Battery Type | LiPo 6S |
| Energy | 97.58 Wh |
| Net Weight | 515 g |
| Charging Temperature | 41° to 104° F (5° to 40° C) |
| Operating Temperature | 14° to 104° F (-10° to 40° C) |
| Max Charging Power | 180 W |
| Charger (Mode: IN2C180) | |
| Voltage | 26.1 V |
| Rated Power | 180 W |
| Charging Hub (Mode: IN2CH) | |
| Input Voltage | 26.1 V |
| Input Current | 6.9 A |
DJI Inspire 2 Drone
DJI Inspire 2 Remote Controller
12 Months Genuine Australian Warranty
