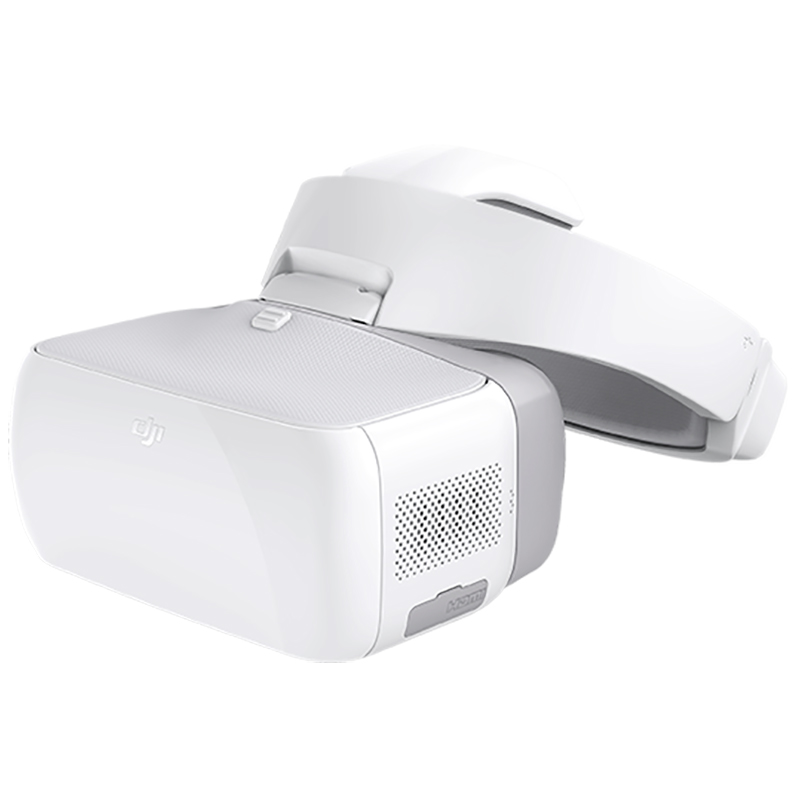

DJI Goggles

For an immersive flight experience, the DJI Goggles provides an impressive 1080p/30fps close range viewing with the help of two, high-quality 1920x1080 screens. Equipped with Intelligent Flight Mode support, you can connect multiple DJI drones using the DJI OcuSync wireless transmission system. Precise operation is possible through the touchpad control while a full charge of its battery can provide up to 6 hours operational time. The DJI Goggles also boasts of impeccable flight control via Fixed Wing Mode for a more realistic flight and Head Tracking Mode to manuever the drone with your head. You can store flight log videos by placing additional storage in the Micro SD card slot. Firmware upgrades are done through the Micro USB Input. Meanwhile, the HDMI Input lets you watch videos and camera feeds. Accompanying music can also be heard through the Audio Input.

Product Features in Detail

Low Lag Transmission
DJI Goggles are able to offer both 720p/60fps and close range 1080p/30fps viewing with an extremely low latency of just 110ms. Through DJI’s OcuSync wireless transmission system, up to four devices can be connected to the Mavic Pro simultaneously. Antennas built into the headband ensure 360° of coverage, offering a reliable connection even if the aircraft is flying behind you. Share the fun of immersive flying with friends by giving them a bird’s eye view of the world as you pilot their experience.

High Resolution
Typical “2K” screens inside the goggles are split into two 1280x1440 sections, one for each eye. When viewing a 16:9 image, some sections are further cut off, leaving only a quarter of the available pixels. DJI Goggles have two 1920x1080 screens providing more than twice the amount of pixels of a typical 2K single screen.

Head Tracking
Your head movements control both aircraft yaw and camera tilt in Head Tracking Flight mode as with remote controller sticks. All you need to do is turn left or right to yaw left or right, and straighten your head to stop turning. In Head Tracking Gimbal mode only the gimbal will move without affecting yaw.

Touchpad and Remote Controller
Access to key intelligent features through a touchpad integrated into the DJI Goggles or 5D button on the Mavic Pro controller makes navigating the internal menu system easy and intuitive.

Intelligent Flight
DJI Goggles are a perfect pair with DJI's new Intelligent Flight Mode: Fixed-Wing Mode. In this mode, the aircraft doesn’t turn left or right but instead flies forward with enough rotational movement for realistic flight simulation. Combined with Head Tracking Mode, you can use your head to control the Mavic Pro for a fully realized flight experience. An AR trajectory prediction feature in Fixed-Wing Mode makes using this mode in complex environments safer. Other Intelligent Flight Modes include Terrain Follow, ActiveTrack, TapFly, Cinematic Mode and Tripod Mode.

Comfortable and flexible
A unique solid headband design balances and spreads the weight of DJI Goggles around the head evenly, minimizing pressure on the face and keeping them comfortable to wear for hours. People who wear glasses are also able to wear them comfortably.The screen portion of DJI Goggles can be flipped up to glimpse the real world, or detached entirely for easy storage and portability.

Micro USB Input
Connect compatible Phantom 4 series and Inspire 2 using the USB port to get access to tracking functions and head tracking. It is also used for firmware upgrades.

HDMI Input
Watch camera feeds from a Phantom 4 series or Inspire drones, or plug in a video device to watch films or play games.

Micro SD Card
Download files from the aircraft to the goggle’s onboard SD card for a backup, or view video files you have captured.

Audio Input
Plug headphones into the headphone jack or use the onboard speakers to listen to audio on videos being played through the HDMI cable.
