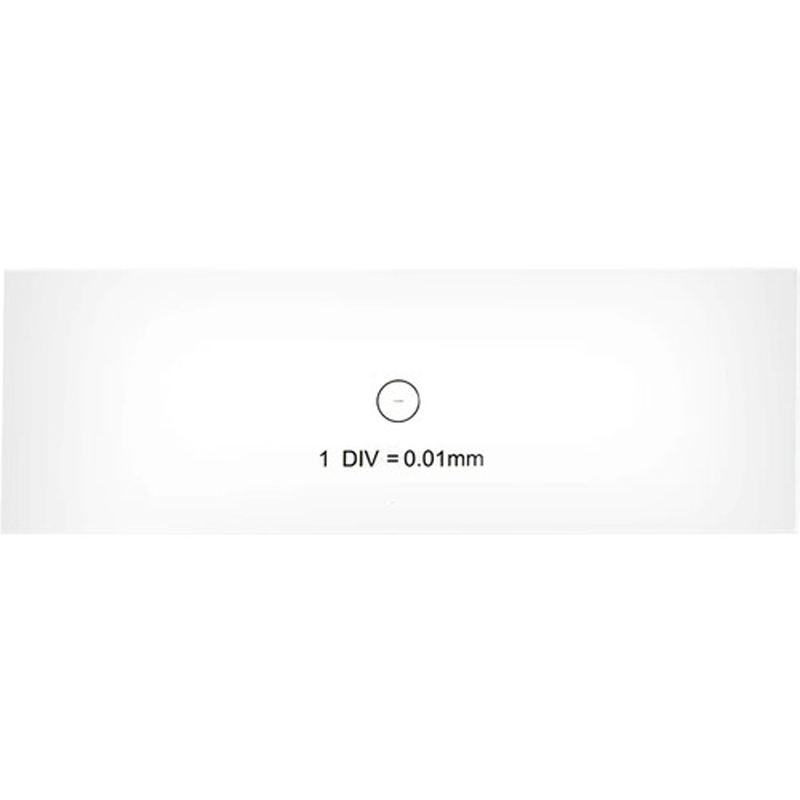

Celestron Microscope Calibration Slide

The Celestron Microscope Calibration Slide is designed to fit traditional microscope stages, making it compatible with most microscopes. It can be used for manual measurement as it features a 1mm ruler with 0.01mm subdivisions, allowing for precise measurements of small specimens. Additionally, this calibration slide is useful for checking the eyepiece/objective field of view. By measuring the scale on the slide under different magnifications, you can determine the field of view for specific eyepiece and objective lens combinations.

Product Features in Detail

Celestron Microscope Calibration Slide

The Celestron Microscope Calibration Slide is essential for calibrating a microscope camera or imager, whether a digital microscope or a manual one with a digital imager attachment. It can also be used for manual measurements of tiny things such as microfibers or for determining the field of view of different eyepiece/objective lens combinations.

The stage micrometer fits on your microscope's stage, allowing you to ensure your specimen measurements are correct.  If you have a digital microscope and or a traditional microscope with a digital imager attachment, a stage micrometer is essential for calibrating the microscope's software settings.  You can also use the stage micrometer to manually measure specimens that are 1/100^th of a millimeter or larger, such as microfibers. If you have a non-digital microscope (e.g., Celestron Labs), you can use the stage micrometer to calibrate the microscope’s eyepiece reticles and determine the field of view of different objective lens and eyepiece pairings. If you find yourself changing objectives and eyepiece reticles often, using your calibration slide regularly will help you maintain measuring accuracy.
