Celestron LCD Digital Microscope II
- Offers high-resolution imaging of specimen slides at an affordable price
- Providing flexibility in viewing angles
- Provides a user-friendly and cost-effective solution for detailed microscopy work

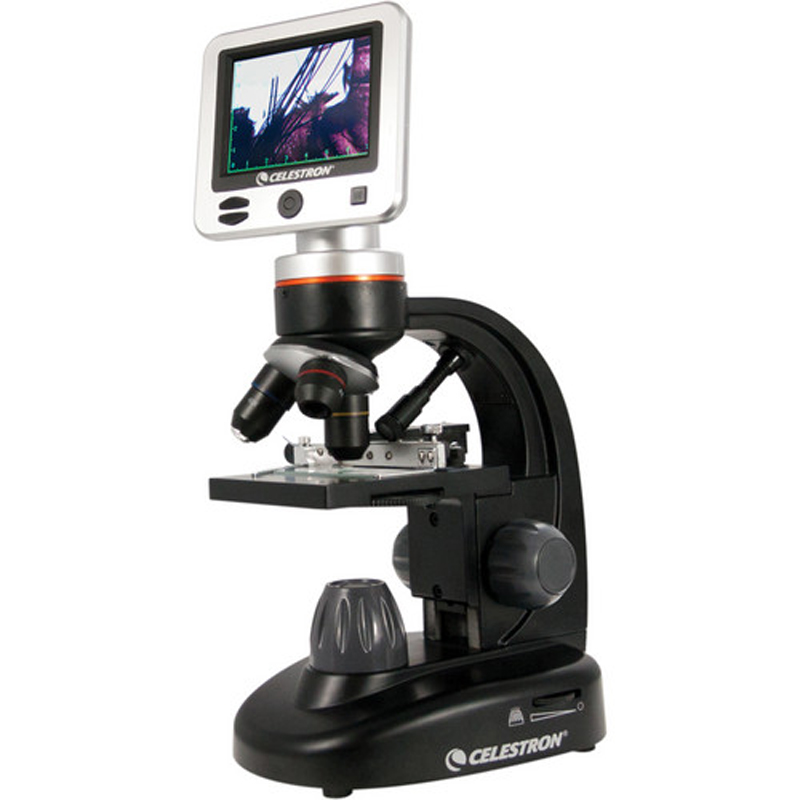

The Celestron LCD Digital Microscope II is a professional-level biological microscope that offers high-resolution imaging of specimen slides at an affordable price. It features fully achromatic lens objectives, a mechanical stage, a 3.5" full-color TFT screen, and a 5MP CMOS sensor for capturing detailed images. With 40x, 100x, and 400x magnification options, along with 4x digital zoom, this microscope allows for various levels of observation and examination.
The LCD Digital Microscope II includes a 1GB SD card and has the capability to capture images and videos in real-time. It also offers top/bottom LED illumination and a disc diaphragm with color filters for better specimen visibility. Additionally, it has a 180° rotating head, providing flexibility in viewing angles. This microscope is designed for professional use in biological sciences, education, or any application that requires high-resolution imaging of specimen slides. It provides a user-friendly and cost-effective solution for detailed microscopy work.
Product Features in Detail
Celestron LCD Digital Microscope II
The Celestron LCD Digital Microscope II is a biological LCD microscope at an affordable price. With fully achromatic lens objectives, a mechanical stage, 3.5” full color TFT screen and 5MP CMOS sensor, the LCD Digital Microscope II allows for high-resolution imaging of specimen slides. The microscope even includes a 1GB SD card, enough storage to capture over 600 high-resolution images for lab reports, papers, lesson, and more.
Its construction features an arched frame to serve as a carry handle and a 4 x AA battery compartment for cordless operation in the field. Using four alkaline AA batteries will allow you 3 hours of uninterrupted, cordless operation.
From 40x magnification up to 1600x with digital zoom, the LCD Digital Microscope II is ideal for viewing a range of cellular specimens on slides, like most traditional microscopes. The LCD screen rotates 180 degrees so you can easily share your discoveries with others. For an even bigger audience, use the TV output to display on a television or projector.
| Type of Microscope | LCD Desktop |
| AC Adapter | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution | 2592 x 1944 | 2112 x 1188 | 1538 x 864 | 640 x 480 |
| Video resolution | VGA (640 x 480) |
| Shutter trigger position | On LCD Screen |
| Software | Internal Firmware built in |
| Microscope Dimensions | 170mm x 140mm x 330mm (6.7" x 5.5" x 13") |
| Microscope Weight | 56 oz (1600g) |
| Head | 180° rotatable head w/3.5" TFT LCD Screen |
| Nosepiece | Triple with click stop |
| Objective(s) Type | (3) Achromatic objectives on turret |
| Objective(s) Standard | DIN 35 RMS |
| Objective(s) Magnification | 4x, 10x, 40x |
| Objective(s) Thread | WJ 4/5" x 1/36" |
| Focus Type(s) | Course Focus |
| Focus Travel (per rotation) | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range | 40x, 100x, 400x | Up to 1600x with digtial zoom |
| Illumination Type | LEDs |
| Illumination Position(s) | TBD |
| Illumination Adjustability Mechanism | Adjustable wheels at base |
| Power Source | Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional) |
| Battery Options | Yes (4AA) |
| Stage | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures |
| Condenser Type | Aplantic |
| Condenser N.A. | N.A. 65 |
| Stage Diaphragm | Multiple on wheel |
| Eyepiece Type | CMOS Sensor in lieu of eyepiece |
| Sensor Size | 5MP | 1/2.5" |
| Pixel Size | 2.2 μm |
| Screen type | High Definition TFT LCD Screen | 480 x 272 pixels | 262K colors | Brightnes 400cd/m2 |
| Screen Size | 3.5" |
| Memory Type | SD Card |
| Memory Size | 2G SD included | Supports up to 32G |
| Port(s) In | AC Plug (power) | SD Card slot (32Gmax) |
| Port(s) Out | Video/ TV out | USB 2.0 |
