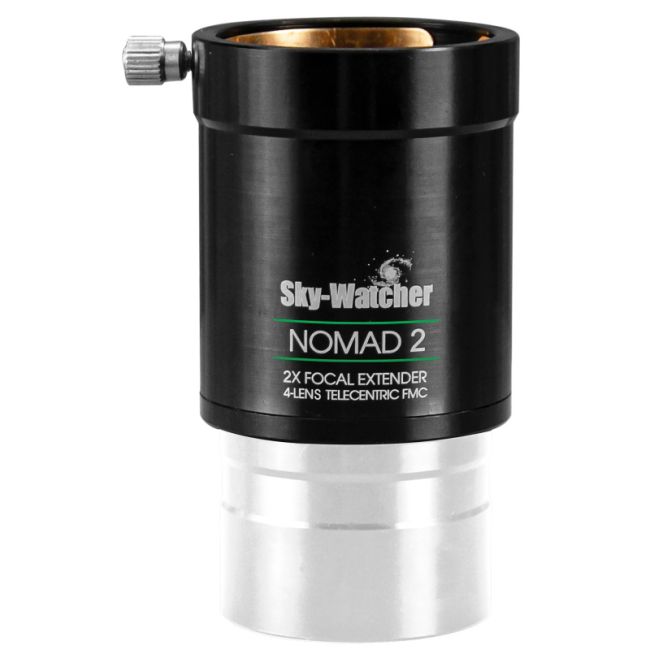

Sky-Watcher Nomad 2 Barlow Lens with CCD Camera Adapter

The Sky-Watcher Nomad 2 Barlow Lens with CCD Camera Adapter is a premium, high-quality optical accessory designed for both visual observation and high-resolution imaging. In visual use, it functions as a 2x Barlow lens that effectively doubles the magnification of any eyepiece, allowing for intricate views of the Moon and planetary surfaces. Its sophisticated 4-element design utilizes high-index glass and proprietary multi-coatings to ensure minimal light loss and maximum clarity. To protect your equipment, the lens features a self-centering brass compression ring that avoids marring eyepieces, alongside captive lock screws that cannot fall out. Compatible with both 2" and 1.25" eyepieces via the included adapter, this metal-bodied tool is built for security and professional performance.

For astrophotography, the Nomad 2 excels by providing images without color difference and maintaining the apochromatic performance of high-end ED Apo telescopes. Its 4-lens optical system offers excellent field collimation, making it an ideal choice for taking spectacular high-resolution photos of the lunar and planetary surfaces. The kit is highly versatile, including a direct CCD adapter and a DSLR adapter (M48x0.75), allowing for seamless integration with various camera setups. Additionally, the 2" barrel is threaded for filters and features a safety undercut in the nosepiece for extra security. Weighing 378g, the NOMAD-2 is a robust and essential addition to any astronomer's toolkit, optimizing the quality of every imaging session.

Product Features in Detail

True-Color 4-Lens Optics

Most Barlows use 2 elements, which can introduce color fringing. The Nomad 2 uses a sophisticated 4-element design that ensures your images remain "color-free." This is critical when using high-end Refractors, as it maintains the apochromatic performance you paid for.

Professional Imaging Integration

Unlike visual Barlows that require extra spacers, the Nomad 2 comes with dedicated CCD and DSLR adapters. The M48 thread on the DSLR adapter is superior to standard M42 threads, as it provides a wider clear aperture that helps prevent vignetting on full-frame camera sensors.

Brass Compression Safety

Standard set-screws can gouge and scratch the barrels of expensive eyepieces. The Nomad 2 utilizes a brass compression ring that distributes pressure evenly around the eyepiece. This not only protects the finish but also centers the eyepiece more accurately on the optical axis.

High-Index, Multi-Coated Glass

To ensure a bright image, Sky-Watcher uses high-index glass elements treated with proprietary multi-coatings. This reduces light scatter and reflections, which is vital when observing bright targets like Jupiter or Venus, where internal reflections can ghost the image.

Captive Lock Screw Design

Anyone who has used a telescope in the dark knows the frustration of dropping a tiny screw in the grass. The Nomad 2 features captive screws that are designed to stay attached to the housing even when fully loosened, ensuring you never lose a part in the field.

Stray Light Suppression

The interior is engineered with anti-reflective threads and blackened lens edges. This meticulous attention to detail prevents stray light from bouncing around the internal barrel, resulting in "jet-black" backgrounds and enhanced contrast for faint lunar details.
