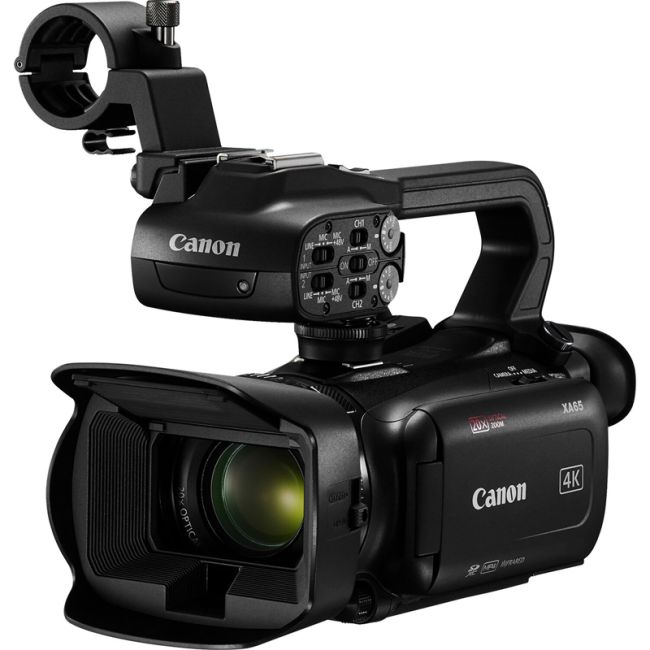

Canon XA65 4K Professional Digital Video Camera w/ SDI Connections
- 1/2.3" CMOS Sensor, DIG!C DV 6 Processor
- Up to UHD 4K30 Video Recording
- Integrated 20x Optical Zoom Lens
- 29.3 - 601mm (35mm equivalent)
- Mini-HDMI and 3G-SDI Outputs
- Infrared, Optical Image Stabilization
- USB-C Output with UVC Support
- 3.5" Touchscreen LCD, Tiltable OLED EVF
- Record 4K in XF-AVC and MP4 Formats
- Dual XLR and Mic/Line Audio Input
- Dual SD Relay and Simultaneous Recording
The Canon XA65 is a professional digital video camera designed for high-quality video recording. It offers several features that make it suitable for professional videography and filmmaking.
The camera features a 1/2.3" CMOS sensor and a DIG!C DV 6 processor, which work together to provide excellent image quality and performance. With the XA65, you can record videos up to UHD 4K30 resolution, allowing you to capture footage with high levels of detail and clarity.
The camera is equipped with an integrated 20x optical zoom lens, which covers a focal length range of 29.3 - 601mm (35mm equivalent). This helps you get closer to the action and capture different perspectives. For connectivity options, the XA65 features mini-HDMI and 3G-SDI outputs, allowing you to connect the camera to external devices such as monitors or recorders.
The camera also offers infrared capability and optical image stabilization, which helps reduce camera shake and ensures steady, clear footage, even in challenging shooting conditions. With the USB-C output with UVC support, you can connect the XA65 to a computer or other devices for live streaming or video conferencing.
The camera features a 3.5" touchscreen LCD for easy menu navigation and frame composition. Additionally, it has a tiltable OLED electronic viewfinder (EVF) for more precise framing and monitoring.
The XA65 supports recording in both XF-AVC and MP4 formats, giving you flexibility in choosing the file format that best suits your post-production workflow. For audio recording, the camera offers dual XLR and mic/line audio inputs, allowing you to connect external microphones or audio sources for professional sound quality.
The XA65 supports dual SD relay and simultaneous recording, enabling you to record footage to two SD cards simultaneously or automatically switch to a second card when the first one is full.
Product Features in Detail
Shoot, record, stream
Shoot high quality 4K UHD video with the compact XA65. As well as outstanding Over Sampling HD processing, advanced autofocus, a Canon 20x optical zoom lens and HD livestreaming in UVC 1 via USB-C over a computer, capture high quality footage in either XF-AVC or MP4 formats.
Compact professional 4K UHD camcorder
Capture stunning 4K UHD and superior Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Over Sampling HD processing delivers Full HD images from the 4K sensor.
4K 20x optical zoom lens
The Canon lens covers a 29.3mm wide angle (35mm equivalent) plus a powerful 612mm reach with Dynamic IS. A digital zoom boosts to 800x with 5-axis image stabilisation.
Fast, precise focusing with face detection
Adjustable focusing speeds and advanced Hybrid AF system give fast and precise focusing. Use the 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for flexible recording
Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 25P, plus Full HD 45Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150Mbps at 25P and Full HD 35Mbps or 17Mbps at 50P/25P.
Multiple shooting functions
Output options include 3G-SDI, simultaneous backup and relay recording via dual SD card and Infrared mode. For specialist capture, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu.
Livestream and more
Stream HD footage via UVC 1 over a computer or add a date and time stamp with OSD recording. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
| Image Sensor | |
| Sensor | 1/2.3-type CMOS |
| Filter | RGB Primary Colour Filter |
| Total Pixels | Approx. 21.14MP |
| Effective Pixels per Sensor | Approx. 8.29 MP (3840 x 2160) |
| Subject Illumination Range | Approx. 0.3 lx to 100,000 lx |
| Minimum Illumination (PAL) | P (Program AE) Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On) |
| Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.) | |
| Image Processor | |
| Type | DIGIC DV 6 |
| Colour Sampling | YCC 4:2:0 8bit |
| Lens | |
| Zoom Ratio | 20x Optical |
| Focal Length (35mm Equivalent) | Approx. 29.3 - 601mm Standard IS/IS Off |
| Minimum Focus Distance | 1 cm at wide end, 60 cm across entire zooming range |
| Max. Aperture | f/1.8 - 2.8 (AV Priority and Manual Modes) |
| Aperture Blades | 8 blades |
| Filter Diameter | 58mm |
| Image Stabilization System | Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off |
| ND Filter | Built-in gradation filter (Auto or Off) |
| Zoom Control | Zoom rockers on body and handle; |
| Selectable manual zoom/focus ring on lens; | |
| Selectable High Speed and Soft Zoom modes available. | |
| Zoom Speed | Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each) |
| Focus Control | MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. |
| AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. (Instant AF, Medium AF, Normal AF) | |
| Focus System | Hybrid AF (High Speed/Medium speed). Uses combination of TTL-video signal detection system and external phase difference metering system. |
| Normal AF. TTL, Contrast based AF | |
| Iris Control | Touchscreen, Auto |
| Digital Zoom/Teleconverter | 20x digital zoom (400x with optical zoom) and 40x digital zoom (800x with optical zoom) are available. Digital zoom not available in AUTO mode. 2x Digital Teleconverter |
| Recording | |
| Video Storage Media | SD/SDHC/SDXC card (2 card slots) |
| Recording Time | 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins |
| Recording File System | FAT32/exFAT |
| Internal Recording Format (PAL) | XF-AVC: |
| 3840 x 2160 / 25.00P (160 Mbps) | |
| 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps) | |
| MP4: | |
| 3840 x 2160 / 25.00P(150 Mbps) | |
| 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps) | |
| External Recording Output | HDMI output (When Shooting): |
| UHD recording mode: | |
| 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit | |
| Full HD recording mode: | |
| 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit | |
| SDI output (When Shooting): | |
| UHD recording mode: | |
| 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit | |
| Full HD recording mode: | |
| 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit | |
| Slow/Fast Motion (PAL) | 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200 |
| 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200 | |
| 1920 x 1080 / 25.00P: x0.5 | |
| Pre-Record Function | Yes. 3 seconds |
| Still Photos | JPEG up to 3840x2160 |
| (Still image resolution is dependent on the video resolution) | |
| Photo Storage Media | SD Card |
| System | |
| Display Type | Capacitive LCD touch panel |
| Size | 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720) |
| Wave Form Monitor | No |
| Focus Assist | Peaking / Magnify |
| Peaking | Selectable Peaking Colour: Red / Blue / Yellow |
| Zebra | 70% or 100% reference level |
| Markers | Grid (white/grey), Level (white/grey), 4:3 (white/grey) |
| EVF | |
| Size | 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576) |
| Correction Lens | +2.0 to -5.5 dioptre |
| Inputs / Outputs | |
| Audio Input | XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, |
| 3.5mm microphone input jack (Supply Voltage 2.4V DC) | |
| Built-in Mic | |
| Headphone Output | 3.5mm stereo mini jack |
| HDMI Output | HDMITM mini connector |
| USB | Type-C |
| Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported. | |
| SDI Output | 3G-SDI |
| Time Code | Rec Run / Free Run |
| Genlock | No |
| LAN | No |
| AV Terminal | No |
| DC Input | USB-C |
| Remote Control Terminal | 2.5mm mini jack |
| Miscellaneous | |
| Tally Lamp | Yes, in detachable Handle Unit |
| Colour Bars (PAL) | Yes. SMPTE, ARIB or EBU, with 1KHz Tone |
| Accessory Shoe | Yes (cold shoe) |
| Assignable Buttons | 5 assignable Buttons |
| Custom Dial | Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off |
| Exposure | |
| Exposure Metering | Center-weighted average metering |
| AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes | |
| Segment evaluative metering | |
| Night Scene, Snow, Beach, Sunset, Spotlight modes | |
| No metering in Fireworks mode: Exposure constant | |
| Exposure Compensation | Highlight AE, Normal, Exposure lock, Auto backlight compensation. |
| Exposure Lock | Yes. |
| Auto ISO / Auto Gain Control Setting | Auto / Manual |
| Auto Gain Control Limit | 0 - 23dB (1dB increments) |
| Shutter Speed | |
| Control Modes | Auto, P, Tv, Manual |
| Shutter Speed (PAL) | 1/6 - 1/2000 sec |
| (1/2 - 1/500 sec in Low Light mode) | |
| Slow Shutter (SLS) | 50.00P: |
| Auto slow shutter On: 1/25 to 1/500 sec. | |
| Auto slow shutter Off: 1/50 to 1/500 sec. | |
| 25.00P: | |
| Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12) | |
| Auto slow shutter Off: 1/25 to 1/500 sec. | |
| Clear Scan (PAL) | No |
| Streaming, Wi-Fi, & GPS Specifications | |
| Wi-Fi | No |
| GPS Information (Optional Accessory) | Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. |
| (requires the optional GPS Receiver GP-E2) | |
| White Balance | |
| Auto | Yes |
| Preset | Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K) |
| Manual Setting | Colour Temperature range: 2,000–15,000K |
| Default value for Set 1 and Set 2: 5,600K | |
| Shooting Modes | |
| Program AE | AUTO mode |
| M (Manual) mode | |
| P (program AE), Tv (shutter-priority AE), Av (aperture-priority AE), M (manual exposure), SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mode | |
| Custom Picture Menu | C1: Normal (BT.709 Normal / BT.709) |
| C2 to C6: USER02 to USER06 | |
| Look Settings | Standard |
| (Adjustment: Sharpness, Contrast, Colour Depth) | |
| Colour Matrix Settings | Neutral: accurate colour reproduction |
| Video: Higher contrast colour reproduction | |
| Infrared Shooting Mode | Yes (green or white) |
| Built-in IR Lamp | Yes, in detachable Handle Unit. |
| Wavelength: 850nm (near-Infrared) | |
| Audio | |
| Recording Format | MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch) |
| Audio Control | Manual/Auto |
| Independent 2ch Line/Mic/Mic+48V input; | |
| Independent level control per channel (-∞ to +18 dB); | |
| Independent audio limiters (2 ch); | |
| Input mic trimming | |
| Reference Tone | 1KHz, -12dB / -18dB / -20dB / Off |
| Microphone Attenuation | On/Off (20dB) |
| Microphone Level Meter | Yes |
| Accessories | |
| Supplied | Lens hood with barrier, Mic holder unit, Handle Unit, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable |
| Optionals | Canon Battery Pack BP-820/BP-828, Canon Battery Charger CG-800E/CG-800, Canon HDMI cable HTC-100/HTC-100S, Canon Tele Converter TL-H58, Canon Wide Attachment WA-H58, Canon Shoulder Strap SS-600/SS-650, Wrist Strap WS-20, Canon PROTECT Filter 58mm, Canon ND4-L Filter 58mm, Canon ND8-L Filter 58mm, Canon GPS Receiver GP-E2, Canon Remote Controller RC-V100, Canon Battery Video Light VL-10Li/VL-10LiII, Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII), Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series), Canon Interface Cable IFC-300PCU/S / IFC-400PCU |
| Power Source | |
| Power Supply (Battery) | Canon Battery Pack BP-820 (supplied), BP-828 (optional) |
| Power Consumption | UHD: |
| MP4, 150Mbps 25.00P : Approx. 4.5W | |
| XF-AVC,160Mbps 25.00P : Approx 4.5W | |
| Full HD: | |
| MP4, 35Mbps 50.00P : Approx. 4.6W | |
| XF-AVC, 45Mbps 50.00P : Approx. 4.6W | |
| Recording Time | UHD |
| MP4: 150Mbps/25.00p: Max. 165 mins (BP-820), typical 95 mins / | |
| Max. 240 Mins, typical 140 mins ( Optional BP-828) | |
| XF-AVC: 160Mbps/25.00P: Max. 160 mins (BP-820), typical 95 mins. | |
| Max. 230 mins, typical 145 mins (Optional BP-828) | |
| Physical Specifications | |
| Dimensions | Approx. 109 x 84 x 182 mm (main body only) |
| Approx. 131 x 180 x 231 mm | |
| (Including lens hood, BP-820, mic holder unit, and handle unit) | |
| Weight (Body Only) | Approx. 750g |
| Weight (Accessories) | Approx.1140g |
| Operating Temperature Range | 0ºC to +40ºC, 85% relative humidity |
This product comes with 12 Months Australian Manufacturer's Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Canon XA65 4K Proffesssional Digital Video Camera w/ SDI Connections
Canon PD-E1 USB Power Adapter
Canon BP-820 Lithium-Ion Single Battery Pack
Handle Unit
Lens Cap
Lens Hood with Lens Barrier
Microphone Holder Unit
SKU: Canon XA65
UPC: 4549292202212
