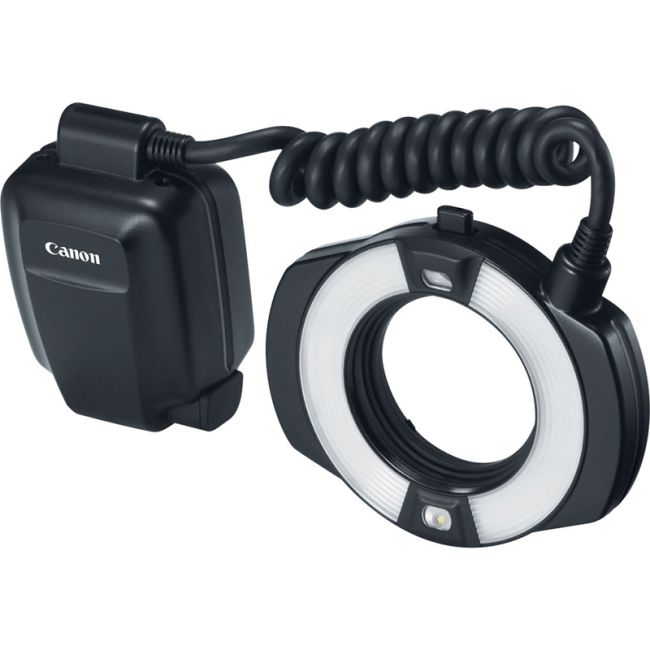

Canon MR-14EX II Macro Ring Lite
- Compatible with Canon E-TTL / E-TTL II
- Twin-Tube Design & 12 Custom Functions
- 45.9' Guide Number at ISO 100
- 80° Vertical & Horizontal Coverage
- LED Focusing Lamps
- Wireless Master TTL Functionality
- 0.1-5.5 Seconds Recycle Time
- High-Speed & 2nd Curtain Sync
- Runs on 4 AA Batteries
- Attaches to Select Canon Macro Lenses*
The Macro Ring Lite MR-14EX II gives serious close-up, nature, and macro enthusiasts a different option in macro lighting - a directional quality of light, as opposed to the rather "Flat" character of the traditional ring lite. This Ring Lite for close-up and macro shooting is loaded with features and capabilities including Twin-Tube Design & 12 Custom Functions. Now compatible with Canon E-TTL / E-TTL II, it takes full advantage of the flash performance of the EOS DSLRs and E-TTL cameras. Covering 80° Vertical & Horizontal angles with combined 45.9' Guide Number at ISO 100 on both sides allowing smaller apertures to work perfectly. The LED focusing lamps and two types of modelling lights provide accurate previewing of the light's effect. MR-14EX II features Wireless Master TTL Functionality, 0.1-5.5 Seconds Recycle Time, and a High-Speed & 2nd Curtain Sync. It works with 4 AA batteries and works with select Canon Macro lenses.
Product Features in Detail
Accurate Auto White Balanace
Colour temperature data is transmitted to your EOS camera for accurate auto white balance.
Dual Flash Tubes
Can be varied independently to create uniform shadowless lighting, or use shadows to emphasise texture.
Powerful Performance
With quide number 14 (ISO 100, m) allows the use of small apertures for extended depth of field when working up close.
Precision and Accuracy
Colour temperature data is transmitted to your EOS camera for accurate auto white balance.
Ring Flash Design
For uniform lighting of small objects in macro photography.
Wireless Master Flash
Trigger multiple Speedlites, using the Macro Ring Lite MR-14EX II as an optical wireless master.
This macro flash is compatible with the following lenses;
Canon EF 50mm f/2.5 Macro, EF-S 60mm f/2.8 Macro USM, , MP-E 65mm f/2.8 1-5x Macro, and EF 100mm f/2.8 Macro USM lenses.
If you're using the EF 100mm f2.8L Macro IS USM lens, the separate Macrolite Adapter MA67 is required (NOT INCLUDED); if you're using the EF 180mm f3.5L Macro USM , a separate Macrolite Adapter 72C is required.
| Power |
Guide No. (ISO100).meters
|
14 |
| Zoom |
Zoom head
|
No |
| Focal length coverage | – | |
| Coverage with wide panel | – | |
| Auto zoom for sensor size | – | |
| Flash Modes |
Auto exposure control
|
E-TTLII/E-TTL/TTL |
| High speed sync (FP) | Yes | |
| Manual / output settings | Yes - 1/1- 1/128 | |
| Manual steps | 1/3 steps | |
| Strobe / output settings | – | |
| Frequency | – | |
| Video light | – | |
| Video light power | – | |
| Video light colour temperature | – | |
| Flash Related Function |
FE lock
|
Yes |
| Flash exposure compensation | Yes | |
| Flash exposure bracketing | Yes | |
| Second-curtain flash sync | Yes | |
| Modelling flash | Yes | |
| Colour temperature info communication | Yes | |
| Wireless Flash |
Transmitter
|
Yes |
| Transmitter type | Infra-red | |
| Transmitter range approx | Indoors: 5m | |
| Outdoors: 3m | ||
| Slave | No | |
| No. of groups | 3[1] | |
| No. of channels | 4 | |
| Remote shutter release | – | |
|
Flash Head Movement
|
Up
|
– |
| Down | – | |
| Left | – | |
| Right | – | |
| AF ASSIST | AF-Assist beam | |
| No (Focusing lamp) | ||
| Number of AF points supported | ||
| – | ||
| AF-assist beam type | ||
| – | ||
| Power Source |
Battery
|
4 x AA batteries |
| Minimum recycling time[2] | Approx. 5.5sec | |
| External power supply | Yes - CP-E4 | |
| Construction |
Dust and water resistant
|
No |
| Mounting foot material | Metal | |
| Misc |
Custom function
|
12 (27 options) + 3 personal functions |
| Flash settings for camera menus[3] | Yes | |
| External flash exposure sensor | No | |
| PC terminal | No | |
| Compatible accessories | Macro Lite Adapter 72c, 67 | |
| Compact battery Pack CP-E4EX Series Speedlite with Slave function | ||
| Dedicated flash bracket | No | |
| Dimensions & Weight |
Size (W x H x D), mm
|
Control unit 69.6 x 118.8 x 71.4 |
| Flash unit 129.6 x 112.1 x 25.3 | ||
| Weight (Excluding batteries), grams | 455 | |
| Footnotes |
Macro Ring Lite Flash MR-14EX II
|
[1] As default only flash in group C are triggered wireless, set C.Fn 5-1 to wirelessly trigger groups A & B[2] time taken to recharge flash after full discharge using Alkaline AA batteries[3] With compatible cameras only |
Canon MR-14EX II Macro Ring Lite
Lens Cap
Case
SKU: Canon MR14EXII
UPC: 013803239911
