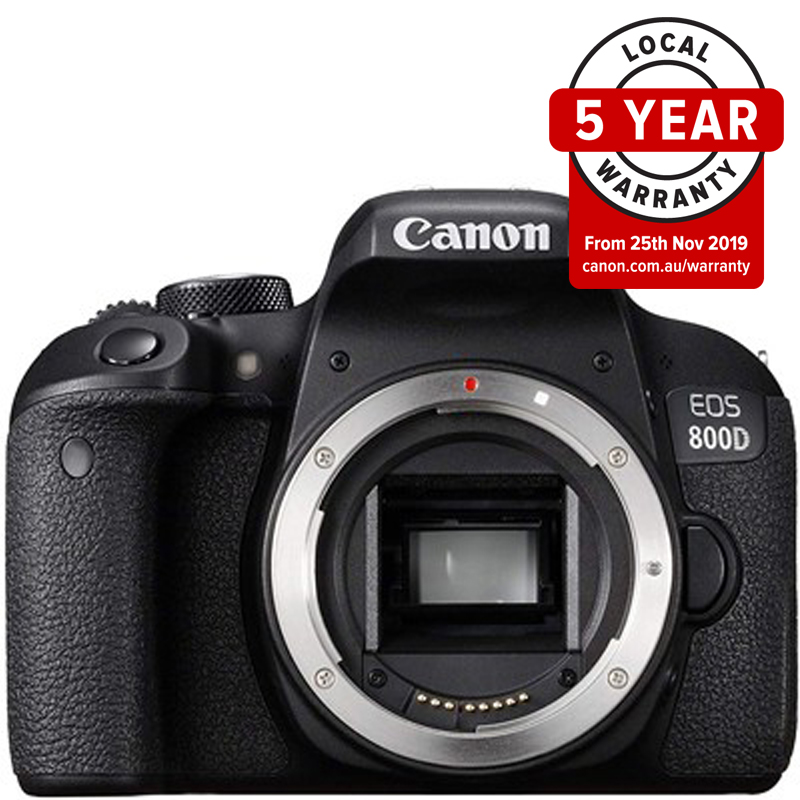

Canon EOS 800D Digital SLR Body
- 24.2MP APS-C CMOS Sensor
- DIGIC 7 Image Processor
- 45-Point All Cross-Type Autofocus System
- Full HD 1080p Video Recording at 60 fps
- Up to 6 fps Shooting and ISO 51200
- Dual Pixel CMOS AF with Phase-Detection
- Movie Electronic IS, Feature Assistant
- 3.0" 1.04m-Dot Vari-Angle Touchscreen
- Built-In Wi-Fi with NFC, Bluetooth
- HDR Movie and Time-Lapse Movie
- 5 Years Warranty from Canon Australia
With a sleek and portable body, the Canon EOS 800D Digital SLR Camera offers to give your photography a boost, with a sophisticated DSLR that’s easy to use. It utilizes 24.2MP APS-C CMOS sensor and DIGIC 7 image processor and is able to capture high-resolution stills and video with an expanded sensitivity range of up to 6 fps Shooting and ISO 51200 to work in a wide variety of lighting conditions. The camera also features 45-Point All Cross-Type Autofocus System within the Optical Viewfinder and Dual Pixel CMOS AF with Phase-detection. Having the specs of an ultimate DSLR, Full HD 1080p Video Recording at 60 fps is made possible as well as creating HDR Movie and Time-Lapse Movie and with the Movie Electronic IS, less camera shakes is promoted. The 3.0" 1.04m-Dot Vari-Angle Touchscreen is featured for intuitive settings control and live view monitoring while easy file sharing is made possible thru the Built-In Wi-Fi with NFC, Bluetooth.
Product Features in Detail
Start your DSLR journey
Packed with features, this superb entry level DSLR is perfect and easy to use for anyone wanting to get into photography. Put the DSLR in Auto mode for easy shooting, or begin to experiment in different manual modes for more creative images.
Great for Beginners
Let the camera do the heavy lifting for you, with Smart Auto mode, the camera will automatically choose settings like exposure for you - so all you have to do is get out, point and shoot.
Learn to use DSLR with easy to understand displays
If you’re unfamiliar with camera vocabulary the new DSLR’s guided interface will help you learn as you shoot. With easy-to-understand displays, the images onscreen will guide you on the different shooting effects.
Shoot, connect, share
From travel to family there is nothing better than sharing your amazing images with the world. With the Canon Camera Connect App you can instantly get social and share all your adventures from your EOS 800D.
Get in the group shots with remote shooting
Always behind the camera and never in the photos? Simply pair EOS 800D with your smartphone, change settings to remote shooting, and say cheers!
Stay connected with Bluetooth®
For a constant connection, Bluetooth® lets you browse and download photos onto your smart phone.
Learn to use your DSLR with easy to understand displays
Learn to use different shooting modes with the new visually guided interfaces. Portrait photography is easy with ‘blurry’ vs ‘non-blurry’ graphics displayed when the camera dial is in AV mode. Or capture moving subjects with ease by following the ‘flowing’ vs ‘frozen’ runner when in TV mode.
Impressive quality in every shot
Incredible image quality in all situations thanks to a large 24.2 megapixel CMOS sensor and DiG!C 7 processor. This means better details, clean, crisp images that are large enough for you to print.
Pinpoint focusing
The 45 point cross type Auto Focus will allow you to pinpoint the exact subject to focus on, whether you are taking photos of your pet running around or a small flower in the garden, choosing between zone and single Auto Focus will help you achieve outstanding results.
Super steady movies
Whether it’s sports or sunny scenes on the beach, Dual Pixel CMOS Auto Focus tracks subjects as they move, while the 5 axis image stabilizer will prevent camera shake when shooting hand-held movies.
Shoot beautiful images in low light
Capture detailed and sharp images at night with EOS 800D thanks to its smart autofocus and ISO 100-25600 extendable to 51,200.
Capture the perfect moment
Shoot multiple images quickly with 6 frames per second continuous shooting speed allowing you to freeze the action to capture the perfect expression.
Shoot from all angles
The variangle LCD touch screen monitor allows you to tilt the screen 180 degrees when opened, extremely convenient when shooting above the crowd when travelling or from lower angles.
A versatile standard zoom lens that won’t weigh you down
The ultra-portable EF-S 18-55mm f/4-5.6 IS STM lets you take your EOS to more places, delivering sharp punchy images even in low light thanks to a 4-stop Image Stabilizer. And it’s good for movies too, using STM autofocus for smooth focus transitions.
Ultra-compact design
Take your EOS DSLR to more places with a shorter, lighter standard zoom lens that’s designed for portability.
Versatility & performance
The EF-S 18-55mm f/4-5.6 IS STM can tackle a variety of subjects, from landscapes to portraits, and delivers great looking photos you’ll be proud of.
A smooth performer with movies too
The lens focuses more gradually when shooting movies, for smooth focus transitions. Its Image Stabilizer removes camera movements for steadier footage.
Easy to use
A great choice for those just starting out in photography or looking for an affordable but high quality lens. A manual focus ring provides additional creative control.
For Canon EOS 800D:
| Image Sensor |
Type
|
22.3mm x 14.9 mm CMOS
|
|
Effective Pixels
|
Approx. 24.20 megapixels
|
|
|
Total Pixels
|
Approx. 25.80 megapixels
|
|
|
Aspect Ratio
|
3:02
|
|
|
Low-Pass Filter
|
Built-in/Fixed
|
|
|
Sensor Cleaning
|
EOS integrated cleaning system
|
|
|
Colour Filter Type
|
Primary Colour
|
|
|
Image Processor
|
Type
|
DIGIC 7
|
|
Lens
|
Lens Mount
|
EF/EF-S
|
|
Focal Length
|
Equivalent to 1.6x the focal length of the lens
|
|
|
Focusing
|
Type
|
TTL-CT-SIR with a CMOS sensor
|
|
AF System/ Points
|
45 cross-type AF points
|
|
| (45 f/5.6 cross-type AF points, 27 f/8 points [9 cross-type], centre point is f/2.8 and f/5.6 dual cross-type) 1 | ||
|
AF working range
|
EV -3 - 18 (at 23°C & ISO100)
|
|
|
AF Modes
|
AI Focus
|
|
| One Shot | ||
| AI Servo | ||
|
AF Point Selection
|
Automatic selection: 45 point AF
|
|
| Manual selection: Single point AF | ||
| Manual selection: Zone AF | ||
| Manual selection: Large Zone AF | ||
| AF points can be selected separately for vertical and horizontal shooting | ||
|
Selected AF point display
|
Indicated by a transmissive LCD in viewfinder and Quick Control screen
|
|
|
Predictive AF
|
Yes, up to 8m2
|
|
|
AF Lock
|
Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.
|
|
|
AF Assist Beam
|
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
|
|
|
Manual Focus
|
Selected on lens
|
|
|
Exposure Control
|
Metering modes
|
7560-pixel RGB+IR metering sensor
|
| Metering with the area divided into 63 segments (9×7) | ||
| (1) Evaluative metering (linked to all AF points) | ||
| (2) Partial metering (approx. 6.0% of viewfinder) | ||
| (3) Spot metering (approx. 3.5% of viewfinder) | ||
| (4) Center-weighted average metering | ||
|
Metering Range
|
EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)
|
|
|
AE Lock
|
Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
|
|
| Manual: By AE lock button in creative zone modes. | ||
|
Exposure Compensation
|
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
|
|
|
AEB
|
3 shots +/-3 EV 1/3 or 1/2 stop increments
|
|
|
ISO Sensitivity
|
Auto (100-25600), 100-25600 (in 1/3-stop or whole stop increments)
|
|
| ISO can be expanded to H: 51200 | ||
| During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 256003 | ||
|
Shutter
|
Type
|
Electronically-controlled focal-plane shutter
|
|
Speed
|
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
|
|
|
White Balance
|
Type
|
Auto white balance with the imaging sensor
|
|
Settings
|
AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White
|
|
| Fluorescent light, Flash, Custom, Colour Temperature Setting. | ||
| White balance compensation: | ||
| 1. Blue/Amber +/-9 | ||
| 2. Magenta/ Green +/-9. | ||
|
Custom White Balance
|
Yes, 1 setting can be registered
|
|
|
WB Bracketing
|
+/-3 levels in single level increments
|
|
| 3 bracketed images per shutter release. | ||
| Selectable Blue/Amber bias or Magenta/ Green bias. | ||
|
Viewfinder
|
Type
|
Pentamirror
|
|
Coverage (Vertical/Horizontal)
|
Approx. 95%
|
|
|
Magnification
|
Approx. 0.82x 4
|
|
|
Eyepoint
|
Approx. 19mm (from eyepiece lens centre)
|
|
|
Dioptre Correction
|
-3 to +1 m-1 (dioptre)
|
|
|
Focusing Screen
|
Fixed
|
|
|
Mirror
|
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)
|
|
|
Viewfinder Information
|
AF information: AF points, focus confirmation
|
|
| Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB. | ||
| Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light. | ||
| Image information: Card information, maximum burst (1 digit display), Highlight tone priority (D+). | ||
| Composition information: Grid, Electronic level, Aspect Ratio | ||
| Other information: Warning icon, Flicker Detection | ||
|
Depth of field preview
|
Yes, with Depth of Field preview button.
|
|
|
Eyepiece shutter
|
On strap
|
|
|
LCD Monitor
|
Type
|
Touch screen Vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots
|
|
Coverage
|
Approx. 100%
|
|
|
Viewing Angle (horizontally/vertically)
|
Approx 170°
|
|
|
Coating
|
Anti-reflection and Anti smudge
|
|
|
Brightness Adjustment
|
Adjustable to one of seven levels
|
|
|
Display Options
|
(1) Quick Control Screen
|
|
| (2) Camera settings | ||
| (3) Electronic Level | ||
|
Flash
|
Built-in Flash GN (ISO 100, meters)
|
12
|
|
Built-in Flash Coverage
|
up to 17mm focal length (35mm equivalent: 27mm)
|
|
|
Built-in Flash recycle time
|
Approx. 3 seconds
|
|
|
Modes
|
Auto, Manual flash, Integrated Speedlite Transmitter
|
|
|
Red-Eye Correction
|
Yes - with red-eye reduction lamp
|
|
|
X-sync
|
1/250sec
|
|
|
Flash Exposure Compensation
|
'+/- 3EV in 1/2 or 1/3 increments
|
|
|
Flash Exposure Bracketing
|
Yes, with compatible External Flash
|
|
|
Flash Exposure Lock
|
Yes
|
|
|
Second Curtain Synchronisation
|
Yes
|
|
|
HotShoe/ PC terminal
|
Yes/ No
|
|
|
External Flash Compatibility
|
E-TTL II with EX series Speedlites, wireless optical multi-flash support
|
|
|
External Flash Control
|
via camera menu screen
|
|
|
Shooting
|
Modes
|
Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, SCN(,Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie),
|
|
Picture Styles
|
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
|
|
|
Colour Space
|
sRGB and Adobe RGB
|
|
|
Image Processing
|
Highlight Tone Priority
|
|
| Auto Lighting Optimizer (4 settings) | ||
| Long exposure noise reduction | ||
| High ISO speed noise reduction (4 settings) | ||
| Multi Shot Noise Reduction | ||
| Auto Correction of Lens Peripheral illumination, Chromatic aberration correction, Distortion correction, Diffraction correction | ||
| Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Art bold effect, Water painting effect, Toy camera effect, Miniature effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed) | ||
| Multi-exposure | ||
| RAW image processing - during image Playback only | ||
| Resize to M or S1, S2, S3 | ||
|
Drive modes
|
Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote), Silent single shooting, Silent continous shooting
|
|
|
Continuous Shooting
|
Max. Approx. 6fps. (speed maintained until card is full) (JPEG)56(with UHS-I card), 27 images (RAW)(with UHS-I card))78
|
|
|
Live View Mode
|
Type
|
Electronic viewfinder with image sensor
|
|
Coverage
|
Approx. 100% (horizontally and vertically)
|
|
|
Frame Rate
|
29.97 fps
|
|
|
Focusing
|
Manual Focus (Magnify the image 5x or 10x at any point on screen)
|
|
| Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single) | ||
| One-shot AF and Servo AF selectable for Stills and Movie | ||
|
Metering
|
Real-time evaluative metering with image sensor.
|
|
| Evaluative metering, partial metering, spot metering, center-weighted average metering. | ||
|
Display Options
|
Grid overlay (x3), Histogram, Electronic level,
|
|
|
File Type
|
Still Image Type
|
JPEG: Fine, Normal (Exif 2.30 [Exif Print] compliant) / Design rule for Camera File system (2.0),
|
| RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition), | ||
| Digital Print Order Format [DPOF] Version 1.1 compliant | ||
|
RAW+JPEG simultaneous recording
|
Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.
|
|
|
Image Size
|
JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 1920x1280, (S3) 720x480
|
|
| JPEG 4:3: (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 1696x1280, (S3) 640x480 | ||
| JPEG 16:9: (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 1920x1080, (S3) 720x408 | ||
| JPEG 1:1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1280x1280, (S3) 480x480 | ||
| RAW: (RAW) 6000x4000, (M-RAW) 4500x3000, (S-RAW) 3000x2000 | ||
|
Movie Type
|
MP4 (Video: H.264 Intra frame / inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user)
|
|
|
Movie Size
|
1920 x 1080 (59.94, 50 fps) inter-frame
|
|
| 1920 x 1080 (29.97, 25, 23.98 fps) inter frame | ||
| 1920 x 1080 (29.97, 25) lite inter-frame | ||
| 1280 x 720 (59.94, 50 fps) inter-frame | ||
| 1280 x 720 (29.97, 25) lite inter-frame | ||
| 640 x 480 (29.97, 25) inter-frame | ||
| 640 x 480 (29.97, 25) lite interframe | ||
|
Movie Length
|
Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically)
|
|
|
Folders
|
New folders can be manually created and selected
|
|
|
File Numbering
|
(1) Consecutive numbering
|
|
| (2) Auto reset | ||
| (3) Manual reset | ||
|
Other Features
|
Custom Functions
|
15 Custom Functions
|
|
Metadata Tag
|
User copyright information (can be set in camera)
|
|
| Image rating (0-5 stars) | ||
|
LCD Panel / Illumination
|
Yes / Yes
|
|
|
Intelligent Orientation Sensor
|
Yes
|
|
|
Playback zoom
|
1.5x - 10x
|
|
|
Display Formats
|
(1) Single image with information (2 levels)
|
|
| (2) Single image | ||
| (3) 4 image index | ||
| (4) 9 image index | ||
| (5) 36 image index | ||
| (6) 100 image index | ||
| (7) Jump Display | ||
|
Slide Show
|
Choose images with Image Search
|
|
| Playback time: 1/2/3/5/10/20 seconds | ||
| Repeat: On/Off | ||
| Background music: On/Off | ||
| Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3 | ||
|
Histogram
|
Brightness: Yes
|
|
| RGB: Yes | ||
|
Highlight Alert
|
Yes
|
|
|
Image Erase/Protection
|
Erase: Select image, select range, all images in folder, all images on a card, all found images (during image search)
|
|
| Protection: Single image, select range, all images in folder, all images on a card, all found images (during image search) | ||
|
Menu Categories
|
(1) Shooting menu (x5)
|
|
| (2) Playback menu (x3) | ||
| (3) Setup menu (x4) | ||
| (4) Display Options menu | ||
| (5) My Menu | ||
|
Menu Languages
|
25 Languages
|
|
| English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese | ||
|
Firmware Update
|
Update possible by the user.
|
|
|
Interface
|
Computer
|
Hi-Speed USB
|
|
Other
|
Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack)
|
|
|
Direct Print
|
Canon Printers
|
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
|
|
PictBridge
|
Yes
|
|
|
Storage
|
Type
|
SD, SDHC or SDXC (UHS-I)card
|
|
Supported Operating System
|
PC & Macintosh
|
Windows 10 / 8.1 / 8 / 7(*)
|
| * With Microsoft .NET Framework 4.5 is installed. | ||
| Mac OS X 10.9, 10.10, 10.11 | ||
|
Software
|
Image Processing
|
Digital Photo Professional 4.4.0 (RAW Image Processing)
|
|
Other
|
EOS Utility
|
|
| EOS Lens Registration Too | ||
| EOS Web Service Registration Tool | ||
| EOS Sample Music | ||
| Picture Style Editor | ||
|
Power Source
|
Batteries
|
1 x Rechargeable Li-ion Battery LP-E17
|
|
Battery life
|
Viewfinder: Approx. 600 (at 23°C, AE 50%, FE 50%) 9
|
|
| Viewfinder: Approx. 550 (at 0°C, AE 50%, FE 50%) | ||
| Live View: Approx. 270 (at 23°C, AE 50%, FE 50%) | ||
| Live View: Approx. 230 (at 0°C, AE 50%, FE 50%) | ||
|
Battery Indicator
|
6 levels + percentage
|
|
|
Power saving
|
Power turns off after 10/30 (10 sec viewfinder/30 sec live view, functions, image playback etc) sec, 30 sec, 1, 2, 4, 8, or 15 mins.
|
|
|
Accessories
|
Viewfinder
|
Eyecup Ef
|
| Rubber Frame Ef, E-series Dioptric Adjustment Lenses | ||
| Eyepiece Extender EP-EX15II | ||
| Magnifier MG-Ef | ||
| Angle Finder C | ||
|
Case
|
Leather case EH21-L
|
|
|
Wireless File Transmitter
|
Built in Wi-Fi transmission
|
|
| Connectivity to Smart devices is possible with Android version 4.0-4.4/5.0-5.1 or iOS 7.1/8-8.3. | ||
| NFC connectivity is possible only with compatible Android devices | ||
| Remote Wi-Fi zoom operation of EF-S 18-135mm f/3.5-5.6 IS USM via the optional Power Zoom Adapter PZ-E1 is only possible on EOS 80D using a compatible smart device or supplied EOS utility software | ||
|
Lenses
|
All EF and EF-S lenses
|
|
|
Flash
|
Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
|
|
|
Remote Controller/ Switch
|
Remote Switch RS-60E3, Remote Controller RC-6, Remote Controller BR-E1
|
|
|
Other
|
Hand Strap E2, GP-E2
|
Subject to change without notice.
This product comes with 5 Years Warranty from Canon Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
