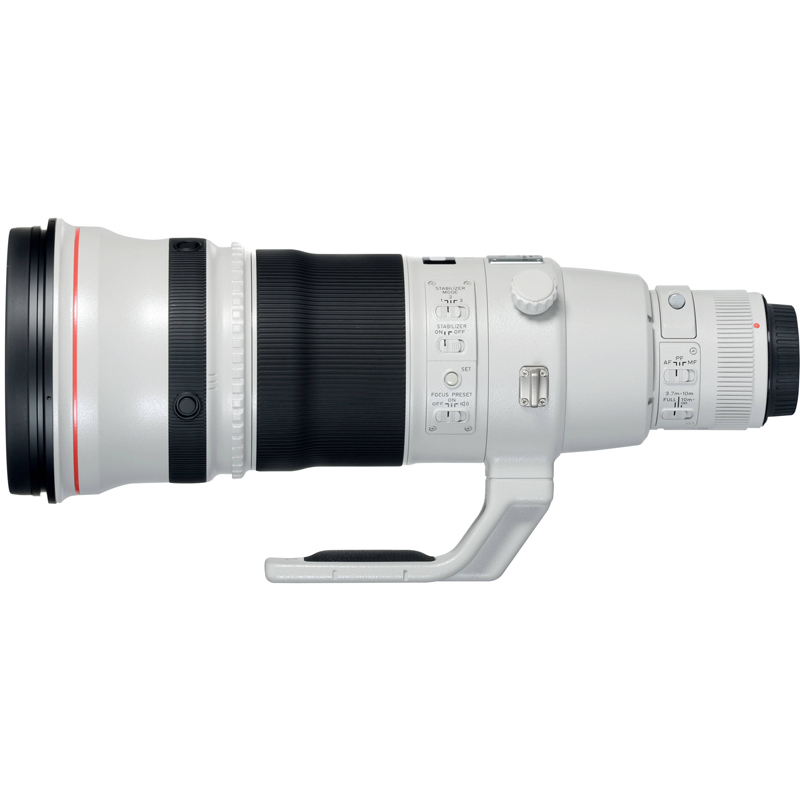

Canon EF 500mm f/4L IS II USM Lens
- f/4-32 Aperture Range
- 500mm Focal Length
- Fluorite Optics for Sharper Images
- Dustproof and Moisture Proof Sealing
- Three Mode Optical Image Stabilization
- Power Focus Mode and Focus Preset
- Ultrasonic Autofocus Motor
- Manual Focus Override
- Magnesium/Titanium for Lighter Weight
- Attachment Slot for Wire-type Lock
- EF Mount L-Series Lens
- Compatibility: with APS-C and Full Frame Sensor DSLR Cameras
- 5 Years Warranty from Canon Australia
EF 500mm f/4L IS II USM Camera Lens boasts a focal length of 500mm and f/4-32 Aperture Range. It incorporates Three Mode Optical Image Stabilization to gain sharp images at slower shutter speeds with 4-stop advantage. It also includes fluorite optics for sharper images to correct aberrations and bring high definition and sharpness. The Ultrasonic Autofocus Motor runs the autofocus for high speed yet silent focusing with autofocus stop button feature plus Power Focus Mode and Focus Preset to fully control the Manual Focus Override. The EF Mount L-Series Lens has superior performance with excellent handling, and is made to be dust and moisture proof. It is compatible with APS-C and Full Frame Sensor DSLR Cameras.
Product Features in Detail
Compact lightweight super-telephoto
The EF 500mm f/4L IS II USM features a lightweight magnesium alloy and titanium construction, which reduces weight without compromising on strength and build quality.
Sophisticated optical design
A complex optical design that features fluorite and UD lens elements to tackle aberrations and distortions. A fast f/4 maximum aperture enables use of the Canon Extender EF 2.0x III while retaining AF on EOS-1 series cameras.
Fast, quiet auto focus
A ring USM (Ultrasonic motor) uses ultrasonic frequency vibrations to drive extremely rapid auto focus with near-silent operation. A high-speed CPU and optimised AF algorithms contribute further to AF speed. Full time electronic manual focus override is available without having to switch out of AF.
Image Stabilizer
Built-in Image Stabilizer technology enables hand-held shooting with shutter speeds up to four stops slower than normal without incurring camera shake. Multiple IS modes improve image quality when panning.
IS Mode 3
Ideally suited for all types of action photography especially those disciplines that require the utilisation of panning, the new IS mode 3 only activates the Image Stabilizer element during exposure.
Enhanced image quality with SWC coating
Designed for use in digital photography, Canon’s patented Subwavelength structure coating helps minimise the ghosting and flare caused by internal reflections. By eliminating the cause, the coating reduces reflections and helps to deliver crisp, clear images.
Power focusing
The EF 500mm f/4L IS II USM’s two-speed Power Focus mode allows focus to be adjusted at a smooth constant speed – perfect when shooting video.
L-series quality
The L-series is Canon's flagship professional lens range, representing the best in precision-designed EF optics. L-series lenses combine superior performance with superlative handling, and are resistant to dust and moisture.
Accessories
The EF 500mm f/4L IS II USM is supplied with Lens Hood (ET-138 WII), Lens Cap (E-163B) and Lens case 500B.
Angle of view (horzntl, vertl, diagnl)
|
4°, 2°45', 5°
|
Lens construction (elements/groups)
|
16/12
|
No. of diaphragm blades
|
9
|
Minimum aperture
|
32
|
Closest focusing distance (m)
|
3.7
|
Maximum magnification (x)
|
0.15
|
Distance information
|
Provided
|
Image stabilizer
|
4-stops
|
AF actuator
|
Ring USM¹
|
Dust/moisture resistance
|
Yes
|
Filter diameter (mm)
|
52 Drop in
|
Max. diameter x length (mm)
|
146 x 383
|
Weight (g)
|
3190
|
Magnification - Extension Tube EF12 II
|
0.18-0.03
|
Magnification - Extension Tube EF25 II
|
0.22-0.06
|
Lens hood
|
ET-138 (WII)
|
Soft case
|
Lens Case 500B
|
G.F.Holder III (hood III*)
|
NC¹
|
G.F.Holder IV (hood IV*)
|
NC¹
|
Extenders EF1.4x II and EF2x II
|
Compatible
|
Canon EF 500mm f/4L IS II USM Camera Lens
E-163B Lens Cap
Rear Lens Cap
ET-138W II Lens Hood
500B Lens Case
Drop-In Filter Holder for 52mm
