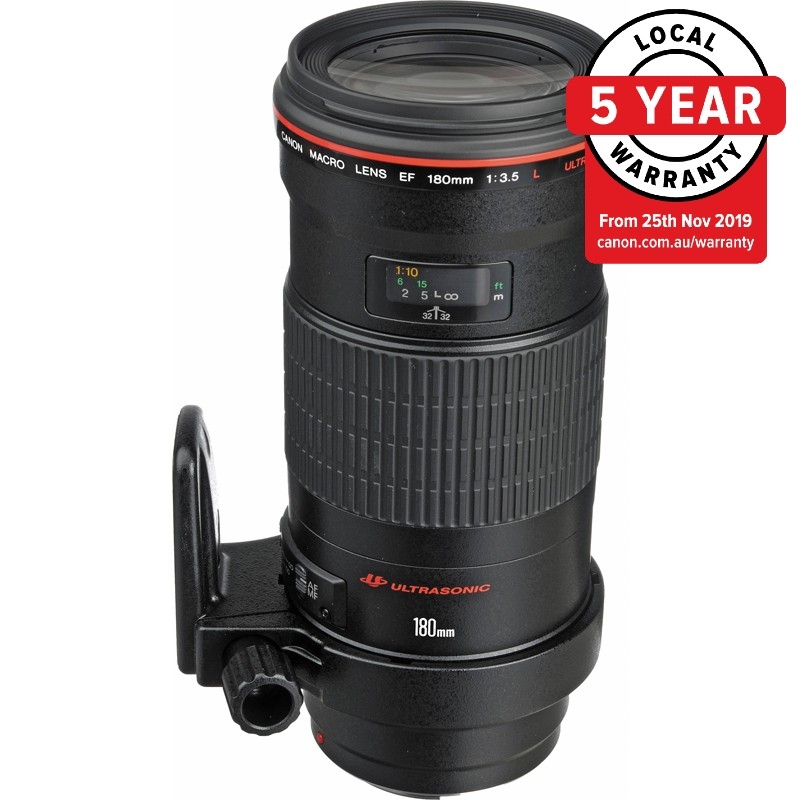

Canon EF 180mm f/3.5L Macro USM Lens
- EF Mount L-Series Lens
- f/3.5-32 Aperture Range
- 19" Minimum Focus Distance
- True Macro 1:1 Magnification
- Ultra-low Dispersion Optical Elements
- Ultrasonic Autofocus Motor
- Manual Focus Override
- Focusing Range Limiter
- Removable, Rotatable Tripod Collar
- Fits EF1.4x II & EF2x II Extenders
- 5 Years Warranty from Canon Australia
The EF 180mm f/3.5L Macro USM is a high quality telephoto lens that adapts True Macro 1:1 Magnification. The fast yet silent autofocus is driven by Ultrasonic Focus Motor which also allows manual focus override even at AF mode. The lens construction consists of Ultra-Low Dispersion Lens Elements. This lens offers f/3.5-32 Aperture Range, and 19"Minimum Focus Distance. The Focus Range Limiter controls the AF range where you can choose a suitable focusing distance range with the shortened actual autofocus time.
Product Features in Detail
Telephoto macro lens
The EF 180mm f/3.5L Macro USM is a telephoto macro lens which offers a maximum magnification of 1.0x. Life-size close-ups can be taken from further away, and at less risk of disturbing the subject (ideal for insects and other wildlife). The internal floating focusing system minimizes fluctuations in aberrations caused by changes in focusing distance. This ensures the lens is razor sharp from 1.0x to infinity.
L-series quality
Incorporates Canon’s highest standards of precision engineering and optical superiority. The L-series is Canon’s flagship professional lens range, combining outstanding image definition and ultimate performance with all-weather construction to prevent dust and moisture ingress.
Ring USM auto focus with manual override
Canon’s ring USM auto focus system employs ultra-sonic frequency vibrations for fast, accurate and virtually silent operation. Full-time manual focus override, via a large ring that does not move during auto focus, allows photographers to fine-tune focusing instantly.
Super Spectra coating
Super Spectra coatings help ensure accurate colour balance and high contrast, while suppressing flare and ghosting by absorbing stray light that might be reflected off internal lens elements and image sensor.
Accessories
The lens comes supplied with a lens hood and a soft case.
Angle of view (horzntl, vertl, diagnl)
|
11°25', 7°40', 13°40'
|
Lens construction (elements/groups)
|
14/12
|
No. of diaphragm blades
|
8
|
Minimum aperture
|
32
|
Closest focusing distance (m)
|
0.48
|
Maximum magnification (x)
|
1
|
AF actuator
|
USM¹
|
Filter diameter (mm)
|
72
|
Max. diameter x length (mm)
|
82.5 x 186.6
|
Weight (g)
|
1,090
|
Magnification - Extension Tube EF12 II
|
1.09 - 0.07
|
Magnification - Extension Tube EF25 II
|
1.21 - 0.15
|
Lens Cap
|
E-72U / E-72II
|
Lens hood
|
ET-78II
|
Hard case
|
LH-D24C
|
Soft case
|
LZ1324
|
Footnotes
AF actuator - ¹ Mechanical full-time manual focusing built-in.
Canon EF 180mm f/3.5L Macro USM Camera Lens
E-72 II 72mm Lens Cap
Lens Dust Cap E (Rear)
Tripod Mount Ring B
