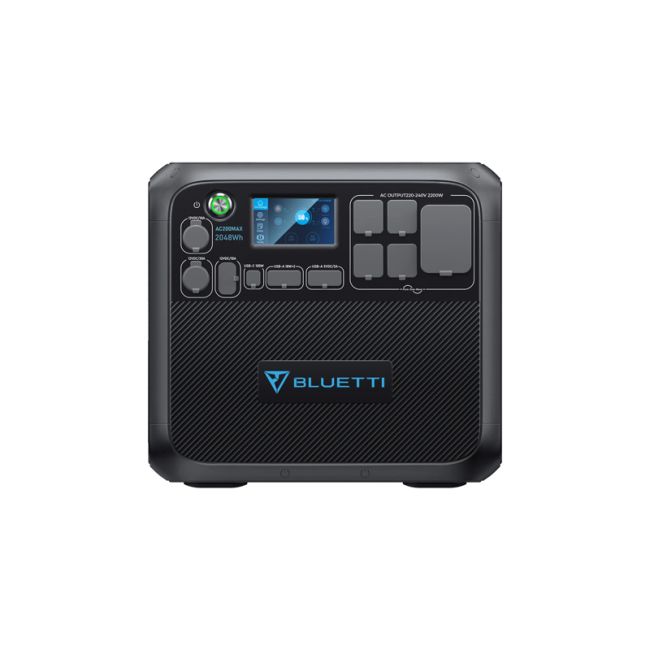

Bluetti AC200MAX Expandable Power Station (2,200W)
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B300, or 8,192Wh with 4×B230
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
The Bluetti AC200MAX Expandable Power Station is a high-capacity power bank that combines various charging options and a LiFePO4 battery with a 3,500+ life cycle to 80%. The power station features an AC pure sine wave inverter with a 2,200W continuous output and a 4,800W surge capacity. It has a 2,048Wh battery capacity, allowing it to power multiple devices for extended periods.
The power station uses a LiFePO4 battery, which provides high performance and durability, and can endure 3,500+ charging cycles up to 80% capacity. It is expandable up to 6,144Wh by adding two B300 or up to 8,192Wh by adding four B230 batteries, providing users with the flexibility to increase its capacity as needed. The power station can be recharged from seven different sources, including AC, solar panels, a car battery, a generator, and a lead-acid battery, offering plenty of options for charging. It can handle up to a 900W solar input, letting you charge it quickly and efficiently.
The fast dual charging allows you to charge it simultaneously through solar panels and AC adapters, with a maximum capacity of 1400W. With the Bluetti App, it can provide access to smart control and monitoring, letting you check the battery status, power output, and charging time.
The Bluetti AC200MAX Expandable Power Station is a powerful and versatile portable power source that combines a high-capacity battery and various charging options, allowing you to power multiple devices and extend the battery life of various tools. The expandable storage option and smart control features make this power station an excellent choice for users who need to power a wider range of devices over a longer period.
Product Features in Detail
All-round Upgraded Expandable Power Station
BLUETTI first expandable power station-AC200MAX with 2,048Wh LiFePO4 cells and 2,200W pure sine wave inverter.
Your mobile power center at home or on the way.
Less To Spend, More To Love
Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
Get Charged In Anyway You Prefer
The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).
Small Change, Huge Leap
The AC200 Max can now take one module via its solar input port with a converter cable for extra capacity!
Incomparable Outlet Versatility
With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.
| BATTERY INFO | |
| Capacity | 2,048Wh (51.2V, 40Ah) |
| Type | LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles | 3,500+ Cycles to 80% Original Capacity |
| Shelf-life | Recharge to 80% Every 3-6 Months |
| Management System | MPPT Controller, BMS, etc |
| OUTPUT | |
| AC Outlets | 4 x 120V/20A Outlets |
| 1 x 120V/30A NEMA TT-30 | |
| 2200W In Total | |
| Inverter Type | Pure Sine Wave |
| Surge Power | 4800W |
| USB-C Port | 1 x 100W Max. |
| USB-A Port | 2 x 5V/3A USB-A |
| 2 x 18W USB-A | |
| 12V DC Outlets: | |
| 1 x 12V/30A (RV Outlet) | |
| 1 x 12V/10A (Car Outlet) | |
| 2 x 12V/10A DC 5521 (5.5mm Outlet) | |
| *All Regulated. | |
| Wireless Charging Pad | 2 x 15W Max. (For Each) |
| INPUT | |
| AC Adapter Input | 500W. |
| Solar Input | 900W Max., VOC 10-145VDC, 15A |
| Car Input | 12/24V from Cigarette Lighter Port |
| Max Input | 1,400W, with AC+Solar Input |
| RECHARGE TIME | |
| AC Adapter (500W) | ≈5.5~6 Hours |
| Solar (900W) | ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| 12V/24V Car Outlet (100W/200W) | ≈10 or 20 Hours |
| AC Adapter + Solar (1400W) | ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| Dual AC Adapters (1000W) | ≈3~3.5 Hours (Extra adapter is REQUIRED) |
| GENERAL | |
| 240V Split Phase Bonding | No. Need 240V power source. |
| Scalability | Expandable w/ Up to 2 x B230 or 2 x B300 |
| Pass-through Charging | Yes |
| Weight | 61.9lbs (28.1kg) |
| Dimensions (LxWxD) | 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm) |
| Operating Temperature | -4-104℉ (-20-40℃) |
| Storage Temperature | 14-113℉ (-10-45℃) |
| Certifications | UL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC |
This product comes with 48 Months Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Bluetti AC200MAX Expandable Power Station (2,200W)
T400 AC Adapter & Cable
Car Charging Cable (X190)
PV Charging Cable (XT90-MC4)
XT-90 Aviation Cable
