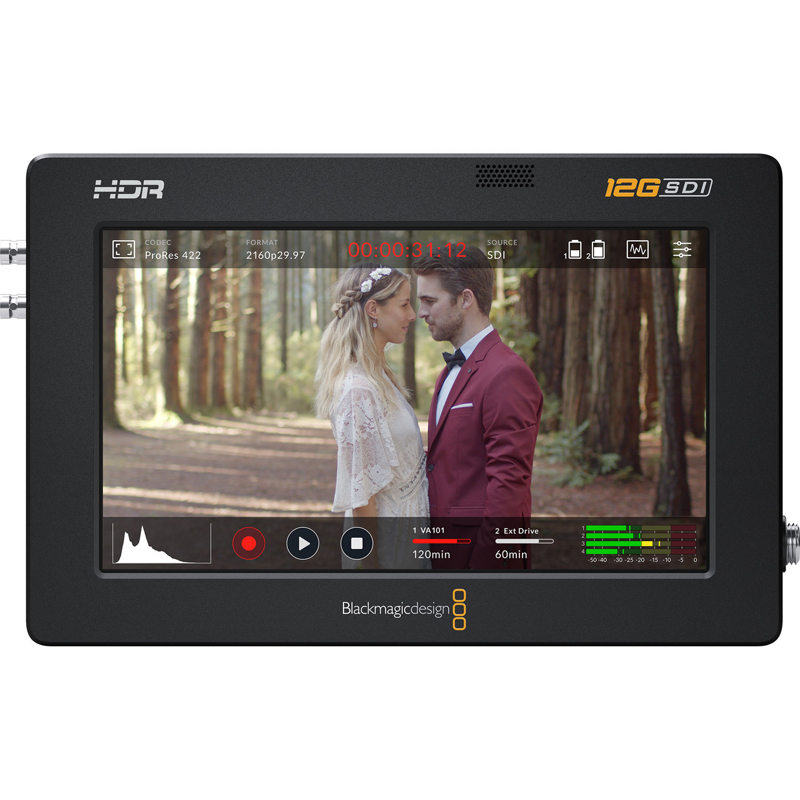

Blackmagic Video Assist 5" 12G HDR

A$1,518.00

Check Stock

Please contact us to check the ETA for this product

Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
  • 5" 1920 x 1080 Touchscreen LCD
  • Record up to DCI or UHD 4K HDR Video
  • HDMI and 12G-SDI Video Inputs & Outputs
  • 10-Bit, 4:2:2 ProRes & DNxHD Encoding
  • One UHS-II SD Slot to SDHC/XC Memory Cards

Liven up and add professional touch to your video monitoring and recording with the Blackmagic Video Assist 12G. Built with 5" 1920 x 1080 Touchscreen LCD, it will help you frame and focus your shots in 2500 cd/m² brightness via HDMI and 12G-SDI video inputs and outputs. The 12G version of video assist is capable of monitoring and recording video resolutions up to DCI or UHD 4K HDR Video or 10-Bit, 4:2:2 ProRes and DNxHD Encoding. The audio and sound recording can be stored in the single UHS-II SD Slot to SDHC/XC Memory Card.


Product Features in Detail



Perfect for Digital Cinema, Broadcast Test and Live Production!
Blackmagic Video Assist is so versatile it can be used for hundreds of tasks! Add it onto your camera rig to get a large screen viewfinder with modern record codecs, focus assist features and 3D LUTS! Video Assist is also an ultra portable scope that lets you test equipment in broadcast and live production to ensure your video levels are correct and all your gear is working correctly. If you're doing live production then Video Assist is just like a large screen HyperDeck so it can be used as a mastering recorder, or as a clip player for inserting ads or promos into live programs. You can even use it as an ISO recorder with each camera having a dedicated monitor and recorder!


Blackmagic Video Assist 5" 12G HDR
This model includes all of the 3G model features, but has faster 12G‑SDI and Ultra HD HDMI connections for all formats up to 2160p60. This model includes a bright wide gamut LCD for HDR as well as HDR scopes. Plus a locking power connector. This model also records to an SD card or USB‑C flash disks!


Modern Design with Latest Technology and Amazing Screens!
All Video Assist models are dominated by a large touchscreen with all controls for recording, playback of clips, viewing scopes and setting focus assist features. Both 7" models are large enough to include analog inputs for audio and two SD card slots so you get continuous recording, with automatic recording to the second card. Both of the 12G models include 12G-SDI and Ultra HD HDMI connections and USB-C for recording direct to external flash media disks. All models include a rear tally light, a front panel speaker for clip playback and a headphone jack! Video Assist uses Sony L-Series batteries, and with 2 battery slots, you can change batteries without interrupting recording!


Transform Camera Usability with Video Assist!
Traditional cameras are designed for shoulder mounted operation, so are a compromise. Hours spent leaning into a viewfinder for long tripod mounted shoots can be tough! Video Assist will transform your shooting style with an on-board rigged screen. It's much more comfortable using a screen rigged to a position best suited for a shooting setup. Plus you get better situational awareness for the operator, assistant or director. With both 5" and 7" models, you choose the size of a rigged monitor that suits you best. Plus you're also adding fantastic features such as focus zoom, focus peaking, zebras, histogram, false color, scopes, frame markers, frame guides, touchscreen and more!


Customize your Touchscreen Tools and Features
With large and bright 5" and 7" touchscreens, Video Assist makes it incredible easy to frame shots and accurately focus. The touchscreen displays critical information while you’re shooting including the timecode, transport control, audio meters and a histogram for exposure. You can also customize the LCD to add or remove overlays such as current filename, focus peaking, zebra, false color, frame guides, 3D LUTs and more. 3D LUTs support allows monitoring shots with the desired color and look, plus you can even "bake in" the LUT if you want to record it into the file. If you're using Blackmagic RAW, the 3D LUT is only added into the metadata so it can be disabled in post production.


Dual Media Recorders for Uninterrupted Recording
Video Assist uses commonly available SD card media, so you can record to flash memory cards that are easy to obtain. The files are small enough to allow long recordings on standard SD cards or the faster UHS-II cards. The larger Video Assist 7" models include 2 SD card slots so you can swap out any full cards even during recording, allowing infinite length recording. Standard SD cards or the faster UHS-II cards are perfect for broadcast because they are small, high speed and affordable.


Upgrade to Better Recording for Digital Cameras
Blackmagic Video Assist is an ideal upgrade for cameras, as its bright display is bigger than the tiny displays found on consumer cameras, plus you're also adding professional focus assist features and better quality file formats. Video Assist is also a great solution for professional cameras because you can use it to upgrade older broadcast cameras to modern file formats used on the latest editing software. You get support for all editing software as you can record in Apple ProRes and Avid DNx. You can even use Blackmagic RAW on supported cameras. With both HDMI and SDI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras.


Large HDR Monitor with Easy Touch Controls
The innovative touchscreen LCD user interface provides incredible control. On screen, there are dedicated buttons for play, stop and record, plus a mini timeline for scrolling through your recordings. You can even image swipe to jog! The LCD includes a heads up display of timecode, video standard, media status as well as audio meters. Scopes can be enabled via the touchscreen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load and save 3D LUTs!


Advanced HDR Models Include 12G‑SDI and HDMI 2.0!
Video Assist features a wide range of video and audio connections such as multi-rate SDI for SD, HD on all models and Ultra HD on the 12G-SDI models. HDMI is included for HDMI cameras and monitoring to consumer televisions and video projectors. The 7" model features Mini XLR inputs which are provided for audio input from microphones and external audio mixers. The USB-C connection lets you plug in external flash disks or SSDs for recording, which means you can get extremely long record durations because flash disks are often much larger than the physically smaller SD Cards. Video Assist even includes a 12V DC power connection and the 12G models include a locking power connector.


Post Production Friendly File Formats!
Video Assist records using standard open file formats so you don’t have to waste time transcoding media. Files are compatible with all post production software so you can work with the software of your choice, including DaVinci Resolve Studio. Recording works in industry standard 10-bit ProRes or DNx files in all formats and from all HDMI or SDI cameras, as well as 12-bit Blackmagic RAW on the 12G-SDI HDR models when connected to supported cameras. Blackmagic RAW is the fastest growing RAW format and developers can download and use the free Blackmagic RAW SDK to add support to their applications. Best of all media files work on all operating systems!


Video Assist 12G HDR Models Include Blackmagic RAW Recording!
Blackmagic RAW is a revolutionary format designed to capture the quality of sensor data from cameras. Video Assist supports Blackmagic RAW recording from popular cameras such as Sigma fp, Panasonic EVA1 and Canon C300 MK II. Popular camera formats such as H.264 are highly compressed resulting in noise and processing artifacts. Blackmagic RAW eliminates these problems so you get incredible detail and color throughout the production pipeline from camera to edit, color and mastering. It also saves camera settings in metadata so you can set ISO, white balance and exposure, then override them later while editing. Only Blackmagic RAW gives you the highest quality, smallest files and fastest performance!


Record Direct to External USB‑C Media Disks
The Blackmagic Video Assist 12G models even include a USB-C expansion port so you can plug in an external flash disk for recording. USB‑C flash disks have massive capacity as they don't suffer from any size constraint. Plus, it's possible to record to the same disk you are using or editing, so you don't need to waste time copying files before starting post production. Flash disks are so fast, they can record high data rate formats such as high frame rate Ultra HD. Imagine adding a Blackmagic MultiDock 10G for easy SSD compatibility so you can record across multiple disks as each disk fills. You even get on screen menus for managing external disks using the touch screen!


Built In Scopes Ensure Compliance to Standards
Video Assist features scopes for accurate exposure on cameras and compliance to broadcast standards. That means it’s also a great portable waveform monitoring solution! The waveform display provides a traditional luminance (brightness) level view of the video inputs or the playback signal. The vectorscope allows you to see the intensity of color at 100% SDI reference levels. You also get a RGB parade display which is ideal for color correction. Histogram shows the distribution of white to black detail in your images and highlights or shadows clipping. The built in scopes can even be overlaid on live video, or as a small picture in picture view at the top right of the scope!


HDR Models Include Bright Wide Gamut Screens!
On the Video Assist 12G models you'll be ready for the latest HDR workflows as they support the latest HDR standards and include an extremely bright screen with a wide color gamut. Plus the high brightness screen makes shooting outdoors in sunlight easy! The built in scopes even support HDR when required. Files are tagged with the correct HDR information which means SDI and HDMI inputs will also automatically detect HDR video standards. Static metadata PQ and HLG formats are handled according to the ST2084 standard. The bright LCD has a wider color gamut so it can handle both Rec. 2020 and Rec. 709 colorspaces. The Video Assist LCD color gamut can even handle 100% of the DCI‑P3 format.


Load Custom 3D LUTs to Recreate Film Looks!
Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. LUTs can be applied temporarily for monitoring only, or they can be burned into files for use in editing when capturing Blackmagic RAW. Video Assist works with industry standard 17 and 33 point 3D LUT files, or you can work with the built in LUTs such as Extended Video, Film to Video and more.


Direct Metadata
 Entry for Faster Editing!
The advanced digital slate and metadata features make it extremely fast to add metadata to any shot! Simply swipe left or right from the edge of the screen to bring up the digital slate. You can even select for take numbers to be automatically incremented when you start and stop recording, so you don’t have to enter them manually for each shot! You can also set reel numbers to increment each time you format a card. All metadata is saved with the files and available in post production with software such as DaVinci Resolve!


Latest Multi Rate 12G SDI for SD, HD and Ultra HD
You get full support for the most popular video standards. The SDI and HDMI connections are multi-rate, so all models handle SD and HD television standards plus the 12G models add extra support for Ultra HD standards. Standard definition formats include NTSC and PAL. 720p HD standards include 720p50 and 59.94p. 1080i HD interlaced formats include 1080i50 and 59.94. 1080p HD formats include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. Plus you can even work in 1080 PsF formats. On the Blackmagic Video Assist 12G models you also get support for Ultra HD formats up to 2160p59.94. On these 12G models you can even record 2K and 4K DCI rates up to 25p for digital film work!


Professional Multi Channel SDI and Analog Audio
Blackmagic Video Assist includes a built in professional audio recorder that’s much better quality than the audio found in most cameras, eliminating the need to carry around extra audio equipment. When working in SDI formats, you can record 2, 4, 8 or 16 channels of audio. For connecting microphones the 7" models have 2 XLR analog audio inputs with phantom power and high definition audio sample rates of 192 kHz at 16 and 24 bit per sample. The audio meters can even be changed between VU or PPM ballistics. Blackmagic Video Assist 12G features the latest audio technology to ensure low noise floor and very low distortion so you can use it for digital cinema and broadcast work.


Localized for 11 Popular Languages
Multiple languages are fully supported so you don't need to learn another language to use it! Support is included for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese and Turkish. At first start, Video Assist will display a menu for selecting a language, plus you can switch languages in the menus. When a language is selected, the on screen text overlays will change to the selected language, as well as overlays on the video outputs when enabled. All this means Video Assist is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!


Works with the World's Most Popular Video Software
The files from Blackmagic Video Assist are common and are compatible with all operating systems or in most video software. Media can be formatted using ExFAT or HFS+ so you can easily access the media on computers and access the files like regular disks. DaVinci Resolve is perfect for using with Video Assist as it features editing, color correction, audio post production and visual effects all in one software application. Plus you can download DaVinci Resolve free of charge for Mac, Windows and Linux! You can also use recorded files in other popular software such as Premiere Pro and Final Cut Pro X. With Video Assist, your media is common so your files will remain readable in the future.

Connections
SDI Video Inputs 1 x Micro BNC
SDI Video Outputs 1 x Micro BNC
SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs 1
HDMI 2.0a Video Outputs 1
Analog Audio Inputs None, embedded audio only.
Analog Audio Outputs 1 x 3.5 mm headphone jack.
Built in Speaker Mono
Screen Dimensions 5 inch 1920 x 1080.
Screen Brightness 2500nits
Screen Color P3 wide color gamut
SDI Audio Inputs 16 channels embedded via 12G-SDI
SDI Audio Outputs 16 channels embedded via 12G-SDI
HDMI Audio Inputs 8 channels embedded via HDMI 2.0a
HDMI Audio Outputs 8 channels embedded via HDMI 2.0a
Remote Control None
SD Interface 1 x UHS-II SD slot.
Storage Type Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.
SDI Video Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
SDI Metadata Support HD RP188
Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
Video Sampling 4:2:2 YUV
Color Precision 10-bit
Color Space REC 601, REC 709, REC 2020
HDR Support HDR10, Hybrid Log Gamma
Multiple Rate Support SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
SDI RAW Blackmagic RAW
HDMI Video Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
HDMI Color Precision 10-bit
HDR Support HDR10, Hybrid Log Gamma
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media 1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
Media Type SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supported Codecs
Supported Codecs Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5,
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF.
Control
Recorder Control Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
External Control SDI and HDMI start/stop and timecode run.
Blackmagic RAW
Supported Cameras Panasonic AU-EVA1, Canon EOS C300 Mark II, SIGMA fp
Software
Software Included Blackmagic OS
Scopes
Scopes Waveform, RGB Parade, Vector, Histogram.
Viewing Modes Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
Operating Systems Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
Power Requirements
Power Supply 1 x External 12V power supply.
Compatible with Sony NP-F style batteries.
(batteries not included)
Physical Specifications
Dimensions (W x H x D) 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
Weight 14.46 oz / 409.94 g
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
This product comes with 12 Months Australian Warranty with Blackmagic. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

Blackmagic Video Assist 5” 12G HDR
Universal power supply with locking connector and international adapters
