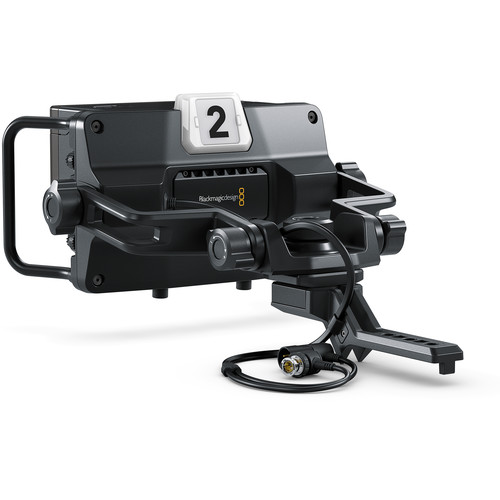

Blackmagic URSA Studio Viewfinder
- 7-Inch LCD Viewfinder
- Fully-Detailed Information Display
- Three Manual Knobs
- Assignable Functions
- Articulating Mount
Full studio viewfinder functionality in an instant. With the Blackmagic Design URSA Studio Viewfinder, you have a studio-grade viewfinder immediately attached to your Blackmagic URSA Mini Camera. If you need a fluid, studio-style workflow useful for sporting, concerts, and multi-camera studio setups, the URSA Studio Viewfinder makes it easy to achieve everything you need.
The clear 7-inch LCD viewfinder makes it easy to choose the functions you need from the viewfinder. You can display information about focus, exposure, frames per second, and a great number of framing guides. Choose from zoom, zebra, histogram, false color, and more.
Plus, you can immediately adjust the Viewfinder's brightness, contrast, and peaking levels with the easy three-manual knob setup right outside the screen. If you ever needed an immediate settings change, you'll find the best features with the Blackmagic URSA Studio Viewfinder.
Product Features in Detail
7-Inch Full Detail Studio Viewfinder
The Blackmagic URSA Studio Viewfinder attachs a 7-inch LCD screen showing you complete information about your video in real time. Like studio workflows, they provide you with full details about your camera's current focus, exposure, shutter speed, and FPS settings. Additionally, you can find useful framing guides including zebra, histogram, false color, audio levels, and more.
Customizable Knobs For Immediate Controls
You won't need to dive deep into the Blackmagic URSA Studio Viewfinder's settings. You can customize three mechanical knobs for precision control while you're shooting. Aside from the default brightness, contrast, and peaking, you can assign any of the framing guides for fast and intuitive controls during shooting
Fully Articulating Mount
The Blackmagic URSA Studio Mount rests on your URSA Mini Camera. The mount can swivel and fully articulate, giving you the best angle for viewfinder viewing and shooting at the same time.
Resolution: 1920 x 1200
Type: IPS LCD
|Format Support||1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50
|Color Space||REC 601
|Color Sampling||YUV: 4:2:2
|Connectors||1 x 3G/HD-SDI (BNC), input
1 x 4-Pin XLR, power
1 x USB type C (for initial setup and updates)
|SMPTE Compliance||SMPTE 259M, SMPTE 292M, SMPTE 296M, and SMPTE 425M 2084|
|Environmental||Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity: 0 to 90% Non-condensing
|Dimensions||11.9 x 13.0" / 30.4 x 33.1 cm|
|Weight||5.9 lb / 2.7 kg|
Blackmagic Design URSA Studio Viewfinder
