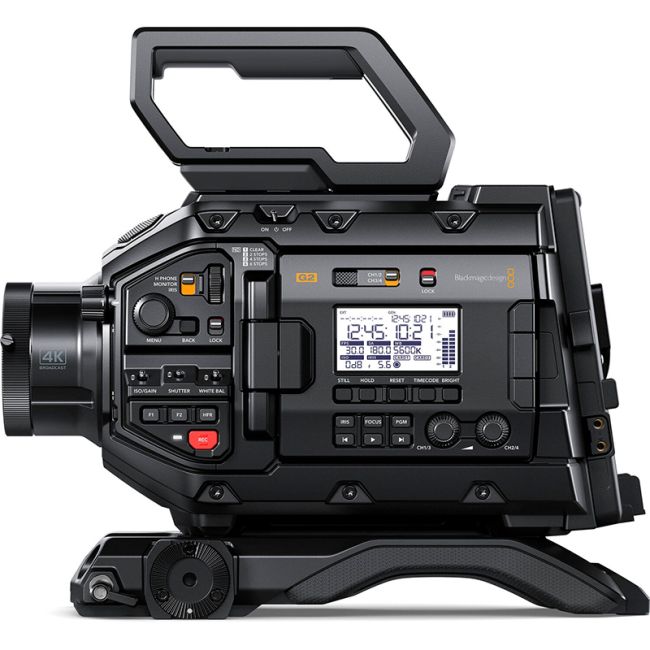

Blackmagic URSA Broadcast G2
- 12G-SDI Input & Output, Genlock/Timecode
- 2 x UHS-II SD, 2 x CFast 2.0 Slots
- 2/3" B4 Lens Mount & Active EF Mount
- 13 x Stops of Dynamic Range
- 6K Blackmagic RAW Recording
- ProRes Recording up to 1080p120
- XLR Inputs, 3.5mm Audio Output
- Built-In 2/4/6-Stop ND Filters
- 6K CMOS Sensor, Dual Native ISO
- Records to ProRes, H.265/264
The Blackmagic URSA Broadcast G2 is a versatile "3-in-1" powerhouse that functions as a 4K broadcast production camera, a live studio camera, and a 6K digital cinema camera. Featuring an advanced 6K CMOS sensor and Generation 5 Color Science, it delivers cinematic image quality with 13 stops of dynamic range and exceptional low-light performance up to 25,600 ISO. The camera is uniquely flexible, coming standard with a 2/3" B4 lens mount for traditional broadcast work while including an active EF mount adapter to accommodate professional photography and cinema lenses. Its rugged magnesium alloy body is designed for all-day comfort and features intuitive ENG-style controls that allow operators to adjust settings by feel during fast-paced live events.
Equipped for professional workflows, the URSA Broadcast G2 supports a massive array of file formats, including ProRes 422 HQ, H.265, and 12-bit Blackmagic RAW. It offers nonstop recording through dual CFast 2.0 and dual UHS-II SD card slots, as well as a high-speed USB-C expansion port for recording directly to external SSDs. For studio integration, the camera includes 12G-SDI connectivity with program return, built-in optical ND filters, and professional XLR audio inputs with phantom power. Whether you are shooting a sporting event at high frame rates or a high-end film using custom 3D LUTs, the URSA Broadcast G2 provides a future-proof solution that fits seamlessly into both HD and Ultra HD production environments.
Product Features in Detail
Three Cameras in One
The URSA Broadcast G2 is a flexible production tool that functions as a high-end ENG broadcast camera, a live studio camera with full remote control, and a 6K digital cinema camera. This versatility allows broadcasters to use a single camera body for everything from breaking news and sports to high-end cinematic commercials and feature films.
6K Digital Film Sensor & Color Science
Featuring a large 6144 x 3456 sensor and Generation 5 Color Science, the camera provides the same imaging technology used in Hollywood digital film cameras. It offers 13 stops of dynamic range and a dual native ISO for incredible low-light performance, ensuring clean, low-noise images even when shooting under ambient or studio lighting.
Interchangeable Lens Mounts
The camera comes with a professional 2/3" B4 broadcast mount installed, but also includes a spare active EF mount. This allows you to switch between parfocal broadcast zoom lenses for live events and high-resolution photographic or cinema lenses for film work. Optional PL and F mounts are also available separately.
Built-In Optical ND Filters
To handle various lighting conditions instantly, the G2 features high-quality 2, 4, and 6-stop ND filters with IR compensation. These filters are specifically designed to match the camera's color science, allowing you to maintain a shallow depth of field or specific shutter angles even in bright daylight.
Dual Media Slots & USB-C Recording
For maximum reliability, the camera includes dual CFast 2.0 and dual SD UHS-II recorders, allowing for automatic "overflow" recording so you never miss a shot. Additionally, a high-speed USB-C port enables direct recording to low-cost external SSDs, which can be moved straight to a computer for immediate editing in DaVinci Resolve.
Advanced Broadcast Connectivity & Control
The URSA Broadcast G2 is built with industry-standard connections, including 12G-SDI I/O, timecode/reference input, and balanced XLR audio. It supports the SDI remote control protocol, allowing a director at an ATEM switcher to manage color correction, tally, and lens parameters while the operator focuses on framing.
| Lens Mount | B4 |
| Image Sensor | 23.1 x 12.99 mm (2/3"-Type) CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Stabilization | No |
| ISO/Gain Sensitivity | Native: 400 to 3200 (100 to 25,600 Extended) |
| Gain: -6 to 18 dB | |
| Internal Recording | Blackmagic RAW 10-Bit: Up to 6K up to 50 fps |
| H.265: UHD 4K up to 59.94 fps | |
| ProRes 422/ProRes 422 HQ: Up to UHD 4K up to 59.94 fps | |
| H.264: 1080p up to 59.94 fps | |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Dual Slot: CFast (CFast 2.0) | |
| Video I/O | 1x BNC (12G-SDI) Output |
| 1x BNC (12G-SDI) Input | |
| 1x BNC (12G-SDI) Output | |
| Mobile App Compatible | Yes: iPadOS Only |
| Battery | V-Mount |
| Lens Mount | B4 |
| Lens Communication | Yes |
| Image Sensor | 23.1 x 12.99 mm (2/3"-Type) CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Stabilization | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type | Stills & Video |
| Shutter Type | Electronic Rolling Shutter |
| ISO/Gain Sensitivity | Native: 400 to 3200 (100 to 25,600 Extended) |
| Gain: -6 to 18 dB | |
| Advertised Dynamic Range | 13 Stops |
| Focus Mode | Automatic, Manual Focus |
| Internal Recording | Blackmagic RAW 10-Bit |
| 6144 x 3456 up to 50 fps (65 to 483 Mb/s) | |
| 3728 x 3104 up to 59.94 fps (36 to 265 Mb/s) | |
| 6144 x 2560 up to 59.94 fps (49 to 359 Mb/s) | |
| 3840 x 2160 up to 59.94 fps (32 to 190 Mb/s) | |
| 1920 x 1080 up to 150 fps (5.2 to 47 Mb/s) | |
| H.265 | |
| 3840 x 2160 up to 59.94 fps3.2 to 7.8 Mb/s) | |
| ProRes 422/ProRes 422 HQ | |
| 3840 x 2160 up to 59.94 fps (73.6 to 110 Mb/s) | |
| 1920 x 1080p up to 59.94 fps (18.4 to 27.5 Mb/s) | |
| 1920 x 1080p up to 120 fps (18.4 to 27.5 Mb/s) | |
| H.264 | |
| 1920 x 1080p up to 59.94 fps1.8 to 7 Mb/s) | |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | ProRes: 2-Channel, 24-Bit at 48 kHz |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Dual Slot: CFast (CFast 2.0) | |
| Internal Storage | No |
| Video I/O | 1x BNC (12G-SDI) Output |
| 1x BNC (12G-SDI) Input | |
| 1x BNC (12G-SDI) Output | |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input on Camera Body (+48 V Phantom Power) |
| 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Input/Output on Camera Body | |
| Power I/O | 1x XLR 4-Pin Input |
| 1x XLR 4-Pin (12 to 20VDC) Output | |
| 1x Molex 12-Pin Input | |
| Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Video Output) |
| 1x USB-C Data Input | |
| 1x 2.5 mm Sub-Mini (LANC) Control Output | |
| 1x BNC (Reference, Sync, Timecode) Data Input | |
| 1x Hirose 12-Pin (Camera Interface) Control Output | |
| Wireless | Bluetooth |
| Mobile App Compatible | Yes: iPadOS Only |
| App Name: Blackmagic Camera Control App | |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | Primary Monitor: Articulating 4" Touchscreen LCD |
| Status Display: Fixed Non-Touchscreen LCD | |
| Type | Optional, Not Included |
| Battery | V-Mount |
| Power Consumption | 100 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| Tripod Mount | 3x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread | 1x ARRI/Hirth Rosette |
| Netflix Approved | Yes |
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 21 x 10 x 7" / 53.3 x 25.4 x 17.8 cm |
| Weight | 11.02 lb / 5.00 kg (Body Only) |
This product comes with Limited Lifetime Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Blackmagic URSA Broadcast G2
B4 Turret Dust Cap
EF Mount
EF Mount Dust Cap
8 x EF Mount Screw
12V/100W Power Supply
Shoulder Pad
Top Handle
V-Mount Battery Plate
4 x V-Mount Plate Spare Screw
Viewfinder Mounting Plate
2 x 1/4"-20 Baseplate Screw
2 x Long 1/4"-20 Top Handle Screw
2 x Short 1/4"-20 Top Handle Screw
DaVinci Resolve Studio Download QR Code
Camera Software Download QR Code
SKU: Blackmagic CINEURSAMWC6KG2
UPC: 9338716007435
