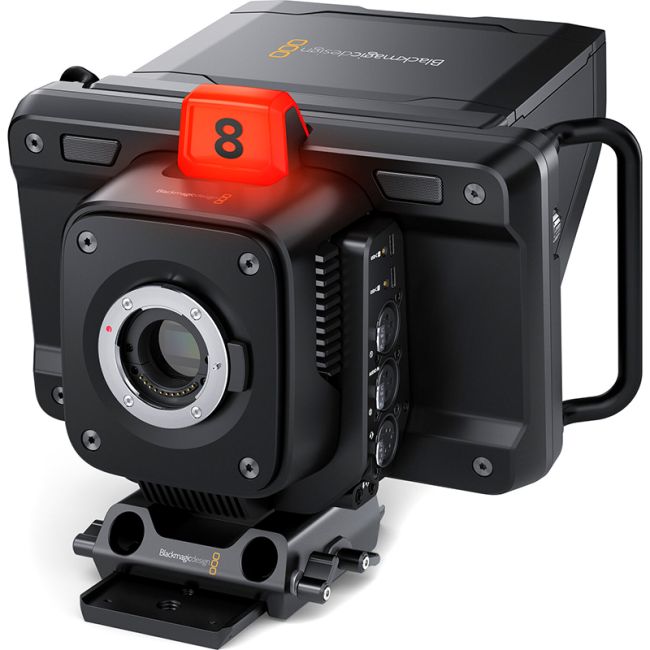

Blackmagic Studio Camera 4K Pro G2

The Blackmagic Design Studio Camera 4K Pro G2 is a powerful, compact live production camera designed to work seamlessly with professional SDI video switchers. This latest model features a high-performance 4K sensor with 13 stops of dynamic range and Generation 5 Color Science, delivering cinematic images with the same imaging technology used in digital film cameras. Its lightweight carbon fiber-reinforced polycarbonate body houses a large 7" HDR touchscreen viewfinder, making it easy to frame shots even in bright sunlight. To ensure maximum flexibility, it retains the popular Micro Four Thirds (MFT) lens mount, allowing you to use a wide range of affordable photographic lenses that can be controlled remotely from the switcher or via optional tripod-handle demands.

Built for modern broadcast workflows, the Studio Camera 4K Pro G2 introduces built-in global live streaming via Ethernet or 4G/5G smartphone tethering, allowing it to function as a remote camera from anywhere in the world. It is equipped with professional 12G-SDI and 10GbE Ethernet connections, the latter of which enables a low-cost, SMPTE-style single-cable setup that carries video, tally, talkback, camera control, and PoE power. With additional high-end features like dual balanced XLR audio inputs, physical control knobs for precision adjustments, and the ability to record 12-bit Blackmagic RAW files to external USB-C disks, this camera provides a comprehensive solution for high-end studio and live event production.

Product Features in Detail

Cinematic 4K Sensor and MFT Mount

The camera features a 4K sensor with a resolution of 4096 x 2160 and 13 stops of dynamic range, providing rich detail and deep blacks for a digital film look in live production. The active Micro Four Thirds lens mount offers compatibility with a massive variety of affordable, high-quality lenses that can be adjusted remotely for focus and iris.

Professional 12G-SDI and 10GbE Connectivity

Designed for robust broadcast environments, the 4K Pro G2 includes 12G-SDI for high-frame-rate Ultra HD video and 10GbE Ethernet. The 10G Ethernet connection allows for a streamlined workflow where a single, affordable Cat 6a cable handles video, program return, tally, talkback, and PoE power over long distances.

Global Live Streaming Capabilities

This model features built-in hardware live streaming, enabling the camera to send an H.264 stream via the internet back to the studio. For remote locations without fixed internet, users can connect a 4G or 5G smartphone to the USB-C expansion port to provide a mobile data link for the broadcast.

High-Brightness 7" HDR Viewfinder

The integrated 7" high-resolution touchscreen transforms the operator's experience by making framing and focus tracking significantly easier. The display supports HDR with extreme brightness for outdoor use and includes professional overlays such as histograms, focus peaking, 3D LUTs, and digital status parameters.

Advanced Audio and Talkback Systems

To eliminate the need for external mixers, the camera includes dual balanced XLR inputs with +48V phantom power and built-in shock-resistant microphones. It also features an integrated talkback system that uses standard 5-pin XLR broadcast headsets, allowing directors to communicate directly with camera operators through the SDI or Ethernet return feeds.

Blackmagic RAW and USB-C Expansion

The high-speed USB-C expansion port allows for direct recording of high-quality 12-bit Blackmagic RAW files to external flash disks. This ensures that all sensor metadata, such as ISO and white balance, is preserved for post-production, while also providing a port to power accessories or connect optional focus and zoom demands.
