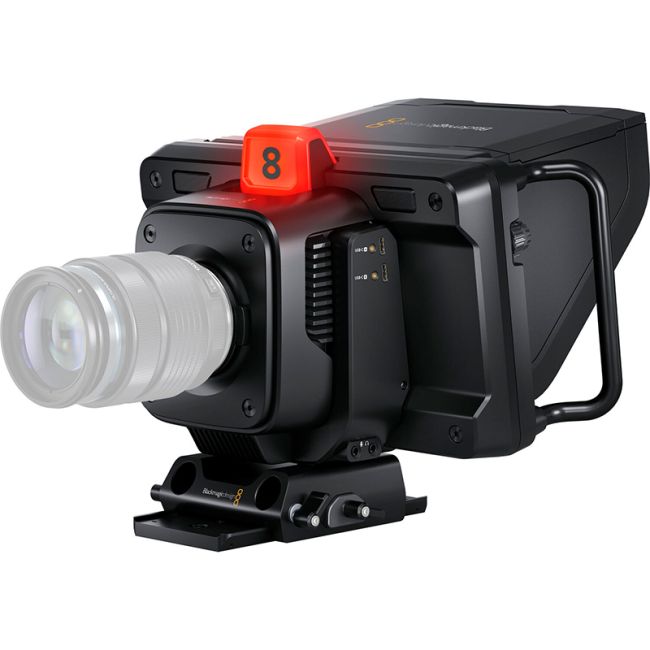

Blackmagic Studio Camera 4K Plus G2

The Blackmagic Design Studio Camera 4K Plus G2 is a compact and lightweight broadcast solution updated to bridge the gap between HDMI and SDI workflows. While it retains the core strengths of its predecessor—including a cinematic 4K sensor, 13 stops of dynamic range, and an active MFT lens mount—it now features 12G-SDI input and output alongside an HDMI 2.0 port. This addition allows the camera to work seamlessly with both ATEM Mini switchers and professional SDI-based switchers like the ATEM Constellation, providing operators with integrated talkback, tally, and remote camera control directly through the video signal.

Beyond its connectivity, the camera is designed for maximum usability in diverse live environments, from sports and news to weddings and education. The large 7" HDR touchscreen viewfinder with high brightness and physical control knobs makes tracking shots comfortable for long periods, while the lightweight carbon fiber-reinforced polycarbonate body ensures portability. In addition to live switching, the camera can record high-quality 12-bit Blackmagic RAW files to external USB-C disks, allowing it to function as a standalone digital film camera for high-end post-production.

Product Features in Detail

Cinematic 4K Sensor with Dual Native ISO

The 4K sensor utilizes Blackmagic Generation 5 Color Science to produce cinematic images with 13 stops of dynamic range. Optimized for any lighting condition, it features a dual native ISO that reaches up to 25,600, ensuring low-noise, high-detail footage whether you are in a brightly lit studio or a dimly lit wedding venue.

Professional 12G-SDI and HDMI Connectivity

The Plus G2 model introduces 12G-SDI input and output, allowing it to receive program return and talkback signals from professional switchers. This is paired with an HDMI 2.0 output, making it one of the most versatile compact cameras for users who need to transition between consumer and broadcast-grade equipment.

Immersive 7" HDR Viewfinder and Touchscreen

The integrated high-resolution 7" HDR LCD simplifies framing and focus tracking. The screen features a heads-up display (HUD) for critical shooting parameters, supports 3D LUTs for film-look monitoring, and includes a redesigned foldable sun hood for clear viewing in outdoor or bright studio light.

Integrated Talkback and Large Tally Light

To ensure perfect coordination on set, the camera features an internal talkback system compatible with standard 3.5mm headsets and a prominent tally light. The light illuminates red for on-air, green for preview, and orange for ISO recording, making it easy for both the operator and talent to see the camera's status.

High-Speed USB-C Expansion Ports

Featuring two high-speed USB-C ports, the camera allows for direct recording of Blackmagic RAW files to external flash disks for a fast editing workflow. These ports also support optional zoom and focus demands or a USB-C to Ethernet adapter for remote camera control and file management over a network.

Active MFT Lens Mount with Remote Control

The Micro Four Thirds (MFT) mount provides access to a wide range of affordable, high-quality photographic lenses. Because the mount is active, parameters like iris and focus can be adjusted remotely from a switcher, or locally using optional demands attached to tripod handles for a true "big studio camera" feel.
