Blackmagic Pocket Cinema Camera Pro EVF

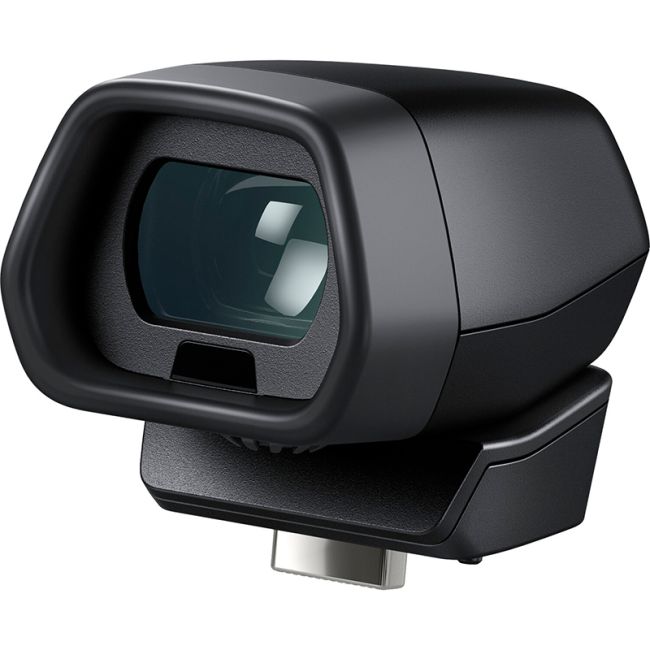

The Blackmagic Pocket Cinema Camera Pro EVF is a compact electronic viewfinder designed to perfectly integrate with the Pocket Cinema Camera 6K and 6K Pro, fitting securely into the camera's dedicated EVF slot and locking with an integrated M4 screw. When the EVF is active, it intelligently deactivates the camera's built-in touchscreen LCD to prevent accidental setting changes. The viewer itself features a crisp micro-OLED display providing a high-quality 1280 x 960 resolution image, capable of accepting input frame rates up to 60 fps and rendering visuals with 24-bit RGB color for accurate image representation.

Beyond the core image, the EVF enhances usability with various overlays, including status, meters, and settings displayed in the blank areas surrounding the video image. Comfort and precision are addressed with a glass diopter offering a -4 to +4 adjustment range, and a helpful digital focus chart is also included. The unit features a 70° swivel capability for flexible viewing angles, and it comes complete with a set of four interchangeable eyecups—offering compact, medium, and specialized cinematic configurations for both the left and right eyes.

Product Features in Detail

High-Resolution Micro-OLED Display

The EVF utilizes a crisp Micro-OLED display to provide the operator with a detailed image. This display boasts a 1280 x 960 resolution and supports 24-bit RGB color (16.7 million colors), ensuring a clear and color-accurate representation of the camera image.

Professional Diopter and Focus Control

For sharp viewing tailored to the operator, the EVF features a glass diopter with a broad adjustment range of -4 to +4. Additionally, it includes a built-in digital focus chart to help achieve critical focus accuracy quickly and easily in the field.

Integrated Swivel Mechanism and Eyecups

The viewfinder is designed for ergonomic comfort, allowing it to swivel up to 70° for flexible operating positions. A complete set of four different eyecups is included, offering options for compact, medium, cinematic left eye, and cinematic right eye setups.

Dedicated 6K/6K Pro Compatibility

The Pocket Cinema Camera Pro EVF is specifically designed for the Pocket Cinema Camera 6K and 6K Pro models. It fits into the dedicated EVF slot on the camera body and locks securely using an integrated M4 screw.

Intelligent Screen Management

When the EVF is actively in use, it automatically turns off the camera's built-in touchscreen LCD. This intelligent feature prevents the operator from accidentally changing camera settings with their face or body while viewing through the viewfinder.

Comprehensive Status Overlays

The display provides a variety of useful overlays in the blank areas above and below the camera image. These overlays include essential information such as status indicators, audio meters, and current camera settings, ensuring the operator has all critical data at a glance.
