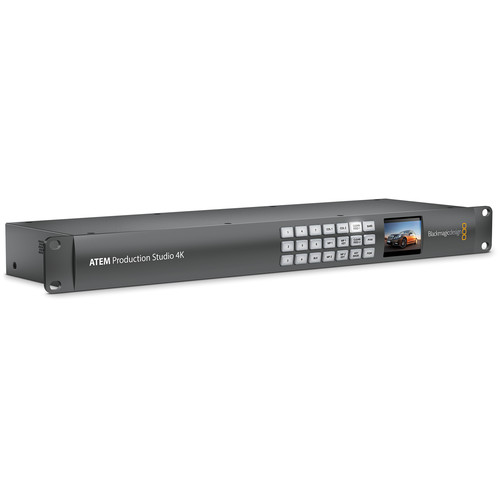

Blackmagic ATEM Production Studio 4K
- NTSC/PAL/HD/UltraHD 4K (10-Bit)
- Supports 4K Resolution Over SDI or HDMI
- Four 6G-SDI and HDMI Inputs
- Simultaneously Active Inputs
- Two Multi-View Audio Outputs
If you needed an in-field, live-event multi-camera production switcher that has plenty of UHD inputs for convenient switching, Blackmagic Design's ATEM Production Studio 4K Live Switcher is the one for you.
The device uses a reference video input for synchronization with other equipment that uses tri-level or Blackburst Sync inputs. All the inputs have their own frame synchronizer, providing you with an unparalleled input video from computer sources or cameras that do not have their own frame synchronization capability.
Additionally, the ATEM Production Studio 4K has its own two-channel audio mixer, which handles the HDMI and SDI video from all six video inputs. You also have a balanced and unbalanced analog audio inputs for creative audio control before it enters post-processing too.
Product Features in Detail
Supports 4K Ultra HD at 10-Bit
Want to get your videos in the highest resolution possible? At consistent 4K Ultra HD video, you can capture eight active 4K video inputs and get high-quality videos with its 10-bit data rate. All inputs have their own frame synchronizer too.
Built-in Audio Mixer
The ATEM Production Studio 4K is not lacking when it comes to its audio. You have a trusty audio mixer that takes in the audio input of all video sources plus the balanced and unbalanced additional channels. This allows you convenient live feed audio editing and polishing, which can be greatly helpful during the post-production phase.
Multi-View Monitoring
With eight inputs, the multi-view monitoring feature is one of the best additions in the ATEM Production Studio 4K. Now, you can view them side-by-side and even add labels allowing you to identify each input easily.
| Connections | |
|
Total Video Inputs
|
8 |
| Total Video Outputs | 6 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| Total Audio Inputs | 2 x XLR. 2 x RCA. |
| Total Audio Outputs | 2 x XLR Program. |
| Timecode Connection | None |
| SDI Video Inputs | 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio. |
| HDMI Video Inputs | 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio. |
| SDI Audio Outputs | 2 channel embedded into SDI output. |
| Reference Input | Tri-Sync or Black Burst. |
| Video Input Re-Sync | On all 8 inputs. |
| SDI Program Outputs | 1 x 10-bit SD/HD/Ultra HD 4K switchable. |
| HDMI Program Outputs | 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. |
| Down Converted SDI Program Outputs | 1 x 10-bit HD (Ultra HD 4K to HD). |
| SDI Aux. Output | 1 |
| Total Multi Views | 1 |
| SDI Multi View Outputs | 1 |
| HDMI Multi View Outputs | 1 |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. |
| Standards | |
|
SD Video Standards
|
525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94 |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 | |
| 1080i50, 1080i59.94 | |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M. |
| Video Sampling | 4:02:02 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Input Resolutions for Computers | 720 x 480i 59.97Hz, 720 x 576i 50Hz,1280 x 720 59.94Hz, 1280 x 720 50Hz and1920 x 1080 59.94Hz, 1920 x 1080 50Hz,3840 x 2160 23.98Hz, 3840 x 2160 24Hz,3840 x 2160 25Hz, 3840 x 2160 29.97Hz. |
| Colorspace Conversion | Hardware based real time. |
| Processing Delay | 1 Line. |
| Audio Mixer | 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring. |
| 4K to HD Down Conversion | Yes, program x 1. |
Blackmagic ATEM Production Studio 4K, Software SD Card
SKU: Blackmagic SWATEMPSW04K
UPC: 9338716001976
