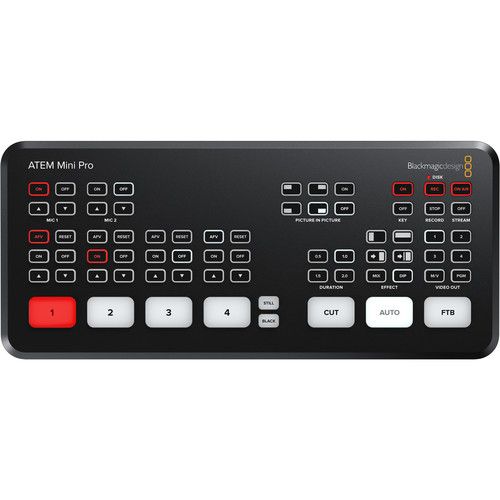

Blackmagic ATEM Mini Pro
- Live Stream, Record and Tally Status Displays
- Four BMPCC 6k/4K Camera Controls
- 2-Channel Digital Audio Mixer Per Source
- 4-Channel Live Stream HDMI Switcher
- Upstream, Downstream, and DVE Keyers
If the Blackmagic ATEM Mini wasn't enough to satiate your need for multi-HDMI input streaming, the Mini Pro is sure to satisfy what you need. This four-input live production switcher has an integrated control panel that allows streamers direct integration with their internet and broadcast applications. If you're planning to start your gaming stream soon, this is the best tool in the business.
The Mini Pro picks up where the ATEM Mini left off. Now, it has live stream data rate and status information, a built-in hardware encoder, USB drive recording, Blackmagic Multidock (sold seperately) drive hot swapper, and tally support.
Aesthetically, the Mini Pro differs little in aesthetics. It has four HDMI inputs available on its rear capable of handling up to 1080p 60FPS HD video. Rearview multiview monitoring is available. Plus, a USB Type-C output makes it possible to record HD video to a computer disk. Everything you need for game streaming in one single and efficient package.
Product Features in Detail
Drive Hot Swapping
Sometimes, your recording drive gets full when you're not live streaming your show. It makes sense to have available automated switching features at your disposal -- which the Blackmagic ATEM Mini Pro handles on your behalf.
Direct USB Recording
Now, you can record your sessions and inputs directly to your USB for convenient safekeeping and reuploading to your channels after streaming. A convenient film production feature, it saves time to encode camera stream information for post-processing.
Live Stream, Record and Tally Status Displays
With stream, video record, and tally information encoded on videos and displayed in real time, the Blackmagic ATEM Mini Pro makes it easy to handle video post-processing and enhance visuals during post production.
| Total Audio Outputs | None, embedded audio quality only |
| HDMI Video Inputs | 4x HDMI type A, 10-bit HD switchable, 2 Channel Embedded Audio |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| HD Video Input Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Audio Mixer | 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Analog Input Delay | Up to 8 frames |
Control Panel Software, Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher, 12V Power Supply with International Adapters
SKU: Blackmagic SWATEMMINIBPR
UPC: 9338716006797
