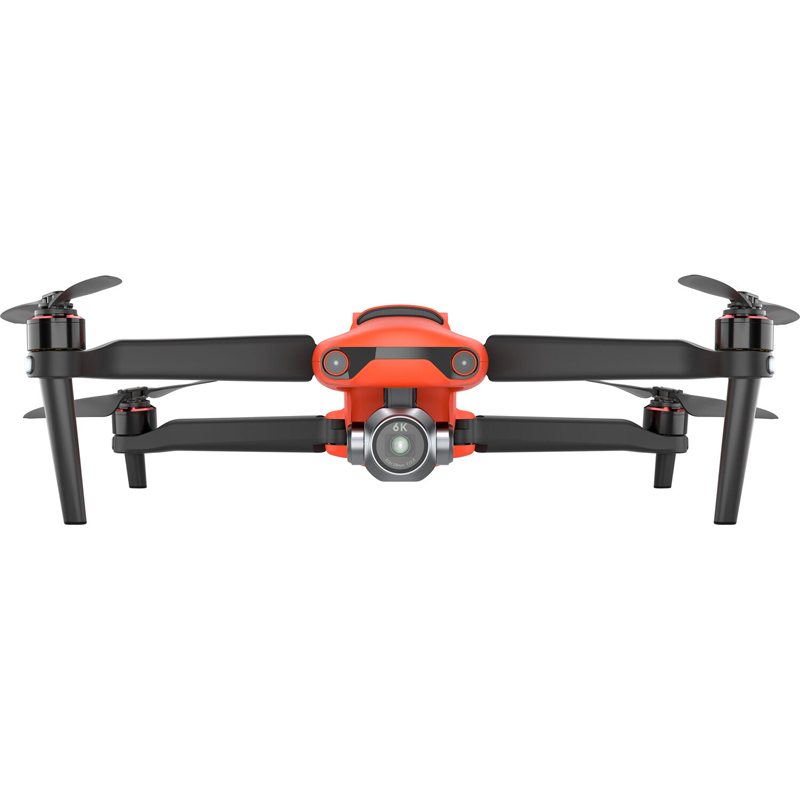

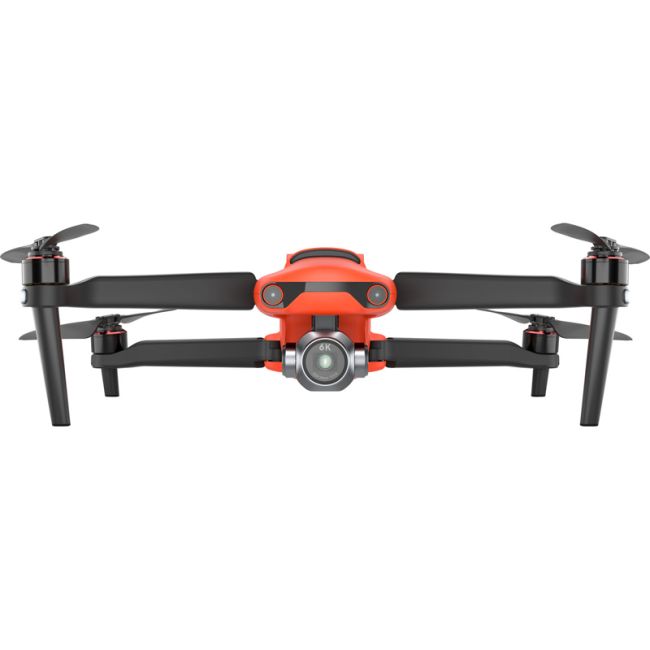

AUTEL EVO II Pro V2.0 Drone
- Capture 6K Video and 20MP Photos
- Up to 40-Minute Flight Time
- 12-Sensor Obstacle Avoidance
- Includes Remote with 3.3" OLED Display
- HD Transmission up to 4.3 Miles
- Record HDR Video at up to 4K Resolution
- Foldable Design for Easier Portability
- 3x In-Camera Lossless Zoom
- Support for 10-Bit A-LOG
The Autel Evo II comes with a FLIR BOSON sensor for thermal imaging, allowing you to use the camera's onboard computer to see in the dark. With its powerful 48 MP camera, you can capture stunning 8K video and 38-minute flight times. The 12-sensor obstacle avoidance ensures your drone is always aware of your surroundings, letting it fly at up to 45 mph with accuracy.
The FLIR BOSON sensor is a type of particle detector that uses a laser to measure the energy of light particles. It can measure many particles that the eyes can’t see. Now, imagine this power on your AUTEL EVO II Drone. The sky’s the limit when it comes to astounding lighting and captures with your drone camera.
Your AUTEL EVO II Drone uses sensors to track their surroundings and avoid any obstacles. Sensors can be programmed to determine if any objects are within a certain distance of the drone. Each sensor is powerful on its own, but a 12-sensor set on your AUTEL EVO II guarantees that it will remain safe throughout the entier time you use it.
Product Features in Detail
Superior image quality in low-and limited-lighting conditions
Supporting video resolutions up to 6K with greater dynamic range, and stronger noise reduction, the EVO II Pro uses the Sony's latest generation of supersensitive CMOS sensor to achieve impressive low-light photography.
Adaptability and versatility for every lighting environment
The EVO II Pro's advanced camera settings include an adjustable aperture range of f2.8 to f11 and a maximum ISO of 12,800 enabling the photographer to produce images of exceptional precision and sharpness.
Post-Production Flexibility
10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.
4K HDR
EVO II supports 4K HDR recording to enhance contrast and color.
Capture thenight time world
Hyper-light feature designed for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.
LiveDeck: Stream Anywhere
EVO II supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming.
No one but Autel offers Hyper-lapse photography in 6K
You can enjoy your favorite moments at any time, free from post-processing as 8K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.
360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Dynamic Track 2.0
EVO II can model location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Maximum Flight Time 40minutes
EVO II series flies for up to 40 minutes.
Maximum Transmission Range 5.5miles
Fly up to 5.5miles (9km) away from the pilot's location with confidence in video and telemetry transmission.
Maximum Wind Resistance 39mph (17m/s)
Fly in virtually any wind condition (urban or rural) with confidence, ensuring a successful mission.
Maximum Flight Speed 45mph
With speeds of up to 45mph (20 m/s), the EvoII arrives quickly and efficiently.
Camera | |
Image Sensor | 1" CMOS |
Pixels | 20MP |
Perspective | 82° |
Lens | EFL: 28.6 mm |
Aperture: f/2.8–f/11 | |
Focus Distance: 1m to any distance (with autofocus mode) | |
ISO Range | Video: 100-6400 (auto) |
Photo: 100-12800 (auto) | |
Zoom | 1-8x (Max 3x lossless) |
Still Photography Modes | Single Shot |
Burst shooing: 3/5 frames | |
Automatic Exposure Bracketing (AEB): | |
3/5 bracketed frames at 0.7 EV Bias | |
Timelapse: | |
JPG:2s/5s/7s/10s/20s/30s/60s | |
DNG:5s/7s/10s/20s/30s/60s | |
HyperLight:support (under 4K JPEG format) | |
Long Exposure: Max 8s | |
HDR imaging: (under 4K JPEG) | |
Still Photography Resolution | 5472*3648 (3:2) |
5472*3076 (16:9) | |
3840*2160 (16:9) | |
Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
Video Resolution | 6K 5472*3076 p30/p25/p24 |
4K 3840*2160 p60/p50/p48/p30/p25/p24 | |
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 | |
1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24 | |
Max Bitrate | 120Mbps |
Aircraft | |
Takeoff Weight | 2.6 lbs (1191 g) |
Max Takeoff Weight | 4.4 lbs (1999 g) |
Diagonal Wheelbase | 15.6 inches (397 mm) |
Aircraft Battery | 7100 mAh |
Max Flight Time (standard) | 40 min |
Max Hovering Time (standard) | 35 min |
Max Level Flight Speed (Standard) | 45 mph (20 m/s) (Ludicrous) |
Max Ascent Speed | 18 mph (8 m/s) (Ludicrous) |
Max Descent Speed | 9 mph (4 m/s) (Ludicrous) |
Max Service Ceiling Altitude | 4.3 miles (7000 m) MSL |
Max Wind Resistance | Force 8 wind |
Operating Environment Temp | 14-104°F (-10-40°C) |
Working Frequency | 2.4~2.4835GHz |
Transmission Power | 2.4~2.4835GHz |
FCC/ISED:≤27dBm | |
SRRC/CE/MIC/RCM:≤20dBm | |
Hover Precision | Vertical: |
± 0.1m (with visual positioning in normal operation) | |
± 0.5m (with GPS in normal operation) | |
Horizontal: | |
± 0.3m (with visual positioning in normal operation) | |
± 1.5m (with GPS in normal operation) | |
Sensing System | |
Sensing System Type | Omnidirectional Binocular Sensing System |
Forward | Accurate Measuring Range: 0.5 - 20m |
Detection Range: 0.5 - 40m | |
Effective Sensing Speed: < 15 m/s | |
FOV: Horizontal: 60°, Vertical: 80° | |
Backward | Accurate Measuring Range: 0.5 - 16m |
Detection Range: 0.5 - 32m | |
Effective Sensing Speed: < 12 m/s | |
FOV: Horizontal: 60°, Vertical: 80° | |
Upward | Accurate Measuring Range: 0.5 - 12m |
Detection Range: 0.5 - 24m | |
Effective Sensing Speed: < 6 m/s | |
FOV: Horizontal: 65°, Vertical: 50° | |
Downward | Accurate Measuring Range: 0.5 - 11m |
Detection Range: 0.5 - 22m | |
Effective Sensing Speed: < 6 m/s | |
FOV: Horizontal: 100°, Vertical: 80° | |
Sides | Accurate Measuring Range: 0.5 - 12m |
Detection Range: 0.5 - 24m | |
Effective Sensing Speed: < 10 m/s | |
FOV: Horizontal: 65°, Vertical: 50° | |
Service Environment | Textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on) |
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.) | |
Downward: textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on) | |
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.) | |
Gimbal | |
Operation Range | Pitch: -135° to +45° |
Yaw: -100° to +100° | |
Operation Range | Pitch: -90° to +30° |
Yaw: -90° to +90° | |
Stability | More Stable with 3 Axies |
Max Control Speed (Tilt) | 300°/s |
Angular Vibration Range (°) | ±0.005° |
Remote Controller and Transmission | |
Max Signal Transmission Distance | 5.5 miles (9km) FCC, 3,1miles (5km) CE |
Working Frequency | 2.4~2.4835GHz |
Transmission Power | 2.4~2.4835GHz |
FCC/ISED:≤27dBm | |
SRRC/CE/MIC/RCM:≤20dBm | |
Real-Time Transmission Quality | 720p@30fps / 1080p@30fps |
Max Bitrate of Real-time Transmission | 40Mbps |
Remote Controller Battery | 5000mAh |
Operating Hours | 3h |
Charging Time | 2h Fast Charging |
Display | 3.26-inch OLED screen |
854 (W)*480 (H) pixels | |
Preview video without the need for connecting to a mobile phone | |
1.7A@3.7V | |
Battery | |
Battery (mAh) | 7100mAh |
Voltage (V) | 11.55 |
Transmission Power (2.4G) | 13.2 |
Battery Type | LiPo 3S |
Battery Energy | 82Wh |
Weight (g) | 365 |
Charging Temperature Range (°C) | 5~45℃ |
Storage Temperature & Humidity | -10~30℃,65±20%RH |
Recommended Storage Temperature | 22~28℃ |
Max Charging Power Consumption (W) | 93W |
Charging Time | 90min |
Charger | |
Input | 100-240 V, 50/60 Hz, 1.5A |
Output | 13.2 V ⎓ 5 A |
5V⎓3A 9V⎓2A 12V⎓1.5A | |
Voltage | 13.2 ± 0.1 V |
Rated Power | 66 W |
APP | |
iOS | Autel Explorer |
Android | Autel Explorer |
Storage | |
SD Storage | Standard: 32 GB, |
max. support 256GB ( UHS-3 rating required ) | |
Internal Storage | 8GB |
This product comes with 12 Months Warranty with Autel Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
AUTEL EVO II Pro V2.0 Drone
Remote Controller
Flight Battery
Battery Charger
Power Cable
Micro-USB to USB Type-C Remote Cable
Micro-USB to Micro-USB Remote Cable
Battery Charger
2 x Extra Pair of Propellers
Micro-SD Card Holder
