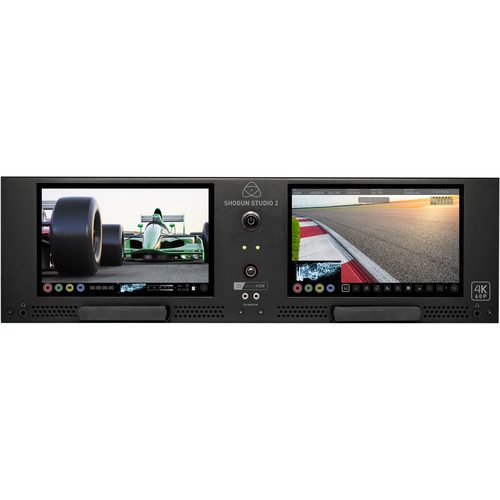

The perfect choice for professional studio videography, Atomos' Shogun Studio II provides you with a dual 7-inch monitor pair capable of continuous 4K 60FPS recording and monitoring on both channels. Furthermore, you have high-quality audio support with a stereo XLR input/output available per channel. It has a maximum brightness that reaches up to 3000 cd/m2 for efficient log gamma and footage viewing.

Specification

Weight
Weight	5.0kg / 11lb
Rack height	3Ru
Rack mounting	Removable rack ears
Dimensions (W x H x D mm)	447 x 152 x 280mm, 17.6 x 6.0 x 11.0”(without rack ears) 490 x 152 x 280mm, 19.3 x 6.0 x 11.0” (with rack ears)
Construction	Steel construction for durability
Cooling	Actively controlled fan with heat sinks
Power
Operating power (including SSD)	20 - 86W
Compatible batteries	No
Input voltage (battery)	-
DC Out	No
Touchscreen
Size	7.2”
Resolution	1920 x 1200
PPI	325
Aspect ratio	16:9 native
Color Gamut	Up to Wide color gamut (105% DCI-P3)
Look up table (LUT) support	3D LUT (.cube format)
Technology	SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional X-Rite unit
Anamorphic de-squeeze	2x, 1.5x, 1.33x, Panasonic 4:3
Technology	Dynamic AtomHDR zoned backlight
Dynamic AtomHDR Technology
Backlight	Direct LED
Zones	360 direct backlight individual LEDs
LEDs	Wide Color Calibrated D65 or D95
Bit depth	10-bit (8+2 FRC)
Color	DCI-P3 105%
Brightness	3000nit (+/- 10%)
Brightness	3000nit (+/- 10%)
Control	On the fly real-time brightness analysis for LED control
HDR Conversion	Log/RAW to HLG or PQ, Dolby Vision Loop out
HDR Monitoring Technology
Gamma	Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / Log- CEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm / FujiFilm F-log / Nikon N-Log PQ10k and HLG
Gamut	Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4
Video Input/Loop Out
HDMI	HDMI 1 x HDMI (2.0)**
SDI	Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI
Signal (camera dependent)	Uncompressed true 10-bit or 8-bit 422
LTC (Record Mode Only)	LTC input signal and loop out
Genlock (Playback Mode Only)	Genlock input signal and loop out
Video Output (Play Out)
HDMI	1 x HDMI (2.0)**
SDI (Play Out)	1 x Single link SDI 12G/6G/3G/1.5G, Optional 2nd SDI output available in Playback mode
Signal	Uncompressed true 10-bit or 8-bit 422 (playback file dependent)
Video Signal Conversion
HDMI to SDI	720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200/240 2160p 24/25/30/50/60
SDI to HDMI	720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200/240 2160p 24/25/30/50/60
Signal	Uncompressed true 10-bit or 8-bit 422 (playback file dependent)
Audio In/Out (48kHz PCM Audio) (Per Channel)
HDMI	2 or 8ch 24-bit, camera dependent
SDI	12ch 48kHz 24-bit
Audio	2ch balanced XLR analogue in/out Dynamic range >90dB Max signal level +24dBu 3.5mm 2ch.
Supported Codecs & Frame Rates (Record & Playback)
Raw to:	ProRes RAW, ProRes CinemaDNG (CDNG up to 30p only) Avid DNxHD
Sony^^ FS700, FS-5, FS-7, FS-7MkII	4K DCI; 24/25/30/50/60p 4K UHD; not supported in camera 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera
Canon C300MKII/C500 CDNG	4K DCI; 24/25/30p 4K UHD; 24/25/30p 2K; not supported in camera 1080; not supported in camera
Panasonic VaricamLT, EVA1	5.7K DCI; 24/25/30p (EVA1 ProRes RAW only) 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera
Supported base resolution & FPS from cameras	2K DCI: 23.98/24/25/29.9/30/50/59.94/60p 1080p: 23.98/24/25/29.9/30/50/59.94/60p 1080i: 50/59.94/60i 720p: 50/60p PSF inputs converted to P but looped out as PSF
Supported FPS & resolution from gaming consoles and graphic cards	4k UHD: 24/25/30/50/60p
Onboard Processing
Pulldown removal	24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)
4K UHD downscale for HD monitoring	Yes - Loop-out and playback (Not available in all RAW modes)
Remote Control
HDMI	Auto HDMI Trigger Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard
RS422*	9pin transport control on qualified controllers
SDI	SDI trigger camera selectable
Other	LANC control - Slave / Calibration on front. Serial - Calibration on front
Playback
Playlist / Genlock / LTC	Yes / Yes / No
CDNG (Recorded content)	No support
ProRes (Recorded content)	All recorded files can playback. Playback in slow motion >= 100fps.
DNxHR / DNxHD (recorded content)	All recorded files can playback. Playback in slow motion >= 100fps.
Recording
Pre-roll record	Yes (HD 8s, 4K 2s)
ISO Record	Up to 8 streams in 60pHD in parallel
Custom timelapse	Yes*
Supported media	2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/ drives for list of tested and approved drives
Master caddy case	Master Caddy II (included) 75mm x 105mm x 12mm
Supported applications	Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke

Warranty

This product comes with 1 year Genuine Warranty with Atomos Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

In The Box

Shogun Studio 2, 2 x rack ears with screws, 4 x rubber feet with screws, 2 x IEC power cable, 2 x HDMI cable, 1 x USB-C Dock, 5 x Master caddy II
