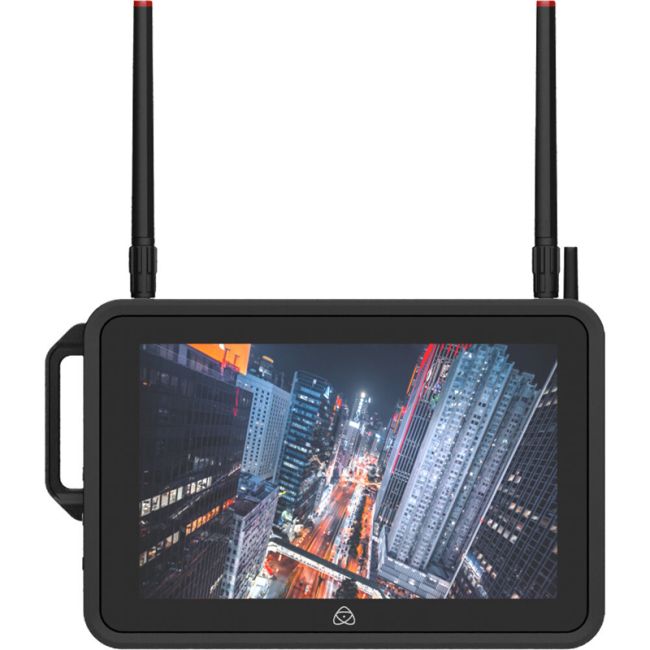

Atomos Shogun CONNECT 7" Network-Connected HDR Video Monitor & Recorder
- 7" 1920 x 1200 Touchscreen Display
- 2000 cd/m² Brightness
- Two 12G-SDI, Two HDMI, and USB Type-C
- Wi-Fi 6, Bluetooth LE, Gigabit Ethernet
- Adobe Frame.io Camera to Cloud Support
- Dual Recording Capabilities, Streaming
- Supports Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, or HEVC (H.265)
- Power via DC Input or L-Series Battery
The Atomos Shogun CONNECT 7" Network-Connected HDR Video Monitor & Recorder is a powerful and versatile monitor for professional video shooters. The 7-inch, high resolution HD display features a wide colour gamut that supports both HDR and Rec. 2020 colour spaces. With a brightness level of 2000 cd/m², the Shogun CONNECT monitor produces an incredibly vivid viewing experience in any lighting condition.
The Shogun CONNECT is a dual recording device that can record to both internal SSD drives as well as removable SD media cards simultaneously. It also supports up to 4K UHD capture at 60 fps with 10-bit colour depth (60p 4:2:2) and will support DCI 4K UHD at 30 fps with 10-bit colour depth (30p 4:2:2).
With built-in Wi-Fi 6, Bluetooth LE and Gigabit Ethernet, the Shogun CONNECT can be connected to your devices at home or on the go without compromising on video quality or performance. Furthermore, it comes equipped with two 12G-SDI ports and two HDMI ports so you can connect multiple cameras simultaneously for multi-camera monitoring or recording.
Atomos also includes Adobe Frame.io camera to cloud support for uploading media directly to their cloud storage service. This can be done via the onboard SD card slot or through a USB Type-C connection on the side of the device. The Shogun Connect also supports dual recording capabilities, allowing you to record an extra copy onto an SSD drive without taking up too much space on your memory cards.
The Atomos Shogun Connect supports Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, or HEVC (H.265) and comes with a built-in battery that allows users to power the device from AC power or from L-Series batteries for mobility.
Product Features in Detail
Unbeatable in the Field
Shogun CONNECT combines portable monitoring and professional RAW recording, with support for integrated and cloud-based workflows.
Shogun CONNECT builds on the pedigree of the ground-breaking Shogun product line. Every detail has been redesigned from the ground up to make Shogun CONNECT the most powerful and versatile device Atomos has ever created.
Redesigned Touchscreen
The new 7-inch, daylight-viewable, highly-responsive SuperAtom IPS touchscreen is perfect for outdoor use, even in direct sunlight. All the controls are there to perform the adjustments necessary to allow Shogun CONNECT to function equally well in darker environments.
Compact and Versatile
From individuals to large-scale cinema productions, Shogun CONNECT has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun CONNECT to remain in place at all times.
A Complete Monitoring Toolbox
Shogun CONNECT offers a comprehensive range of monitoring tools including a waveform, focus peaking, false color, and frame guides to help you get the composition and exposure exactly right. The AtomOS software is so easy to use and the control it provides over your images for exposure, framing or focus.
Powered for the Future
Shogun CONNECT is built around the latest ATOMOS silicon, the AtomIC3. The processor provides all the performance to handle the demands of the very latest cameras. It can manage higher frame rates and increased resolutions. Currently the device supports the RAW output of various cameras up to 4K at 120fps via HDMI or SDI, with 8K ProRes RAW recording of up to 30fps exclusive to certain cameras.
Wireless Remote Control
The AtomRemote app for iOS and macOS offers an array of external controls for Shogun CONNECT. The app enables you to perform a range of configuration tasks and operations up to 15 meters away from the device via Bluetooth LE. Input options include the ability to define camera connections, select Gamma/EOTF, and adjust Gamut settings. For monitoring, AtomRemote can be used to control playback, choose monitoring modes, apply custom 3D LUTs, or view image analysis tools including exposure and focus. Output controls include options for 4K to HD, LUT preview, and HDR output.
Wireless Timecode
Atomos AirGlu™ adds wireless timecode, sync, and control technology to Shogun CONNECT. AirGlu locks multiple Atomos devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the server unit, which means you’ll no longer need a huge budget or get involved in time consuming post-production workflows to produce perfectly synchronized, multi-camera video.
Supported Resolutions & Frame Rates
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Shogun CONNECT can record more color information and immediately add value to your production with your existing camera rig. Additionally, if you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun CONNECT is designed to maximize the quality of your videos and allow you to extend every aspect of your creative vision.
Shogun CONNECT also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series. The robustness and utility of SDI is critical for the productions that rely on it. SDI RAW provides the ultimate experience in terms of flexibility and quality, which makes Shogun CONNECT the ideal choice for big budget filmmakers around the world.
Professional Codec Support
With flexible options for industry standard formats and RAW codecs, Shogun CONNECT records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload. Shogun CONNECT is designed to be versatile and meet the requirements of your workflow. Atomos understands the value in being able to select the format, quality, resolution, frame rate, or file size that best suits the needs of your production.
HDR & LUTs
The 7-inch HDR touchscreen on Shogun CONNECT ensures that you always see an accurate representation of your image. You can check exposure and focus, apply custom LUTs, and zoom the picture to examine specific details. The tools are designed to provide confidence that what you see is what is recorded.
Shogun CONNECT supports popular Log formats from ARRI, Canon, Fuji, JVC, Nikon, Panasonic, RED, and Sony. These can be used to preview SDR or HDR LUTs in real-time. You can load your own custom LUTs in .cube format into any of the 8 LUT slots for monitoring, loop out, or burnt in to the recording. Simply select LUT (*.cube) files from the removable SSD.
Record without Limitations
The ability to record up to 8K using advanced edit-ready formats including ProRes RAW, ProRes, and DNxHD/HR requires fast, robust, and expansive storage. Shogun CONNECT supports removable SSD drives, which provide the space and sustained performance to meet these needs. AtomX SSDmini drives are more compact than standard SATA SSDs and offer an affordable alternative to an SD card of similar capacity or performance. They support up to 4TB storage, sequential read speeds of up to 550MB/s and write speeds up to 500MB/s. The AtomX SSDmini drives are able to record up to 150 minutes of 4K ProRes. Measuring 8cm long, 7.5cm wide and weighing as little as 88g, the custom-built drive neatly fits into the Shogun CONNECT without impacting the overall footprint of the device.
There is an optional SSDmini adaptor that allows CFAST II cards to be used, enabling you to recycle older media cards or align with your camera media. Alongside SSDmini we also qualify a range of 2.5-inch SSDs that can be used in conjunction with the MasterCaddy III adaptor in the Shogun CONNECT box.
With Shogun CONNECT the only limitation to how much you can record is the size of the SSD. A core principle of ATOMOS devices is to provide much more flexibility in terms of recording codec, resolution, and frame rate than is normally available with internal recording. SSD media also provides more GB per $ than camera media cards. This provides extended recorded times for long form productions or recording events.
The Future of Production
Atomos Cloud Studio is a collection of online video production services that represent a radical innovation for all video creators, streamers, and filmmakers. Cloud Studio allows Atomos CONNECT devices to livestream to popular platforms like Facebook Live, Twitch, YouTube, and custom RTMP/S destinations. It also offers full support for Adobe Camera to Cloud (C2C), powered by Frame.io, allowing anyone with a compatible camera or device to be able to capture full-resolution footage, simultaneously share proxy files, and collaborate in real-time.
Stream from Anywhere
Shogun CONNECT supports livestreaming to a range of online services including, Facebook Live, Twitch, YouTube, and custom RTMP/S. With Wi-Fi 6, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, Shogun CONNECT helps filmmakers, streamers, and video content producers reach their audience from anywhere.
Remote Collaboration – in Real-Time
Adobe C2C is being used by production teams every day to share footage from the shoot with remote team members. C2C is the fastest, easiest, and most secure method to share media and collaborate in real-time. It creates a direct path from production to the post-production teams, allowing media to be transferred from C2C certified devices, wherever you are, over standard network connections to the cloud, for viewing, approval, and editing. Clips can be reviewed on any device and editors can start cutting high-quality proxy files (with matching timecode and file names) before anyone calls it a wrap. Shogun CONNECT opens the C2C workflow to a significantly wider range of digital cinema, mirrorless, and DSLR cameras, allowing more filmmakers than ever before engage in cloud-based workflows and experience the future of production.
Physical Specifications | |
Dimensions (W x H x D mm) | 198mm x 133mm x 40mm / 7.8" 5.2" 1.57" |
Weight | 730g / 1.6 lbs |
Mount points | Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points |
Environmental | |
Ambient operating temperature | Up to 40 Degrees Celsius |
Construction and Control | |
Body | Aluminium alloy chassis with ABS Polycarbonate back plate |
Cooling | Actively controlled fan and heat sink |
Tally light | Yes |
Touch Screen | Yes |
On Unit Buttons | Power button - multi function |
Camera Control | Remote to USB – Z CAM |
Power | |
Input voltage | 6.2 - 16.8v |
Compatible batteries | 1 x NP-F / L-Series |
DC in connector | Locking DC Jack (5.5mm OD & 2.1mm ID) |
Dtap | Via optional D-Tap to DC cable |
Power On Function | Button On/Off, SW Off |
Fan Control | Record priority modes / Display dim |
Display | |
Touchscreen | SuperAtom IPS panel (capacitive touch) |
Size | 7" |
Resolution | 1920 x 1200 |
Viewing angle | 178 + H & V |
PPI | 325 |
Bit depth | 10-Bit (8+2 FRC) |
Backlight Type | Edge lit |
Brightness (cdm2 / nits) | 2000nit +/- 10% |
Aspect ratio | 16:9 Image Display |
Color Gamut | Rec709 |
Calibration support | ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus |
Color Pipeline | |
Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log |
Gamut | BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
3D LUT Display | .Cube Format |
3D LUT Output | Loop out |
3DLUT 50/50 | Yes |
Monitoring Modes | Native / 709 / HLG / PQ / 3D LUT |
HDR output Conversion | HLG / PQ |
Color Management | |
Calibration | ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus |
Display Controls | Backlight, Lift, Gamma, Gain |
AtomHDR | Built in Technical Log to HDR EOTF |
3D LUTs | Display, monitor and output, Record, Load via SSD |
Legalize | Full to Legal conversion available on Input |
Video Input | |
HDMI | 1 x HDMI 2.0 |
SDI | 1 x 12G SDI |
Bit Depth | 8 / 10 bit |
Video Chroma Subsampling | YCbCr 420 & 422 |
HDR | Yes with HDMI Auto detection |
Metadata | |
HDMI | RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
SDI | File Name from Arri, RED. RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
File Naming | |
Standard | S/S/T & Rolling |
Via SDI | Red, Arri |
Video Output | |
HDMI | 1 x HDMI 2.0 |
SDI loop out | 1 x 12G SDI |
SDI Play out | 1 x 12G SDI |
HDR | Yes with Auto detection |
Network | |
Ethernet | 1GbE RJ45 |
Wi-fi | Wi-Fi 6 |
Wireless RF | AirGlu™ SYNC Time code Network |
Atomos Cloud | Capture to Cloud, Live Stream |
Cellular | Connect to Hot Spot via Wi-Fi |
Web Streaming | |
RTMP / S | Yes, Destination configured via Atomos Cloud Studio |
Video Signal Conversion | |
HDMI to SDI | Yes |
SDI to HDMI | Yes |
Audio In/Out | |
Audio Quality | 24-Bit / 48kHz |
Audio Codec | PCM |
HDMI | 8ch 24Bit, input dependent |
SDI | 12ch 24Bit, input dependent |
Analogue Audio in | 3.5mm Jack |
Analogue Audio Out | 3.5mm Jack |
Headphone out | 3.5mm Jack |
Audio input delay | Frame delay on analogue input |
Timecode / Sync | |
Embedded | HDMI and SDI |
Time of day | Yes |
Wireless SYNC | AirGlu™ SYNC Time code Network |
RF Network range | 300m |
RF Frequency | Region dependant |
Number of Channels | 12 RF Channels per Region |
Number of RF clients | Region dependant |
Bluetooth Network Range | 10-15m (line of sight) |
Number of BT clients | 6 clients |
Resolution and Frame Rates (Record, Monitor & Playback) | |
4k DCI | up to 4Kp60 |
4k UHD | up to 4Kp60 |
2K DCI 2046 x 1080 | up to 2Kp60 |
FHD 1920 x 1080 Progressive | up to 1080p120 |
FHD 1920 x 1080 PsF | only via Pull down to P |
FHD 1920 x 1080 Interlaced | 1080i50 / 1080i60 |
1280 x 720p | 60p |
8K RAW | up to 8Kp30 Via HDMI |
6K RAW | up to 6Kp60 Via HDMI & 6Kp30 SDI |
4K RAW | up to 4Kp120 via HDMI / SDI |
3.5K Anamorphic RAW | up to 3.5Kp60 via HDMI |
2K RAW | up to 2Kp240 via SDI |
Recording CODEC | |
Apple ProRes RAW | up to 12bit 8Kp30 / 4Kp120 |
Apple ProRes | HQ / 422 / LT up to 4Kp60 |
Avid DNxHD | up to 1080p60 |
Avid DNxHR | up to 4Kp60 |
H.265 | C2C Proxy Recording included - Optional Activation for up to 4Kp60 (MOV container) |
Camera to Cloud | Support from Adobe Frame.io |
Gang Control | SYNC record control * available in Future FW release |
Playback | |
Playlist | Yes, Selected, Favourites or Combined |
Apple ProRes Raw | Yes, recorded clips |
Apple ProRes | HQ / 422 / LT with linear PCM |
Avid DNx | Yes with linear PCM |
H.265 | Recorded clips only |
Monitoring | |
SDR | Native, 709, LUT |
HDR | HLG, PQ Rec2020 |
De-Interlace | Selectable mode |
Freeze Frame Overlay | Optional Activation |
Recording functions | |
Pre-roll record | 8 secs HD / 4 secs 4K ProRes & DNx |
Timelapse | Yes |
Simultaneous proxy record | ProRes RAW* / ProRes / DNx with H.265 proxy * available in Future FW release |
Supported media | |
Master Caddy I | No |
SSDmini | Yes |
CFast II | Yes via AtomX CFast Adapter |
Network | Capture to Cloud via Atomos Cloud Studio |
File System | exFAT |
Interface | SATA 3 |
Master Caddy III | Yes |
On screen tools | |
Waveform | 3 sizes |
RGB parade | 3 sizes |
Vector scope | Small / large |
1 x Zoom | Tap to zoom |
2 x Zoom | Tap to zoom |
Focus peaking | Colour and slider for threshold |
False colour | With IRE scale |
Zebra | Customisable |
Isolate color channel | Blue only |
Cine Frame Guides | Preset and Custom |
Social Frame guides | Preset and Custom |
Safe areas | SMPTE frame size – Action and Safe |
Grid markers | 9 grid |
Anamorphic desqueeze | Display 1.25x, 1.33x, 1.5x, 1.8x and 2x |
Display Flip | Vertical |
False Color | With IRE scale |
Frame Grab and Onion Skin Overlay | Lossless PNG 1920 x 1080 |
Onboard Signal Processing | |
4K UHD Downscale for HD | Available On loop out |
DCI Crop | Available On loop out |
8K RAW to 4K Video Loop Out | Available On loop out |
I > P | 2:2 and 3:2 |
PSF > P | 2:2 and 3:2 |
Optional Activation Keys | |
SDI RAW | Included Activation |
H.265 | Optional Activation for up to 4Kp60 (MOV container) |
Remote control | |
HDMI | Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard |
SDI | SDI trigger camera selectable |
Serial 2.5mm Jack | LANC control and calibration via optional USB to serial cable |
Bluetooth LE | Via AtomControl App for Monitor Assist Tools |
Wireless RF | AirGlu™ Remote start stop trigger. * available in Future FW release |
External Device Control | |
Serial 2.5mm Jack | Remote to USB – Z CAM |
Cut & Tag | |
FCP XML | Yes, with 10 tags |
Supported Applications | |
XML | Apple Final Cut Pro |
Apple ProRes RAW | Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH |
Video Codecs | All NLE applications that support Apple ProRes, Avid DNx and H.265 in .MOV wrapper |
What’s in the box | |
Accessories included | SHOGUN CONNECT, International Power supply, 7" protective Pouch, AtomX SSDmini Handle, MasterCaddy III with screws, Wifi Antenna with Black caps, RF antenna, Antenna storage Pouch, 3.5mm audio jack to jack cable, Antenna coloured caps, Antenna mount covers, Screen Cloth |
Optional extras | AtomX Monitor Mount, AtomX Magic arm 10" / 13", USB-C Dock, PowerKit, HDMI cables |
This product comes with 12 Months Australian Warranty with Atomos. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Atomos Shogun CONNECT 7" Network-Connected HDR Video Monitor & Recorder
International Power supply
7" protective Pouch
AtomX SSDmini Handle
MasterCaddy III with screws
Wifi Antenna with Black caps
RF antenna
Antenna storage Pouch
3.5mm audio jack to jack cable
Antenna coloured caps
Antenna mount covers
Screen Cloth
