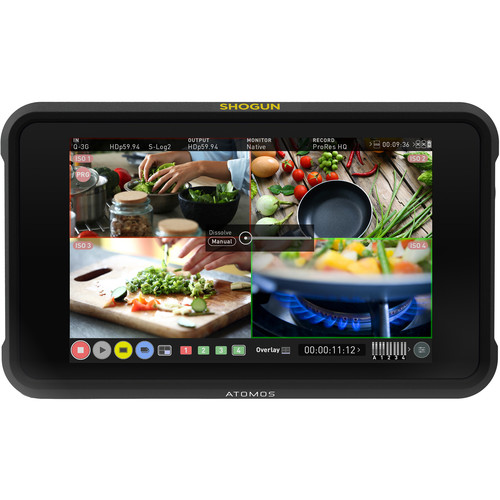

Atomos Shogun 7 On Camera Monitor Recorder
A$2,149.00
Out of stock
Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
- True 1920x1200 resolution
- Record DCI 4K raw recording
- ISO recording up to 4 HD-SDI camera streams
- Monitor resolutions up to DCI 4K at 60FPS, 2K at 240p
Powerful things will always come in small packages, and you can say that it's true with the Atomos Shogun 7 HDR Pro. A versatile camera with a true 1920x1200 resolution, you can record DCI 4K raw recording, ISO recording up to 4 HD-SDI camera streams, and monitor resolutions up to DCI 4K at 60FPS, 2K at 240p.
| Weight | |
| Without batteries & media | 709g / 25oz. |
| Dimensions (W x H x D mm) | 214 x 127 45mm |
| Construction | Polycarbonate ABS |
| Mounting points | 1/4”-20 screw mount. 1x top and 1x bottom |
| Power | |
| Operating power | 10 - 33W |
| Compatible batteries |
Atomos NP-F series and supporting accessories
|
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 2 x 7.4V) |
5200mAh - up to 1.5hrs (monitor & record 4K 30p)
|
|
7800mAh - up to 2.2hrs (monitor & record 4K 30p)
|
|
| DC In | 1 x DC in (6.2 - 16.8V) |
| Touchscreen | |
| Size | 7.2” |
| Resolution | 1920 x 1280 |
| PPI | 325 |
| Aspect ratio | 16:9 native |
| Color Gamut | Up to Wide color gamut (105% DCI-P3) |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
| Technology | Dynamic AtomHDR zoned backlight IPS LCD |
| Dynamic AtomHDR Technology | |
| Backlight | Direct LED |
| Zones | 360 direct backlight individual LEDs |
| LEDs | Wide Color Calibrated D65 or D95 |
| Bit depth | 10-bit (8+2 FRC) |
| Color | DCI-P3 105% |
| Brightness | 3000nits (+/- 10%) |
| Control |
On the fly real-time brightness analysis for LED control
|
| HDR Conversion | Log/RAW to HLG or PQ |
| HDR Monitoring Technology | |
| Gamma |
Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm FujiFilm F-log Nikon N-Log PQ10k HLG
|
| Gamut |
Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon Bt2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 /
|
| Video Input/Loop Out | |
| HDMI | HDMI 1 x HDMI (2.0) |
| SDI |
Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI
|
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Genlock | Genlock input signal and output signal |
| Video Output (Play Out) | |
| HDMI | 1 x HDMI (2.0) |
| SDI | 2x 4K-SDI 12G or HD-SDI 3G/6G |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Video Signal Conversion | |
| HDMI to SDI | - |
| SDI to HDMI | - |
| Audio In/Out (48kHz PCM Audio) | |
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | 12ch 48kHz 24-bit |
| Audio | 2ch balanced XLR analogue in/out Dynamic range >90dB Max signal level +24dBu Max analogue gain +52dB 48V Phantom Power for Mic |
| Headphone out | 3.5mm 2ch. |
| Supported Codecs & Frame Rates (Record & Playback) | |
| Raw to: | ProRes RAW ProRes CinemaDNG (CDNG up to 30p only) Avid DNxHD |
| Sony^^ FS700, FS-5, FS-7, FS-7MkII |
4K DCI; 24/25/30/50/60p 4K UHD; not supported in camera 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera |
| Canon C300MKII/C500 CDNG |
4K DCI; 24/25/30p 4K UHD; 24/25/30p 2K; not supported in camera 1080; not supported in camera |
| Panasonic VaricamLT, EVA1 |
5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)
4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera |
| Supported base resolution & FPS from cameras | 4K DCI: 23.98/29.9/59.94p 4K UHD: 23.98/29.9/59.94p 2K DCI: 23.98/29.9/59.94p 1080p: 23.98/29.9/59.94p |
| Supported FPS & resolution from gaming consoles and graphic cards | 1080p; 24/25/30/50/60/100/120 |
| Onboard Processing | |
| Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring |
Yes - Loop-out and playback (Not available in RAW)
|
| Remote Start/Stop | |
| HDMI |
Auto HDMI Trigger
Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| Other | LANC control - Slave |
| Playback | |
| Playlist / Genlock / LTC | Yes / Yes / Yes |
| CDNG (Recorded content) | No support |
| ProRes (Recorded content) |
All recorded files can playback. Playback in slow motion >= 100fps.
|
| DNxHR / DNxHD (recorded content) |
All recorded files can playback. Playback in slow motion >= 100fps.
|
| Recording | |
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes* |
| Supported media |
2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
|
| Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
| Supported applications |
Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke
|
This product comes with 1 year Genuine Warranty with Atomos Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Shogun 7 unit, Master Caddy II x 1, 12V-3A AC power supply, Carry Case, Quick Start guide
