Atomos Ninja V+ Pro Kit 5" 8K HDMI/SDI Monitor/Recorder
A$2,129.00
Out of stock
Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
- Includes Atomos Ninja V+ 5.2" Recording Monitor
- Includes AtomX SDI Module with 2 x 12G-SDI Ports
- Includes Atomos Connect 4K HDMI to USB Converter
- Up to 8K Raw Recording via HDMI & SDI
- Simultaneous 1 x HDMI & 2 x 12G-SDI Out
- HDMI-SDI Cross Conversion, Drive Caddy
- AtomHDR Support for Log Inputs & 3D LUTs
- Pre-Activated SDI Raw, H.265 License
The Atomos Ninja V+ Pro Kit 5" 8K is a professional video recording system that includes a 5" 8K HDMI UHD resolution monitor and a 5" 8K HDMI UHD resolution recorder.
It comes with an AtomX SDI Module with 2 x 12G-SDI Ports, an Atomos Connect 4K HDMI to USB Converter, and a Complete Mounting Kit.
The Atomos Ninja V+ Pro Kit 5" 8K HDMI/SDI Monitor/Recorder is a professional, high-performance system designed for production and creative workflows. The Ninja V+ Pro Kit is the first of its kind with up to 8K RAW 8-bit recording and up to 4K RAW 10-bit recording (6K 10-bit RAW available in firmware update soon). With an integrated HDMI 2.0b input and SDI output, the Ninja V+ offers an ultimate live production solution for your broadcast project
The Atomos Ninja V+ Pro Kit 5" 8K HDMI/SDI Monitor/Recorder is an advanced professional camera accessory that supports 8K resolution. It features a massive 5" LCD touchscreen and a powerful 120Hz. The system records in 8K UHD raw with a 4:4 color-space. The system features 2 x 12G-SDI Out ports, which can be used to output to two different devices simultaneously. The HDMI-SDI Cross Conversion is compatible with most SDI devices (cameras/dv/etc.)
Product Features in Detail
Up to 8K Raw Recording via HDMI & SDI
The Atomos Ninja V+ Pro Kit 5" 8K HDMI/SDI Monitor/Recorder’s recording is twice the resolution of HD and gives you 8K raw recording options without pixel limitations. You can also record UHD 4K at 100MBPS with HDMI and SDI outputs for your monitoring needs.
1 HDMI & 2 12G-SDI Out
With a 12G SDI Output, you can transmit a higher resolution signal than the standard SDI and get a sharper, more detailed image with fewer lines in between. The Atomos comes with a standard HDMI output for compatible cameras and outputs.
HDMI-SDI Cross Conversion
Your Atomos package comes with a HDMI-SDI cross conversion, giving you the ability to capture footage in a format that can be easily used in post-production. Integrate with 3D production to get a wider signal bandwidth, allow SDI signals to be sent over a longer distance, and get the ability to work with different types of equipment
AtomHDR Support for Log Inputs & 3D LUTs
The AtomHDR Support for Log Inputs is a feature that provides support for the AtomHDR log input. This feature allows you to use the AtomHDR log input with the AtomHDR Sink. This can save you time and effort when you are building pipelines with the AtomHDR sync.
Pre-Activated SDI Raw, H.265 License
Get better quality with the right license just by purchasing your very own Atomos Ninja V+ Pro Kit 5" 8K HDMI/SDI Monitor/Recorder
| Physical Specifications | |
| Dimensions (W x H x D mm) | 151 x 91.5 x 31mm (Ninja only) |
| Weight | 360g / 12.7oz |
| Mount points | 1 x Anti rotation 1/4" / 3/8 top and bottom |
| Environmental | |
| Ambient operating temperature | Up to 40°C |
| Construction and Control | |
| Body | Aluminium with ABS plastic |
| Cooling | Heat Sink and actively controlled fan with user selectable modes in menu |
| Tally light | Rear and front |
| Multi-function button | Power / lock screen |
| AtomXpansion slot | Yes |
| Power | |
| Input voltage | 6.2V to 16.8V |
| Operating power | 5.8-7.2V |
| Compatible batteries | NPF L series |
| Built in battery | No |
| Battery Run time (Record) | 5200mAh - up to 2hrs (monitor & record 4K 60p)<br/>7800mAh - up to 3hrs (monitor & record 4K 60p) |
| Continuous power | Via Optional AtomX SYNC Module |
| DC in connector | Via DC Jack on Battery Eliminator |
| Dtap | Battery Eliminator and D-Tap to DC cable (included) |
| Display | |
| Touchscreen | SuperAtom IPS panel (capacitive touch) |
| Size | 5.2" |
| Resolution | 1920 x 1080px |
| PPI | 427 |
| Bit depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness (cdm2 / nits) | 1000 |
| Aspect ratio | 16:09 |
| Color Gamut | Rec.709 |
| Calibration support | Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM Log, Lecia L Log |
| Gamut | BT2020, DCI P3, DCI P3 D65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 /RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube Format |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR output Conversion | Log / HDR to HLG / PQ / Dolby Vision |
| Video Input | |
| HDMI | 1 x HDMI (2.0) 4Kp60 |
| HDMI RAW | ProRes RAW up to 8Kp30 |
| SDI | 2 x 12G SDI Backwards compatible (Auto detection) via included AtomX SDI module |
| SDI RAW | Yes ProRes RAW up to 6K (NOTE: Sony FS700, FS5, FS7 supported from 10.71) |
| Bit Depth | 8/10-bit Video / RAW up to 16-bit |
| Video Chroma Subsampling | 4:02:02 |
| HDCP copy protection | Not supported |
| Metadata | |
| HDMI | RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
| SDI | File name via SDI for Arri and RED |
| Video Output | |
| HDMI | 1 x HDMI (2.0) 4Kp60 |
| SDI loop out | 1 x 12G SDI via included AtomX SDI module - level A and B selectable |
| SDI Play out | 2 x 12G SDI via included AtomX SDI module - level A and B selectable |
| Video Chroma Subsampling | 4:02:02 |
| Bit Depth | 10-bit video |
| Web Streaming | |
| USB UVC | Optional via Connect 4K |
| Video Signal Conversion | |
| HDMI to SDI | Yes - Video and RAW |
| SDI to HDMI | Yes - Video and RAW |
| Audio In/Out | |
| Audio Quality | 24/48KHz |
| Audio Codec | PCM |
| HDMI | 8ch 24-bit, input dependent |
| SDI | 12ch 24-bit, input dependent |
| Analogue Audio in | 3.5mm 2ch. |
| Analogue Audio Out | 3.5mm 2ch. |
| Headphone out | 3.5mm 2ch. |
| Timecode / Sync | |
| Embedded | HDMI and SDI |
| Time of day | Yes, Time and Date |
| LTC | via 3.5mm audio Jack input (Requires post processing) |
| Wireless SYNC | Via Optional AtomX SYNC Module |
| Resolution and Frame Rates (Record, Monitor & Playback) | |
| 8k | RAW Only up to 30p via HDMI |
| 6k | RAW Only up to 30p via HDMI and SDI (Camera dependent 5.9k HDMI and 5.7k SDI) |
| 5k | RAW Only up to 30p via HDMI |
| 4k DCI | 23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras |
| 4k UHD | 23.98/24/25/29.97/30/50/59.94/60p - HFR 100p/120p via RAW over SDI on selected cameras |
| 2K DCI 2046 x 1080 | 23.98/24/25/29.97/30/50/59.94/60p - HFR 100p/120p/200p/240p via RAW over SDI. HFR 100p/120p over HDMI on selected cameras |
| Anamorphic | 3.5K: RAW up to 60p (from supported cameras only) |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60/100/120p |
| FHD 1920 x 1080 PsF | Converted to P and looped out PsF |
| FHD 1920 x 1080 Interlaced | 50/59.94/60i |
| 1280 x 720p | 50/59.94/60p |
| Recording CODEC | |
| Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
| Apple ProRes | LT, 422, 422HQ |
| Avid DNxHD | DNxHD 220x, 220, 145, 36 (Activation required visit my.Atomos.com) |
| Avid DNxHR | LB, SQ, HQ, HQX. (Activation required visit my.Atomos.com) |
| H.265 | LQ, MQ, HQ in 8/10-bit, 4 2 2 and 4 2 0 |
| Playback | |
| Playlist | Yes, create custom playlists from full or sub clips |
| Loop | Yes, with user customizable in / out markers |
| Apple ProRes Raw | Yes, recorded clips |
| Apple ProRes | Yes, with Linear PCM audio |
| Avid DNx | Yes, with Linear PCM audio |
| H.265 | Yes, recorded clips (Activation required visit my.Atomos.com) |
| Recording functions | |
| Pre-roll record | Yes (HD 8s, 4K 2s) - Not available in RAW |
| Timelapse | Yes |
| Multi Input / Switching | |
| SDI A/B toggle | Via menu option to toggle between inputs on optional AtomX SDI module |
| Supported media | |
| Master Caddy I | Not compatible |
| SSDmini | Native Size and Fit |
| CFast II | Via Supported cards via optional SSDmini CFAST II Adapter |
| File Naming | Scene, Shot, Take / File name via SDI for Arri and RED |
| File System | ExFAT |
| On screen tools | |
| MultiScope Analysis View | Yes, 3 size / Position |
| Histogram | Yes, 3 size / Position |
| RGB parade | Yes, 3 size / Position |
| Vector scope | Yes, 2 size / Position |
| 1 x Zoom | Yes. 1:1 Pixel mapping for 4K |
| 2 x Zoom | Yes |
| Focus peaking | Colour selected / threshold setting / colour / Mono / edges only |
| False colour | Yes, with Scale |
| Zebra | Yes, Adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | 9:16, 1:1, 191:1, 4:5 |
| Safe areas | Action and Graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x 1.33x , 1.5x ,1.8x ,2x |
| Display Flip | Vertical Only |
| Onboard Signal Processing | |
| Pulldown Removal | 24/25/30pSF > 24/25/30p (2:2 pulldown)60i > 24p (3:2 pulldown) |
| 4K UHD Downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 Crop |
| Remote control | |
| HDMI | Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| Serial 2.5mm Jack | LANC control and calibration via optional USB to serial cable |
| Bluetooth LE | Via AtomRemote app (requires AtomX SYNC module) |
| Wireless RF | via optional AtomX SYNC module |
| External Device Control | |
| Serial 2.5mm Jack | Camera control for supported cameras via optional USB to Serial Cable |
| Bluetooth LE | Via optional AtomX SYNC module to compatible devices |
| Wireless RF | Via optional AtomX SYNC module to compatible devices |
| Supported Applications | |
| XML | Cut tag EDL in FCP XML |
| Apple ProRes RAW | Apple FCP, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. |
| Video Codecs | All applications with support for ProRes and Avid DNX in .MOV wrapper |
This product comes with 1 year Genuine Warranty with Atomos Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

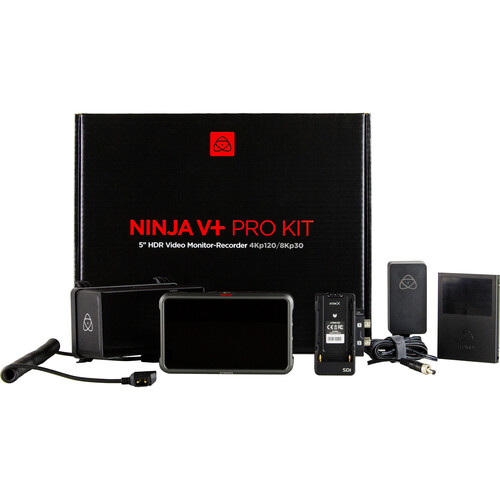

Atomos Ninja V+ Pro Kit 5" 8K HDMI/SDI Monitor/Recorder
H.265 (HEVC) codec Pre-Activated
AtomX SDI module
EVA Carry Case
5″ Slip Case
Battery Eliminator
International DC Power Supply
1 x Master Caddy II
1 x DTap Cable
1 x AtomX 5″ Sunhood
Quick Start Guide
