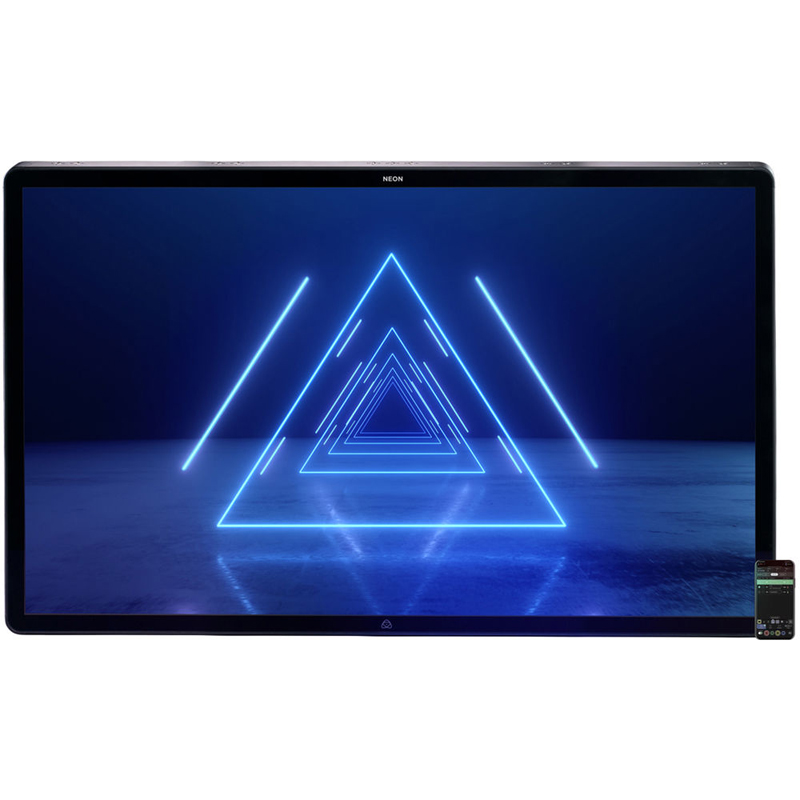

Atomos Neon 55" 4K HDR Monitor Recorder

As a part of the NEON family of Monitor Recorder, the Atomos Neon 55" 4K HDR Monitor Recorder offers a consistent and accurate monitoring solution providing precise contrast, blacks, plus ProRes Raw, ProRes, DNx, Cinema DNG recording. This monitor recorder measures 55" and has 3840 x 2160 Native Resolution which also supports up to DCI 4K/UHD 4K. Its clear imaging also supports 10-Bit DCI P3 Color Gamut Display with 1000 cd/m² with 512 Backlight Zones 84 ppi to achieve a contrast ratio of 1,000,000:1. A user-replaceable Master Control Unit runs the AtomosOS which controls the monitor. It can also Sync and Control Multiple NEONs from App and capable of capturing ProRes and DNx to a 2.5" SSD via Master Caddy II. The monitor features loop-through and cross conversion outputs, and it supports both Rec 709 and Dolby Vision.

Product Features in Detail

Providing certainty of image
NEON 31 are precision on-set and in-studio 4K HDR production monitors that also record and play back. Featuring full array local dimming (FALD) to achieve1000nit/cdm2 full screen brightness, 0nit / cdm2 Black point and a 1500nit HDR peak brightness. With wide gamut DCI P3 coverage, built in LOG transforms for HDR monitoring and custom 3D LUTs for SDR the NEON series provide accurate monitoring for either production or post.

Full screen brightness withdeep blacks and wide color gamut
Our flagship NEON 24 utilizes a combination of high quality 17:9 4k DCI resolution, true 10-bit panel fidelity with full array local dimming back light that delivers 0nit deep blacks, 1000nits full screen brightness and with a HDR peak brightness of 1500nits.

Color Managed Display Pipeline
The AtomHDR engine provides the ability to accurately manage your input and display Gamma/Gamut. Selectable monitor modes allow you to work in either SDR or HDR project settings, that match both camera acquisition settings, or defined delivery standards including Rec.709, Rec.2100 HLG or ST.2084 PQ. NEON provides native accurate color with DCI-P3 coverage. Wide color gamuts, such as BT.2020, are accurately processed by the AtomHDR engine to deliver consistent representations. Built in transforms, allow for the conversion of LOG to HDR standards or utilise 3D LUTs for SDR, to monitor with a specified look or exposure compensation. Downstream output options also provides for conversion between standards to best suit the target display with options for SDR, LUTs or HDR.

Flexible and Upgradeable I/O
The foundation of the NEON platform is a modular approach that ensures the I/O of the monitor is both easy to maintain, replace and ultimately upgrade without having to take the panel out of commission. The Master Control Unit (MCU) is the brain of the NEON with support for HDMI 2.0 for both in and loop out, which provides support for video input at 4096 x 2160 4k DCI at up to 60p.

The MCU firmware is easily upgradable and allows the upload and storage of up to 8 x 3D LUTs in its internal memory or can use a 2.5” HDD or SSD to store an unlimited library that can easily be uploaded to the NEON via the AtomRemote App** on iOS. The MCU offers a second level of expansion via the Xpansion port and NEON includes the AtomX SDI module which provides 2 x 12G SDI. The configurable ports allow for input of up to 4k60p video.

As standards and interfaces develop, both the MCU and Xpansion port modules can be changed and upgraded to meet your needs without needing to change the entire monitor.

Record and Playback modes
Connect cameras or any video source via SDI, supporting up to 4K DCI 60p via 12G or Dual 6G or lower resolutions and frame rates via 1.5/3G SDI up to 2Kp60 with up to 12 channels of embedded audio. Recordings can easily be played back and reviewed without needing to off load media or take the camera out of record mode. HDMI signals without HDCP are supported up to 4k60p or HD 120fps with up to 8 channels of audio and detection of HDR info frame to automatically match the input signal type. 10bit 422 recordings are captured to industry standard Apple ProRes of Avid DNx Codec using Scene Shot Take file naming with rich metadata in the file header that can be utilized by your NLE or MAM system to asset orchestration.

To play back files recorded to SSD on the NEON, or SSDs from other Atomos devices, simply place the SSD in to the MCU drive slot. Clips can also be exported directly from your NLE or transcoded toProRes/DNx to be played back on the NEON.

Frame Guides and Anamorphic De-squeeze
A variety of broadcast frame guides with the option to EBU R5 Graphic and Action safe areas can be enabled. Cinematic guides are also available and can all be used alongside the anamorphic de-squeeze mode with support for 2x, 1.5x and 1.33x to allow you to match a wide variety of lenses.

App control for all essential monitoring tools
Waveform Monitors
Offer Luma Parade, RGB parade, Vector Scope with Vector zoom to monitor levels with specific graticule scales across input EOTFs.
Pixel Zoom
Allows operators to punch in to check shots for focus or aspects of the detail with pan and scan around the image.
Focus Peaking
Color, Mono and edges only enable easy focus pulls or shot selection. Traditionally used on set but also ideal when reviewing shot selects.
Adjustable Zebras
Exposure check and analysis.
False color
Exposure check and analysis. can be used in both production and post to set exposure or identify areas that may need to be painted down with power windows.
Audio at a glance
Audio PPMs for all embedded channels with headphone monitoring of selected stereo pair. Additional input can be via 3.5mm jack located on the MCU.
