The RodeLink Digital Wireless System Kit is the answer to digital recording of up to 100 metres range. It uses series II, 2.4GHz digital transmission with 128-bit encryption capable of handling long frequencies maintaining a strong signal. This kit features OLED display (on receiver) providing the status of the battery, level info, channel, and mute selection. It is powered by either a AA battery or USB. The wireless system consists of three level gain control and one button pairing.

Product Features in Detail

Digital wireless system
RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres (over 100 yards).

Wireless video shooting

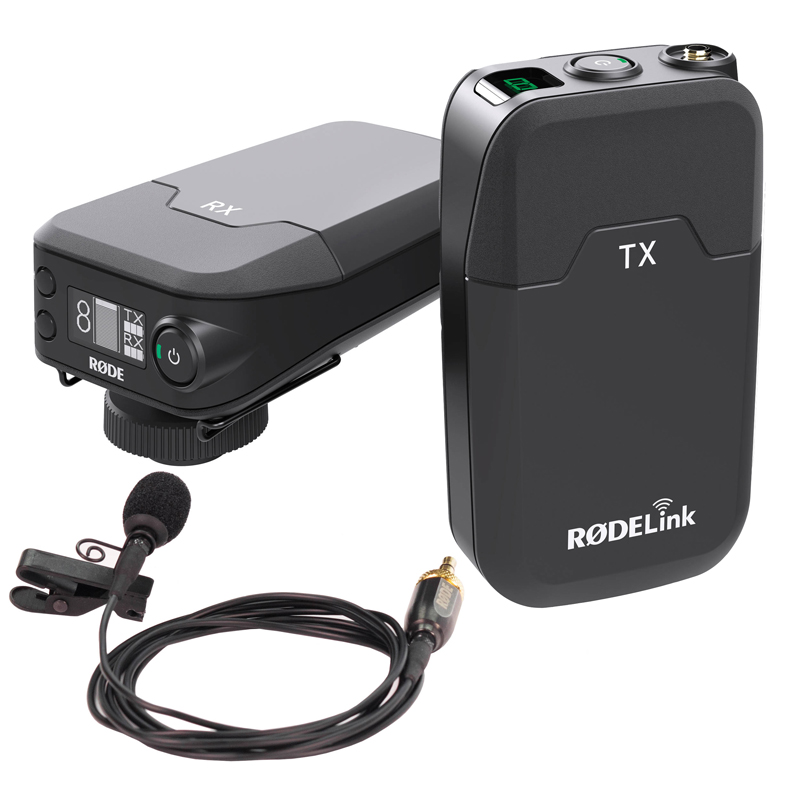

The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone.

OLED display
The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection.

3/8" thread shoe mount
The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions.

Secure microphone connection
The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible.

Omnidirectional Lavalier microphone
RØDE’s omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.

Pwerful & Secure
Using a series II 2.4GHz encrypted digital transmission that is sent on two channels simultaneously, RØDELink automatically selects the strongest signal and ensures your audio is as reliable and secure as a cabled connection.

Designed & made in Australia
The RØDELink system is proudly designed and manufactured at RØDE’s headquarters in Sydney, Australia.

Specification

Transmission type	2.4GHz Fixed Frequency Agile System
System dynamic range	112dB
Range (distance)	100m
Frequency range	35Hz - 22kHz
Maximum output level	1v Rms (2.8v P-p)
Max input signal level	1v Rms (2.8v P-p)
Max latency	4ms
Receiver (RX-CAM)
Power source	2 X AA Battery Or MicroUSB
Antenna	Internal
Output connection	3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance	300Ω
Dimensions	111mm X 65mm X 52mm
Weight	190gm
Transmitter (TX-BELT)
Power source	2 X AA Battery Or MicroUSB
Antenna	Internal
Output connection	3.5mm TRS Locking Jack Socket
Output impedance	10kΩ
Dimensions	111mm X 65mm X 40mm
Weight	190gm
Lavalier
Acoustic Principle	Pressure Gradient
Active Electronics	JFET impedance converter
Capsule	0.10"
Address Type	End
Frequency Range	60Hz - 18kHz
Output Impedance	3000Ω
Maximum SPL	110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level	189.0dBu (@ 1kHz, 1% THD into 1KΩ load
Sensitivity	-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)	25dB-A
Weight	1.00gm
Dimensions	12.00mmH x 4.50mmW x 4.50mmD

Warranty

This product comes with 24 months Australian Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
