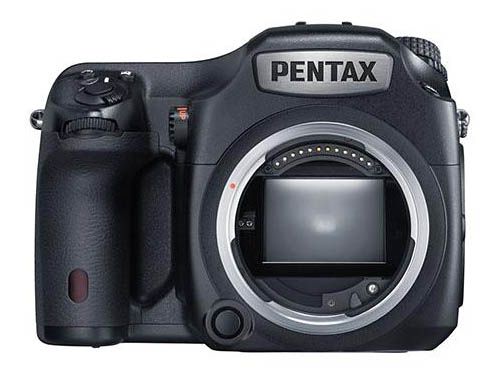

Pentax 645Z Medium Format DSLR Camera
- 51.4 Megapixels
- 3.2” Tiltable TFT color LCD monitor
- 3 frames per second
- Full HD 1920x1080
- ISO AUTO/100 to 204800
- Extra Large CMOS sensor (43.8 x 32.8mm)
- TTL autofocus
- Weather resistant body
- Magnesium alloy shell over aluminum chassis
- No low pass filter
- 12 Months Genuine Warranty with Pentax Australia
Practice the different outlook of medium format photography with Pentax 645Z. It seamlessly combines vivid build quality in magnesium alloy shell over aluminum chassis. It also has weather resistant feature, exceptional operability at ISO AUTO/100 to 204800 and hyper resolution with 51.4 million effective pixels in CMOS sensor that is capable of recording Full HD 1920x1080 video. Intended to touch the needs of a wide array of professional photographers, this camera offers superb response and speed with 3 frames per second continuous shooting, and fast image transfer and review. Check out your images with the high-resolution, tiltable 3.2 inch, LCD monitor and relive those precious moments that you took beforehand. It allows capturing beautiful HD movies right in your hand. Take your photography to the next level, from the commercial studio up to the field, with the distinctly brilliant Ricoh Imaging.
Product Features in Detail
51.4 effective mega-pixel CMOS sensor
Designed to meet the demands of professional photographers, the 645Z offers a 43.8mm x 32.8mm 51.4 mega-pixel CMOS sensor, which is ideal for ultra-high resolution imaging, exceptionally large printing applications and outstanding cropping flexibility.
Class leading speed and response
Built with the assumption that every second matters, the 645Z offers a fast frame rate of 3.0 FPS, quick image processing to rapidly review images, and swift image transfer with USB 3.0 computer connection.
Versatile live view with a tiltable LCD panel
The high-resolution, tiltable, air-gapless 3.2-inch LCD monitor with approx. 1,037,000 dots offers live view for convenient framing and reviewing of image lighting. The tilting LCD is convenient for waist level or overhead shooting.
SAFOX 11 Autofocus Module
Assure the sharpest focus with the SAFOX11 autofocus module. Maximizing 27 AF sensors and a vast light sensitivity range of –3EV to +18EV, the focus module includes 25 cross sensors and three AF sensors dedicated to low light focusing
Real Time Scene Analysis with 86,000 pixel sensor
The new Real Time Scene Analysis System features an 86,000 pixel RGB light-metering sensor and improved algorithms that further enhance accuracy of exposure, white balance and autofocusing. This assures a perfectly exposed image even in difficult lighting conditions.
Durable design
With a magnesium alloy body, die cast aluminum chassis, and 76 special seals, the 645Z boasts a fully weather and coldproof design to resist water, fog, snow, sand and dust, for top performance in extreme field conditions as well as in the studio.
Anti Aliasing filterless design
Anti Aliasing filterless design achieves superior resolution for rich, detailed imagery at supreme resolution where camera settings, lens selection and shooting conditions are controlled to prevent moiré.
Optional Flucard, Eye-Fi Wireless, and SDXC Memory card compatibility
Perfect for studio or macro shooting situations, the optional 16 GB Flucard for PENTAX in the 645Z allows the photographer to remotely change settings such as aperture, shutter speed and ISO, shift the AF focus point, release the camera shutter, check a Liveview image, and browse and download images to any web browser enabled device. Eye-Fi Wireless and standard SDXC Memory cards are also compatible.
100-204800 ISO
High sensitivity range of ISO 100-204800 with improved noise performance throughout, including ISO-specific noise reduction, the 645Z will be ready to perform in a wide range of light levels and shooting conditions.
HDR Image Capture
Improved in-camera HDR image capture features more blending options and better pixel registration for easier operation without a tripod.
Beautiful, full HD movies and H.264 video
Enhance your video recording experience with full HD movie capture in the H.264 format (1920 x 1080 pixels/60i/30p), also including the ability to switch from still image to video recording with the flip of a dedicated switch. Equipped with a stereo microphone terminal for external microphone connection, the user can also adjust the audio recording level manually and visually monitor sound levels during recording.
Dual SD card slots
Dual slot SD/SDHC/SDXC memory card support ensures fast and reliable storage for high resolution image files, simultaneously saving in multiple formats, assigning images to different cards based on their original format, or easily holding one memory card in reserve.
Multi-pattern white balance
When shooting scenes that include multiple light sources, such as sunlight and shade or flash, light sources are recognized automatically and the image is separated into different areas. White balance is adjusted separately in each area according to the different light sources to achieve optimal color reproduction. With a newly added Multi-Pattern Auto mode, switching back and forth between modes is easily achieved.
Customizable RAW/Fx button
Customizable RAW/Fx button allows for easy access to common shooting settings.
| Model Description | Type | TTL autofocus, auto-exposure medium format digital SLR camera |
| Lens Mount | PENTAX 645AF2 mount with AF coupler, lens information contacts, and power contacts Usable | |
| Lens | PENTAX 645AF2, 645AF and 645A mount lenses compatible, KAF, KA mount lens | |
| Image Capture Unit | Image Sensor | Type: CMOS with a primary color filter, Size: 43.8 x 32.8 (mm) |
| Effective Pixels | Approx. 51.4 megapixels | |
| Total Pixels | Approx. 52.99 megapixels | |
| Dust Removal | Image sensor cleaning using ultrasonic vibrations "DR II" with the Dust Alert function | |
| Sensitivity | ISO AUTO/100 to 204800 (EV steps can be set to 1EV, 1/2EV, or 1/3EV) | |
| (Standard output) | ||
| Image Stabilizer | Lens-shift type (By using SR system lens) | |
| File Formats | Recording Formats | RAW (PEF/DNG), TIFF, JPEG (Exif 2.30), DCF2.0 compliant |
| Recorded Pixels | JPEG: L (51M: 8256 x 6192), M (36M: 6912 x 5184), S (21M: 5376 x 4032), XS (3M: 1920 x 1440) | |
| RAW: L (51M: 8256 x 6192) TIFF: L (51M: 8256 x 6192) | ||
| Quality Level | RAW (14 bit): PEF, DNG JPEG:★★★(Best), ★★(Better), ★(Good), RAW + JPEG simultaneous recording available | |
| Color Space | sRGB, AdobeRGB | |
| Storage Media | SD, SDHC*, SDXC* memory card, Eye-Fi card, FLUCARD *UHS-I compatible | |
| Dual Card Slot | Sequential save, Save to Both Dual save, Separate RAW/JPG, Copying images between slots possible | |
| Storage Folder | Folder Name: Date (100_1018, 101_1019...) or user-assigned (default: PENTX) | |
| Storage File | File Name: user-assigned (default: IMGP****) File No.: Sequential Numbering, Reset | |
| Viewfinder | Type | Keplerian telescopic trapezoid prism finder |
| Coverage (FOV) | Approx. 98% | |
| Magnification | Approx. 0.62 x (55mmF2.8 at infinity), Approx. 0.85 x (75mmF2.8 at infinity) | |
| Eye-Relief Length | Approx. 21 mm (from the view window), Approx 24.1 mm (from the center of lens) | |
| Diopter Adjustment | Approx. -3.5 m to +2.0 m-1 | |
| Focusing Screen | Interchangeable Natural-Bright-Matte focusing screen | |
| Live View | Type | TTL method using CMOS image sensor |
| Focus Method | Contrast detection AF (Face Detection, Tracking, Multiple AF Points, Select, Spot) Focus Peaking: ON/OFF | |
| Display | Field of view: approx. 100 %, Magnified view (2x, 4x, 8x, 12x, 16x), Grid Display (Grid Style: 4x4 Grid, Golden Section, Scale, Square 1, Square 2, Grid Color: translucent black, translucent white), Histogram, Highlight Alert, Rotate Display 180° | |
| LCD Monitor | Type | Tiltable TFT color LCD monitor featuring an air-gapless structure with an AR-coated, tempered-glass front panel |
| Size | 3.2 inch | |
| Dots | Approx. 1037K dots | |
| Adjustment | Brightness, Saturation and Color adjustable | |
| White Balance | Type | Combination system of CMOS image and light source detection sensors |
| White Balance | Auto, Multi Auto, Daylight, Shade, Cloudy, Fluorescent Light (D: Daylight Color, N: Daylight White, W: Cool White, L: Warm White), Tungsten Light, Flash, CTE, Manual (up to 3 settings can be saved), Color Temperature (up to 3 settings can be saved), Copying the white balance settings of a captured image possible | |
| Fine Adjustment | Adjustable ±7 steps on A-B axis or G-M axis | |
| Autofocus System | Type | TTL: phase-matching autofocus |
| Focus System | SAFOX 11, 27 AF points (25 cross-type focus points in the center) | |
| Brightness Range | EV -3 to 18 (ISO 100, at normal temperature) | |
| AF Modes | Single AF (AF.S), Continuous AF (AF.C), Focus operation customizable | |
| Focusing Area Selection Modes | Spot, Select, Expanded Area AF (S, M, L), Zone Select, Auto (27 AF Points) | |
| Exposure Control | Type | TTL open aperture metering using 86K pixel RGB sensor Metering Modes: Multi-segment metering, Center-weighted metering, Spot metering |
| Metering Range | V -1 to 21 (ISO100 at 55mmF2.8) | |
| Exposure Modes | Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3 | |
| EV Compensation | ±5 EV (1/3 EV steps or 1/2 EV steps can be selected) | |
| AE Lock | Button type (timer-control: two times the meter operating time set in Custom Setting), Continuous as long as the shutter release button is halfway pressed | |
| Exposure Bracketing | 2, 3 or 5 frames, Available with Continuous, Self-timer or Remote Control | |
| Shutter | Type | Electronically controlled vertical-run focal plane shutter |
| Shutter Speed | Auto: 1/4000 to 30 sec., Manual: 1/4000 to 30 sec. (1/3 EV steps or 1/2 EV steps), Bulb | |
| Drive Modes | Mode Selection | [Stills] |
| Single Frame, Continuous (H, L), Self-timer (12 sec., 2sec.), Remote Control (immediately, 3 sec., continuous), Multi-exposure (available with Continuous, Self-timer or Remote Control), Interval Shooting, Interval Composite | ||
| [Movie] | ||
| Remote Control, Interval Movie Record | ||
| Mirror Lock-up Shooting | Available with Continuous, Self-timer, Remote Control or Multi-exposure | |
| Continuous Shooting | Max. approx. 3 fps, JPEG (L:★★★ at Continuous H): up to approx. 30 frames, RAW: up to approx. 10 frames, TIFF: up to approx. 12 Max. approx. 1 fps, JPEG (L:★★★ at Continuous L): up to approx. 300 frames, RAW: up to approx. 25 frames, TIFF: up to approx. 15 *When the sensitivity is set to ISO100. | |
| Multi-Exposure | Composite Mode: Additive, Average, Bright, Number of Shots: 2 to 2000 images | |
| Interval Shooting | [Stills] | |
| Interval: 2 sec. to 24 hr. Number of Shots: 2 to 2000 images Start Interval: Now, Set Time | ||
| [Movie] | ||
| Recorded Pixels: 4K, Full HD, HD Interval: 2 sec. to 1 hr. Recording Time: 14 sec. to 99 hr. Start Interval: Now, Set Time | ||
| Flash | Flash Modes | Flash On, Flash On+Red-eye Reduction, Slow-speed Sync, Slow-speed Sync+Red-eye, P-TTL, Trailing Curtain Sync, contrast-control-sync, high-speed sync, wireless sync (available with a dedicated external flash) |
| Sync Speed | 1/125 sec. | |
| Flash Exposure Compensation | '-2.0 to + 1.0 EV | |
| Capture Settings | Custom Image | Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Bleach Bypass, Reversal Film, Monochrome, Cross Processing |
| Cross Processing | Random, Preset 1-3, Favorite 1-3 | |
| Noise Reduction | Slow Shutter Speed NR, High-ISO NR | |
| Dynamic Range Settings | Highlight Correction, Shadow Correction | |
| Lens Correction | Distortion Correction, Lateral Chromatic Aberration Correction, Peripheral Illumination Correction, Diffraction Correction | |
| HDR Capture | Auto, Type1, Type2, Type3, Exposure Bracket Value adjustable, Auto Align (automatic composition correction function) available | |
| Electronic Level | Displayed in viewfinder and LCD panel (horizontal direction only); displayed on LCD monitor (horizontal direction and vertical direction) | |
| Movie | File Formats | MPEG-4 AVC/H.264 (MOV) *Motion JPEG (AVI) for Interval Movie Record |
| Recorded Pixels | Full HD (1920 x 1080, 60i/50i/30p/25p/24p), HD (1280 x 720, 60p/50p/30p/25p/24p) | |
| Sound | Built-in stereo microphones, external microphone (stereo recording compatible), Recording Sound Level adjustable | |
| Recording Time | Up to 25 minutes; automatically stops recording if the internal temperature of the camera becomes high. | |
| Custom Image | Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Bleach Bypass, Reversal Film, Monochrome, Cross Processing | |
| Cross Processing | Random, Preset 1-3, Favorite 1-3 | |
| HDR Capture *Available only for Interval Movie Record | Auto, Type1, Type2, Type3, Exposure Bracket Value adjustable | |
| Playback Functions | Playback View | Playback View...Single image display, Multi-image display (6, 12, 20, 35, 80 thumbnails), Image magnification (up to 16x, 1x display and quick zoom available), Grid Display (Grid Style: 4x4 Grid, Golden Section, Scale, Square 1, Square 2, Grid Color: translucent black, translucent white), Rotated image display, Histogram (Y histogram, RGB histogram), Highlight Alert, Auto Image Rotation, Detailed Information Display, Copyright Information (Photographer, Copyright Holder), Folder Display, Calendar Filmstrip Display, Slideshow, GPS information (latitude, longitude, altitude, Coordinated Universal Time (UTC) |
| Delete | Single image, all images, select & delete, folder, Instant Review image | |
| Digital Filter | Base Parameter Adj, Extract Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim | |
| RAW Development | Development options: Select single image, Select multiple images, Select a folder, Development parameters: File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space, Distortion Correction, Lateral Chromatic Aberration Correction, Peripheral Illumination Correction, Diffraction Correction, Color Fringe Correction, White Balance, Custom Image, Digital Filter, HDR, Sensitivity, High-ISO NR, Shadow Correction | |
| Editing Features | Color Moire Correction, Resize, Cropping (aspect ratio can be changed and tilt adjustment is available),Movie Edit (dividing a movie file and deleting unwanted segments), Capturing a JPEG still picture from a movie, Saving RAW Data, Image Copy, Eye-Fi Image Transfer | |
| Customization | USER Modes | Up to 3 settings can be saved |
| Custom Functions | 29 items | |
| Mode Memory | 11 items | |
| Button Customization/E-dial Programming | RAW/Fx Button: One Push File Format, Optical Preview, Digital Preview AF Button: Enable AF1, Enable AF2, Cancel AF, Preview Dial: Optical Preview, Digital Preview Illumination Button: LCD Panel Illumination, Modeling Flash, Test Flash E-dials (front/rear): customizable to each exposure mode | |
| Enable/Disable Controls | Type1: e-dials (front/rear), EV Compensation button, ISO button, AE Lock button, Green button, Exposure Bracketing button, AF area button Type2: e-dials (front/rear), EV Compensation button, ISO button, AE Lock button, Green button, Exposure Bracketing button, AF area button, four-way controller, AF point change button, OK button, AF button, RAW/Fx button | |
| Text Size | Standard, Large | |
| World Time | World Time settings for 75 cities (28 time zones) | |
| Language | English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese | |
| AF Fine Adjustment | ±10 step, adjustment for all lenses or individual lenses (up to 20 can be saved) | |
| Copyright Information | Names of "Photographer" and "Copyright Holder" are embedded to the image file. Revision history can be checked using the provided software. | |
| Power Supply | Battery Type | Rechargeable Lithium-ion Battery D-LI90 |
| AC Adapter | AC Adapter Kit K-AC132 (Optional) | |
| Battery Life | Number of recordable images: Approx. 650 images Playback time: Approx. 400 minutes *Tested in compliance with CIPA standard using a fully-charged lithium-ion battery under the temperature of 23°C. Actual results may vary depending on the shooting conditions. | |
| Interfaces | Connection Port | USB 3.0 (micro B), external power supply terminal, cable switch terminal, X-sync socket, HDMI output terminal (Type D) , stereo microphone input terminal |
| USB Connection | MSC/PTP | |
| Dimensions and Weight | Dimensions | Approx. 156 mm (W) x 117 mm (H) x 123 mm (D) (excluding protrusions) |
| Weight | Approx. 1550 g (including dedicated battery and an SD memory card) Approx. 1470 g (body only) | |
| Software | Digital Camera Utility 5 | |
| Package Contents | Strap O-ST150, Large eyecup 645 O-EC107, Rechargeable Lithium-ion Battery D-LI90, Battery Charger D-BC90, AC plug cord, Software (CD-ROM) S-SW150 (Installed on the camera) Standard eyecup 645, Hot shoe cover FK, Sync socket 2p cap, Body mount cap 645, Triangular ring and protective cover | |
The contents of this brochure are all copyrighted, and must not be used, duplicated or transmitted, whether in part or in entirety, without permission. This brochure is produced for personal, noncommercial use only, and must not be used for any purpose other than its intended use.
Designs and specifications are subject to change without notice.
Storage capacity (approx.) * When using a 32 GB memory card.
[RAW] 51M(8256×6192): 288 Shots(.PEF/DNG)
[TIFF] 51M(8256×6192):197 Shots
[JPEG...L] 51M(8256×6192): 852 Shots(★★★)/1940 Shots(★★)/3842 Shots(★)
[JPEG...M] 36M(6912×5184): 1213 Shots(★★★)/2753 Shots(★★)/5446 Shots(★)
[JPEG...S] 21M(5376×4032): 1998 Shots(★★★)/4526 Shots(★★)/8851 Shots(★)
[JPEG...XS] 3M(1920×1440): 14796 Shots(★★★)/30979 Shots(★★)/55074 Shots(★)
Movie recording time (approx.) * When using a 32 GB memory card.
[Full HD （1920×1080）]60i...02:10:11／50i...02:34:48／30p...02:10:11／25p...02:34:48／24p...02:40:53
[HD （1280×720）]60p...02:10:12／50p...02:34:48／30p...03:40:22／25p...04:20:23／24p...04:30:13
* You can record up to 25 min. or 4GB movie for one shooting.
* ‘Testing your camera’ refers to confirmed operation by RICOH IMAGING, and is intended for customer convenience but is not a guarantee by RICOH IMAGING to the customer.
* Use a high-speed SD memory card when recording movies. If the writing speed cannot keep up with the recording speed, writing may be interrupted during recording.
This product comes with 12 Month Warranty Card with CR Kennedy Australia .
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Pentax 645Z Medium Format Digital Camera
Li-ion Battery D-Li90 (E)
Strap O-ST150
Large Eye Cup O-EC107
Battery Charger Kit K-BC90
Hotshoe Cover FK
Software CD-ROM S-SW150
12 months Warranty with CR Kennedy Australia
