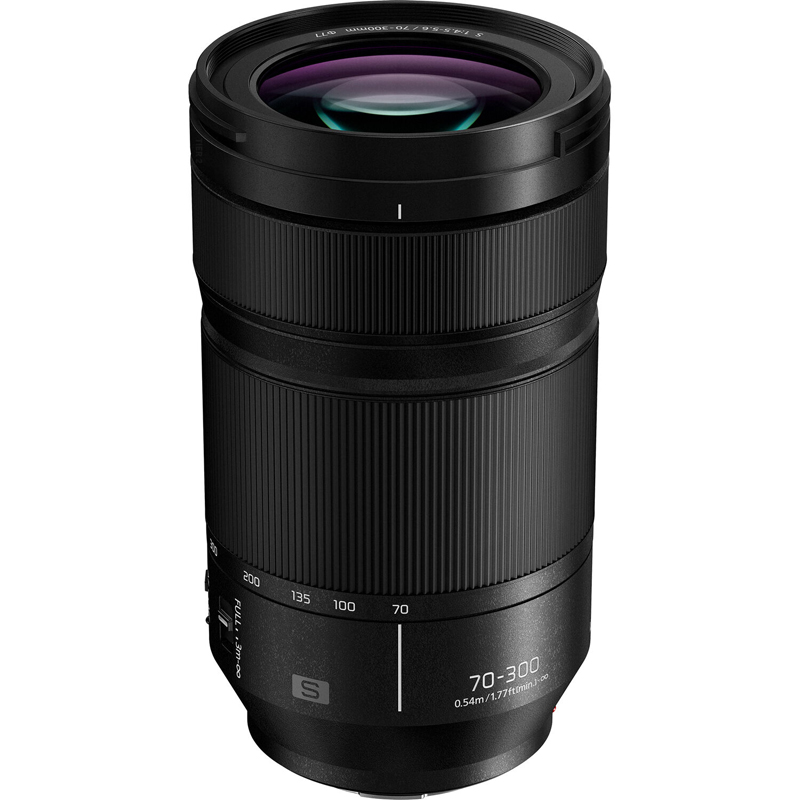

Panasonic Lumix S 70-300mm f/4.5-5.6 Macro OIS Lens
- L-Mount Lens/Full-Frame Format
- f/4.5-5.6 to f/22 Aperture Range
- 70-300mm Focal Length
- Linear AF Motor
- 2 ED Lenses, 1 UED Lens, 1 UHR Lens
- Optical Image Stabilization
- 17 Elements in 11 Groups
- Rounded 11-Blade Diaphragm
- Weather-Sealed Construction
The Panasonic Lumix S 70-300mm f/4.5-5.6 Macro OIS Lens is a lens for serious photographers. It gives the photographer a lot of flexibility that wide and long zooms don't give you. Plus, it is just as sharp as the widest zoom Panasonic makes up to 300mm at f/5.6.
It uses an internal motor to focus which means very fast AF speed along with full time manual focus override if desired. The large zoom ring is smooth and has a nice amount of resistance. It's also much easier to control the focal length with this zoom versus Panasonic's other long zooms due to having a little less range (70-300mm vs 70-400mm).
The focus ring has just the right amount of resistance as well—very easy to make slight adjustments, but not too loose when trying to fine-tune.
There's an optional LH-87 Lens Hood for this lens which should provide protection from flares when you are shooting towards the sun or other bright light sources.
Product Features in Detail
Versatile 70-300mm Zoom with Outstanding Image Quality
The LUMIX S 70-300mm telephoto zoom lens suits a broad range of shooting opportunities and maximum creative versatility. Its compact and lightweight design features a rugged dust and splash-resistant construction making it ideal for outdoor scenarios such as wildlife and sports photography.
Superb Close-up Performance
With a minimum focusing distance of just 0.74m at 300mm* the lens offers a maximum magnification of 0.5x, enabling you to zoom in on small objects to faithfully capture details, textures and colours in the most intricate subjects.
* Closest focusing distance of 0.54m (at 70mm) / 0.74m (at 300mm).
Beautifully Rendered Bokeh
The newly designed 11-blade circular aperture diaphragm offers impressive rendition of out-of-focus areas at wider apertures, and detailed, eye-catching starbursts when shooting concentrated light sources such as the sun with a narrower aperture setting.
O.I.S for Ultra-Sharp Photos and Super Steady Video
The 70-300mm lens features Dual I.S 2 compatibility, offering optical image stabilisation across 5-axis of movement. Its 5.5-stop compensation* improves image sharpness in photos and reduces camera shake in video for razor sharp, professional quality results.
* Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=300mm, when LUMIX S5 is used).
Dust, Splash and Freeze-resistant Design
Let the rugged construction of the LUMIX S 70-300mm lens inspire you with the confidence to keep shooting. Its dust and splash-resistant construction* complement the weather sealing in our S Series cameras, allowing you to shoot in dusty, wet or cold environments with peace of mind.
* Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Ultra-fast, Video Compatible Autofocus
The lens offers fast, accurate autofocus and smooth aperture changes, equipping the modern content creator with the ability to shoot ultra-sharp photos and cinematic quality video, even in varying lighting conditions.
Optimised Lens Construction
The S-R70300 Lens construction delivers true-to-life detail, despite its compact size. The 70-300mm lens features 17 elements in 11 groups including 2 ED, 1 UED and 1 UHR lens elements to minimise aberrations and deliver maximum detail with faithful colour reproduction.
S-R70300 MTF Chart
Offering outstanding sharpness and resolution throughout the entire zoom range, the 70-300mm is ideal for the LUMIX full-frame system. It delivers maximum creative versatility in a compact, lightweight, rugged design without compromising on image quality.
Note: For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the centre of the corrected image.
Lens Construction | 17 elements in 11 groups (2 ED lenses, 1 UED lens, 1 UHR lens) |
Mount | L-Mount |
Optical Image Stabiliser | Yes |
Focal Length | f=70-300mm |
Aperture Type | 11 diaphragm blades / Circular aperture diaphragm |
Maximum Aperture | F4.5 (Wide) - F5.6 (Tele) |
Minimum Aperture | F22 |
Closest Focusing Distance | 0.54m/1.77ft (at focal length 70mm) / 0.74m/2.43ft (at focal length 300mm) |
Maximum Magnification | 0.5x (at focal length 300mm) |
Diagonal Angle of View | 34°(Wide) - 8.3°(Tele) |
Dust and Splash Resistant | Yes* |
Recommended Operating Temperature | -10℃ to 40℃ (14℉ to 104℉) |
Filter Size | φ77mm |
Max. Diameter | φ84.0mm / 3.31inch |
Overall Length | Approx.148.0mm / 5.83inch (from the tip of the lens to the base side of the lens mount) |
Weight | Approx. 790g / 1.75lb (excluding lens cap, lens rear cap and lens hood) |
Standard Accessories | Lens cap, Lens rear cap, Lens hood |
Panasonic Lumix S 70-300mm f/4.5-5.6 Macro OIS Lens
Lens Hood
Front Cap
Rear Cap

SKU: Panasonic S-R70300GC
UPC: 8887549793479
