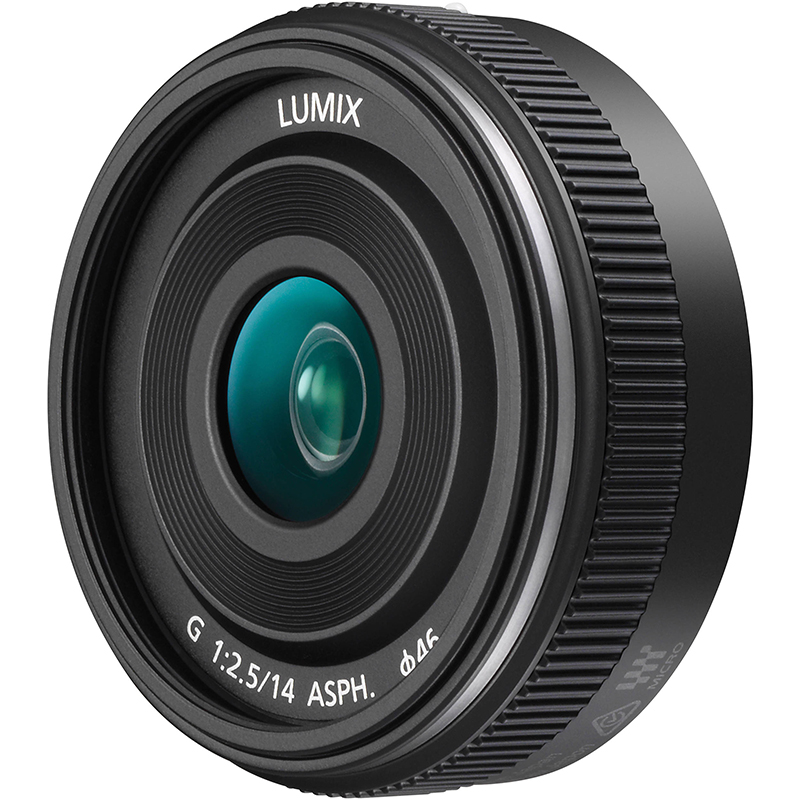

Panasonic Lumix G 14mm f/2.5 II ASPH Lens (Black)
- Micro Four Thirds System
- F2.5 Aperture
- 14mm Focal Length
- 28mm (35mm Equivalent)
- Three Aspherical Elements
- Multi-Coated Lens Elements
- Stepping AF Motor
- Inner Focusing System
- Rounded 7-Blade Diaphragm
- Durable Metal Mount
- 0.8" Slim Design
The Panasonic Lumix G 14mm f/2.5 II ASPH Lens (Black) is a sleek 0.8" Slim Designed wide-angle prime lens made for use with Micro Four Thirds System cameras featuring 14mm Focal Length which is 28mm (35mm Equivalent). The F2.5 Aperture benefits in working with low lit situations. Its optical design consists of Three Aspherical Elements that minimizes chromatic aberrations and distortions to adapt greater image clarity and Multi-Coated Lens Elements to reduce lens flare and ghosting for greater color fidelity and contrast. The Inner Focusing System is combined with a Stepping AF Motor for a precise yet quick and silent autofocus.
Product Features in Detail
For Micro Four Thirds system cameras
With a thin profile of just 0.8"-thick, the Panasonic LUMIX G 14mm f/2.5 ASPH II Lens is a sleek wide-angle prime designed for Micro Four Thirds system cameras. Offering a 28mm-equivalent focal length, this lens takes on a wider-than-normal perspective to benefit its use in a broad variety of shooting situations. A stepping motor provides quick, quiet autofocus performance that is beneficial to both movie and still recording and an inner focusing system maintains the overall lens length during operation for greater responsiveness. This compact and versatile lens is an ideal option for everyday use.
Optical Design
The optical design comprises six elements in five groups, which includes three aspherical elements to minimize chromatic aberrations and distortions for greater image clarity and a reduction in color fringing. Additionally, a multi-coating has been applied to the lens elements to minimize surface reflections, flare, and ghosting for increased contrast and color neutrality. A rounded seven-blade diaphragm contributes to a pleasing out-of-focus quality when using selective focus techniques and an all-metal lens mount offers enhanced durability and mounting precision.
Lens Construction | 6 elements in 5 groups (3 aspherical lenses) |
Mount | Micro Four Thirds |
Optical Image Stabilizer | No |
Focal Length | f=14mm (35mm camera equivalent 28mm) |
Aperture Type | 7 diaphragm blades / Circular aperture diaphragm |
Aperture | F2.5 |
Minimum Aperture | F22 |
Closest Focusing Distance | 0.18m / 0.59ft |
Maximum magnification | Approx. 0.10x / 0.20x (35mm camera equivalent) |
Diagonal Angle of View | 75° |
Filter Size | φ46mm / 1.81in |
Max. Diameter | φ55.5mm / 2.19in |
Overall Length | Approx. 20.5mm (from the tip of the lens to the base side of the lens mount) / 0.81in |
Weight | Approx. 55g / 1.94oz |

SKU: Panasonic H-H014AE-K
UPC: 885170221239
