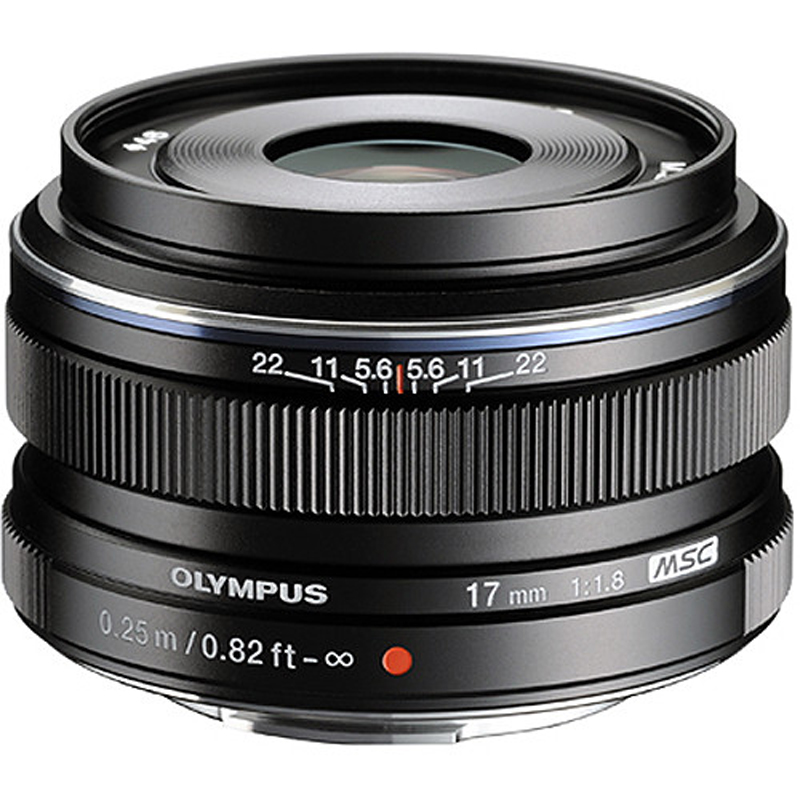

Olympus M. Zuiko Premium 17MM F1.8 Lens (Black)
- Aperture Range: f/1.8-22
- 17mm Single Focal Length
- High-Speed Imager AF (MSC)
- Snapshot Manual Focus Control Ring
- 16° Angle of View
- .08x Maximum Image Magnification
- Dual Super Aspherical Element
- High Refractive Index Element
- Extra-low Reflection Optical Coating
- For OM-D and PEN System Cameras
- Available in Black
The all metal M.Zuiko Premium 17MM F1.8 Camera Lens is a 17mm Single Focal Length prime lens that offers F/1.8-22 Aperture Range. It is designed for OM-D and PEN System Cameras. The lens has High-Speed Imager AF (MSC) providing ultra-fast focusing plus smooth and quiet video shoot. The Snapshot Manual Focus Control Ring allows optional manual focus control. The premium lens also features 16° Angle of View and .08x Maximum Image Magnification. With the combination of High Refractive Index Element and Dual Super Aspherical Element corrects high spherical aberrations while providing sharp images. Also, Extra-low Reflection Optical Coating is applied to the lens elements to help reduce flaring and ghosting in any situation. This lens is available in black.
Product Features in Detail
Achieving high-image quality/high-performance and compact size
9 elements in 6 groups, including a DSA lens that incorporates highly-accurate production technology; and an HR (High Refractive index) lens, that features high spherical aberration correction capability, are packed into a 35.5mm, 120g compact body. Boasts sharp, high-contrast image throughout the image area even at F1.8 aperture. State-of-the-art technology and know-how acquired through years of experience made it possible to achieve this level of image quality and high performance whilst ensuring a small size.
ZERO Coating eliminates ghosts and flares
ZERO (Zuiko Extra-low Reflection Optical) Coating is applied to the lens surface to eliminate ghosts and flares that used to be difficult to reduce because of their high transparency. ZERO Coating boasts clear image quality even under challenging conditions such as backlit conditions.
Bright F1.8 aperture and in-body image stabilisation are effective under low light conditions
All OM System OM-D and PEN cameras feature an in-body image stabilisation system. When combined with the fast F1.8 lens, blur-free images are easy even when shooting sunsets, low-light indoor scenes, and other locations where flash photography is not permitted (such as zoos and aquariums).
The MSC (Movie and Still Compatible) mechanism enables fast, quiet autofocusing
The MSC (Movie and Still Compatible) mechanism is the latest in optical design technology for achieving fast and silent focusing with a lightweight form and minimum number of lenses. The gears have been removed, eliminating operational noise. A sub-micron precision metal axis (shaft) and feed screw (screw drive) are used for efficient, direct driving of the lightweight focusing lens. Enabling faster and quieter autofocusing.. This lens employs an inner focusing system that uses the MSC mechanism. It performs autofocusing by optimally controlling the three small, lightweight lenses. Thanks to this smooth AF system, users can comfortably shoot both still images and movies.
The advanced snapshot focus mechanism lets you shift the focusing point to a specific distance
The snapshot focus mechanism enables you to take snapshots easily. Sliding the focus ring towards you to a specific distance reveals the distance markers engraved on the lens barrel as the focus point moves to a point on the distance marker. This mechanism allows quick deep-focus shooting, in which both subject and background are in focus, and quick no-finder shooting.
Sophisticated textured metallic finish for a stylish, classic look in a highly compact design
The solid yet comfortable-to-hold texture of the metal exterior, and the condensed, drifting, high quality feeling unique to a precision device were developed to ensure the camera remains stylish as the years pass. The metal lens hood and lens cap were specifically designed to accentuate the camera's style.
Focal length | 17mm (35mm equivalent focal length: 34mm) |
Maximum / Minimum aperture | F1.8/F22 |
Lens construction | 9 elements in 6 groups (DSA lens, 2 A spherical lenses, HR lens, etc.) |
Angle of view | 65° |
AF mode | High-speed imager AF (MSC mechanism) |
Closest focusing distance | 0.25m |
Maximum image magnification | 0.08x (35mm equivalent maximum image magnification: 0.16x) |
Minimum field size | 216 x 162mm |
Number of diaphragm blades | 7 (circular aperture diaphragm) |
Filter size | Ø46mm |
Mount standard | Micro Four Thirds System standard |
Size: maximum diameter x length | Ø57.5mm x 35.5mm |
Weight | 120g |
Box Contents | Lens Cap (LC-46), Rear Lens Cap (LR-2), Instruction Manual and Warranty Card |
Olympus M.Zuiko Premium 17MM F1.8 Camera Lens (Black)
Lens Cap (LC-46)
Rear Lens Cap (LR-2)
Instruction Manual
12 Months Warranty from Olympus Australia
