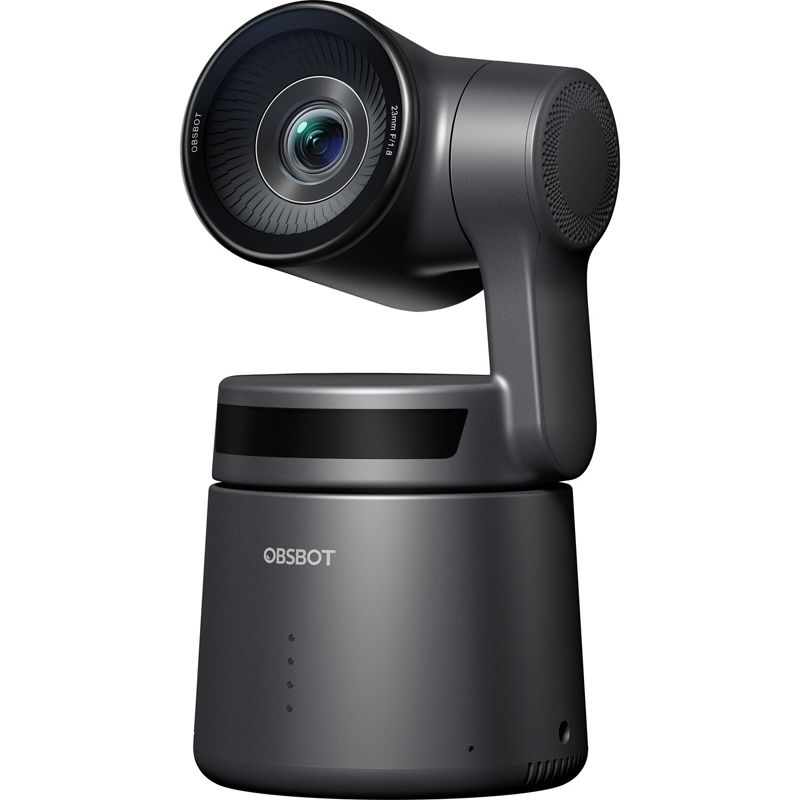

OBSBOT Tail Air
- Compact 4K USB PTZ Camera with 4x Zoom
- 1/1.8" CMOS, 6-Axis Gyro, 2-Axis Gimbal
- AI Subject Tracking, NDI|HX3 Support
- Built-In MEMS Mics, Mic Input, Tally LED
- 8-Element Lens with f/1.8 Aperture
- Dual Omnidirectional Microphones
- Infrared Time-of-Flight Target Tracking
- Wi-Fi, Bluetooth, USB-C Host Connection
- Control with Free OBSBOT Software
The OBSBOT Tail Air is a compact 4K USB PTZ Camera with 4x Zoom capability, featuring a 1/1.8" CMOS sensor, a 6-axis gyro, and a 2-axis gimbal for stable shooting. It offers AI Subject Tracking and NDI|HX3 support for seamless integration into various workflows. The camera is equipped with built-in MEMS Mics, Mic Input, and a Tally LED, enhancing its audio recording and indication capabilities. The 8-element lens with an f/1.8 aperture ensures high-quality imaging in various lighting conditions. It features dual omnidirectional microphones for clear audio capture, and an Infrared Time-of-Flight Target Tracking system for accurate subject tracking. The camera offers connectivity options including Wi-Fi, Bluetooth, and USB-C Host Connection. It can be controlled with the Free OBSBOT Software for easy and efficient usage.
Product Features in Detail
Upgraded AI Auto Tracking
Our industry-leading AI algorithm ensures auto uninterrupted tracking for humans, pets, or any objects, even amidst obstacles or at high speeds.
4K Ultra-clear Images
Experience crystal-clear video quality with resolutions up to 4K@30fps / 1080P@60fps. Outstanding video performance even in low-light conditions, credit to its 2μm large pixel size and ƒ1.8 aperture.
Seamless NDI Connectivity
Through wired or wireless NDI connection, establish seamless live streaming workflow in a minute, and engage with your audience or team members anywhere.
Multi-port Connections
No more hassles on mismatched ports. Now, you can easily connect Tail Air using USB-C, micro HDMI, or even a PoE-supported Ethernet cable.
*Note: Wired Ethernet connection requires the dedicated USB-C to Ethernet Adapter for Tail Air.
Optimal Solution for MultiCam Streaming
With advanced AI capabilities and wide compatibility, OBSBOT Tail Air is the optimal choice for swiftly and affordably building a multi-camera shooting system.
Exclusive App Support
Obsbot Start's interface is designed for simplicity, complemented by thoughtful features that put complete control at your fingertips.
Smart Remote Controller
Make the most of Tail Air' intelligence with its perfect companion - The smart remote control grants you precise control over Tail Air's various features.
Unlock More Features on OBSBOT Cloud
OBSBOT Cloud, a smart, safe platform for neatly managing all your videos, livestreaming to multiple platforms, and minimizing the setup work with preset modes.
| Appearance | OBSBOT Tail Air |
| Size & Weight | Working State: 69.65*73.25*132.5mm |
| Off State: 69.65*73.25*135.5mm | |
| Weight: 344.5g | |
| AI chip | Integrated AI chip, Trillions of calculations per second |
| Camera | Image sensor: 1/1.8'' CMOS |
| Macro pixel size: 2.0μm*2.0μm | |
| Effective pixels: 8.4 million | |
| Effective pixel resolution: 3856x2176 | |
| Lens system: 8 Optical Lenses | |
| Zoom range: 4X digital zoom | |
| ISO range: 100-6400 | |
| Exposure value: ±3EV | |
| Electronic shutter speed: 1/8000 s to the limit of frames per second | |
| Focus: Auto Focus/Manual Focus | |
| Aperture: ƒ/1.8 | |
| Equivalent focal length: 23mm | |
| White balance: 2000K-10000K | |
| Gyroscope: 6-axis Gyroscope | |
| Shooting | Photo resolution: 4K, 1080P |
| Video resolution: 4K@30/25/24 fps, 1080@60/50/48/30/25/24 fps | |
| Max video storage bit rate: H264: 100Mbps, H265: 80Mbps | |
| Video format: MJPEG, H264, H265 | |
| 2-axis gimbal | Gimbal installation: Non-removable |
| Controllable range: Pan: ±150°; Tilt: -65°~32° | |
| Mechanical range: Pan: ±160°; Tilt: ±90° | |
| Max controllable speed: 120°/s | |
| Angle jitter: ±0.02° | |
| Audio | Audio input: Built-in Two MEMS Microphones |
| Built-in 3.5mm TRS Connector (AUX) | |
| Support MIC IN/LINE IN | |
| Audio modes: Noise Reduction/Stereo Sound | |
| Audio format: AAC/PCM | |
| Wi-Fi | Operating frequency: 2.4 G/5.8 GHz |
| Signal transmission range: 2.4G 140m, 5.8G 80m | |
| Transmission power: 2.4 GHz: <18 dBm（FCC/CE/SRRC/MIC） | |
| 5.1 GHz: <15 dBm（FCC/CE/SRRC/MIC） | |
| 5.8 GHz: <15 dBm（FCC/CE/SRRC） | |
| Bluetooth | Bluetooth protocol: BLE 5.0 |
| Bluetooth operation frequency range: 2.400 GHz to 2.4835 GHz | |
| USB | USB: 2.0 |
| Charger & Battery | Input: 5V/2A |
| Quick charge protocol: Don't Support | |
| Charging time: 90 Minutes (Power off status) | |
| Operating time: 154 minutes | |
| *Tested in a laboratory environment while recording 1080p/30fps video and should be used for reference only | |
| Battery type: Lithium Polymer(Li-po) | |
| Battery capacity: 1500mAh | |
| Battery energy: 11.4Wh | |
| Battery voltage: 7.6V | |
| Auxiliary Functions | Gesture Control |
| Auxiliary App | Obsbot Start |
| Memory card type | Memory card type: Micro SD Card (up to 512GB) -exFAT (Recommended)/FAT32; U3 card (minimum write speed 30MB/S) recommended. |
| Operating environment | Camera working environment temperature: -10°C-40°C |
| Battery charging ambient temperature: -10°C-40°C | |
| Battery operating ambient temperature: -10°C-40°C | |
| ⚠ Charging will stop when the battery temperature exceeds 45°C. | |
| For example, when connected to an external power supply, if the battery temperature exceeds 45°C, the camera will stop charging and will be powered directly from the external power supply. |
This product comes with Limited 1-Year Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
OBSBOT Tail Air
USB-C Cable
USB-C to USB-A Adapter
USB-C Male to Dual USB-C Female Splitter
Storage Case
SKU: OBSBOT OBS-OSB-2108-CW
UPC: 6971889230304
