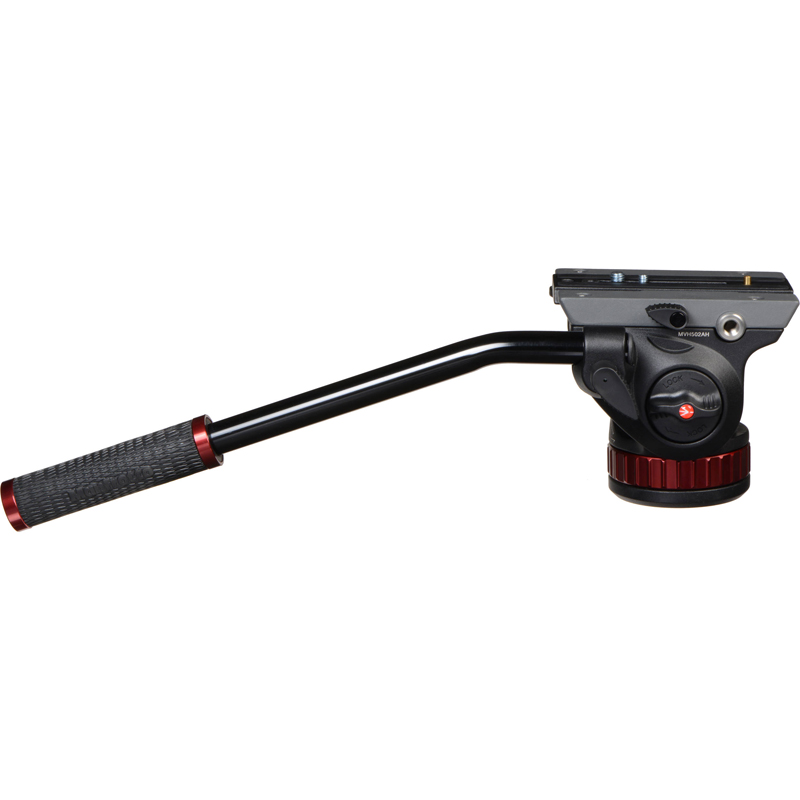

With full smoothness control while shooting thanks to the variable fluid mechanisms, MVH502A is ideal for latest camcorder and HDSLR cameras supplied with external accessories. As light as 1.9 kg but is capable of supporting a heavy payload weight of 7 kg. Thealuminum built head has an independent pan and tilt lock to control the smooth and precise movement of the camera. Its 15 cm working height has leveling bubble to guide you level your camera sight. This Pro video head features 3/8'' female thread attachment type.

Product Features in Detail

sturdy construction
Sturdy construction

weight-saving construction
Materials, design and construction techniques have been carefully selected to help save weight without sacrificing stability or strength

Ergonomic and easy to use
The ergonomic controls are designed for a safer and more enjoyable experience and the anti-shock collar protects your camera from accidental impact.

manfrotto world first
Manfrotto world first

Aluminum construction
Made with a steadfast aluminium construction to improve rigidity and performance

Specification

attaches by.	1/4'' and 3/8'' attachment type
attachment	3/8'' screw attachment type
balance control	one fix spring for 4kg camera weight
bubble spirit level (no.)	1 number
Center Of Gravity	55 mm
Color	black color
Counterbalanced Weight	4 kg
front tilt	-80° / +90° tilt range
head bowl	75mm
independent pan lock	yes
independent tilt lock	yes
material	aluminum
maximum working temperature	60 °C
minimum working temperature	-20 °C
pan bars included (no.)	1 number
pan drag	continuously adjustable from 0 to max level
panoramic rotation	360 degrees
plate type	504PLONG
quick release	yes
Safety Payload Weight	7 kg
secondary safety system	yes
sliding travel of plate	83 mm
spring loaded counter balance	yes
tilt drag	continuously adjustable from 0 to max level
weight	1.9 kg
working height	15 cm

Warranty

This product comes with 2 Years Standard Warranty + an additional 3 Years FREE Extended Warranty Once the product is registered on warranty. manfrotto. com. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

In The Box

MVH502AH Pro Video Head with Flat Base
2 Years Standard Warranty + an additional 3 Years FREE Extended Warranty Once the product is registered on warranty.manfrotto.com
